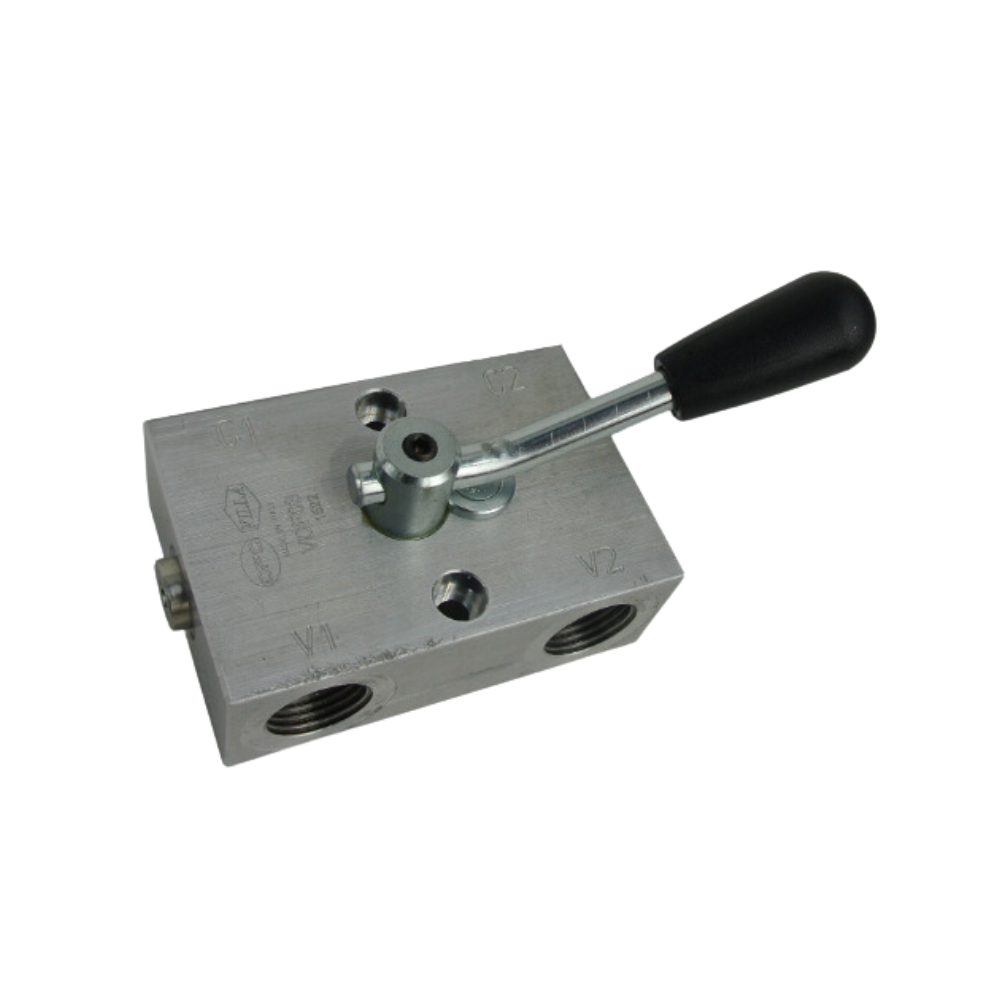

Manually actuated Front end Loader Bucket Float Diverter Valve for Tractor, Bobcat Skid Steer and Track Drive Loaders

This valve is for Front End Loaders, Tractors, Skid Steers and Track Drive machines fitted with a Bucket.

Turning the valve handle will allow a "float" function that allows the cylinder ports to free flow to each other and this can be used to make your machine's bucket follow the ground's contours.

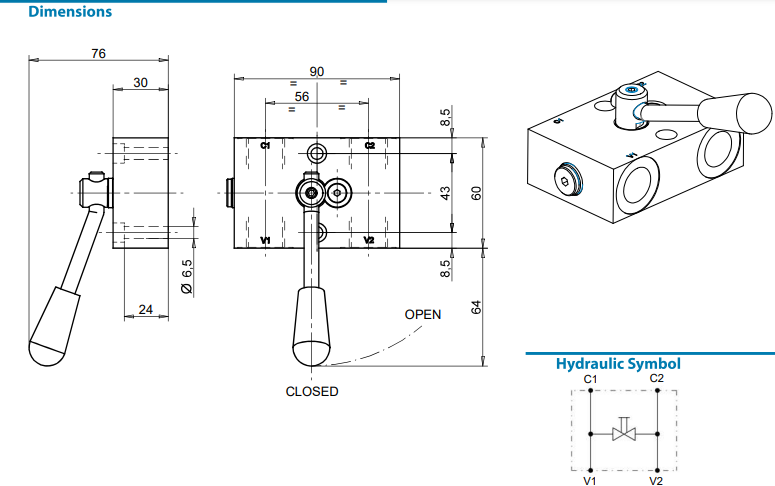

Specifications

• Connection Ports: 1/2" BSPPs
• Working pressure: 210 Bar / 3,100 psi max pressure
• Oil Flow: 35 Lt/min max flow rate
