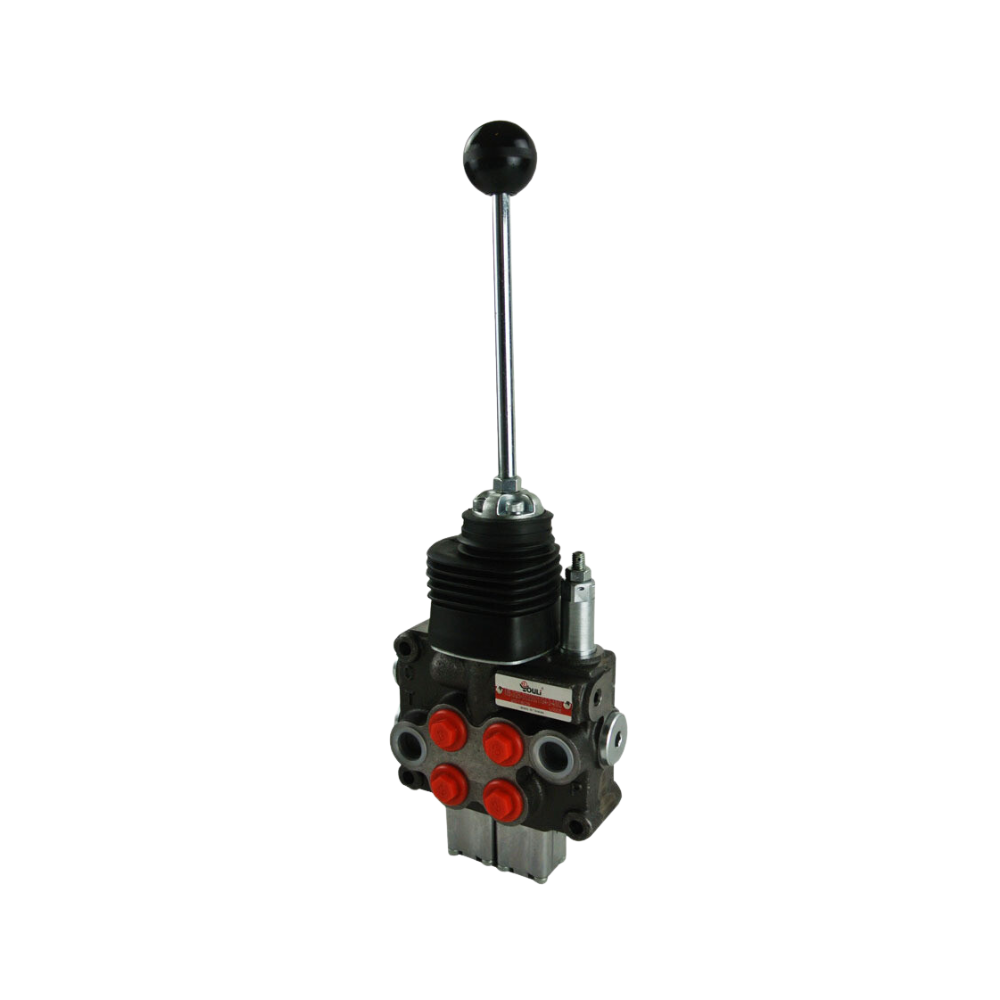

Dual Axis Joystick Controlled 2 Spool Hydraulic Valve available in Two to oil flow volumes 40 Lt/min and 80 Lt/min.

This European made directional control valve: is designed to combine and operate two functions with a single lever,
Move Two Spools and flow oil into and out of 4 Ports while moving only one Joystick type lever.

Perfect for controlling the twin Drive motors on Small machinery, 4-in-1 buckets and augers on Front end Loaders, Tractors and Backhoes,
As well as any application where you need to control 2 individual functions or cylinders.

Two Flow Sizes available: 40 or 80 Lt/min, with 3/8 or 1/2 BSPP working Ports respectively.

These valves are regularly used in hydraulic circuits to divert the flow of high-pressure oil and are typically used to control the speed and movement of hydraulic cylinders or motors.

• Construction = Monoblock
• Material of Construction = Steel
• No of Spools = 2
• Material of Construction = Case Hardened Steel
• O-rings made of NBR (Buna-N®)
• Max Flow Rate = Z50 = 40 Lt/min or Z80 = 80 Lt/min (12 -20 Gallons per Minute)
• Max Working Pressure = 250 Bar (3600 PSI)
• Spool Type = twin Cylinder or Twin Motor Spools are also available
• Built-in Relief Valve = Adjustable (factory set at 1800 PSI)
• Ports Sizes
• Z50 Pressure, Tank and carry over Port 1/2" BSPP, A & B Ports 3/8" BSPP (40 Lt/min)
• Z80 Pressure, Tank and carry over Port 1" BSPP, A & B Ports 3/4" BSPP (80 Lt/min)
• Operating temperature range: -20 °C to + 80°C
• Weight 5 and 8 KG

We also stock Many types of adaptor threads, hydraulic hose, as well as field fit hose fittings.

Please see our other listings.

• Valve Features
• Compact construction.
• Low-pressure drop.
• Long service life.
• High efficiency.
• Choice of various ports and circuit valves.
• Spring return.
• The spool is hardened for long-term accuracy.
