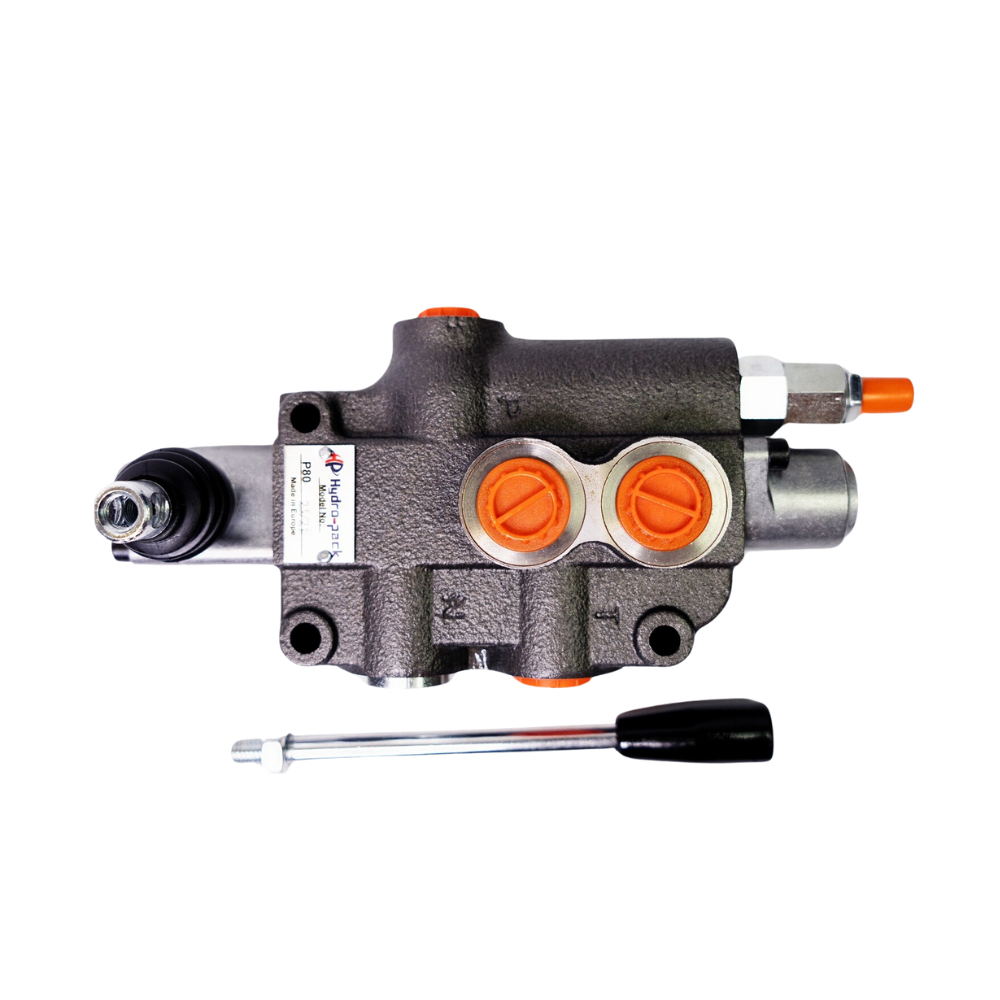

This is a brand-new European made Badestnost brand high-quality valve, it is designed for Front end Loaders, tractors, or any application where you need to control one function or cylinder. It has a 'float' function on one spool with detent, which means your Blade will 'skim' the ground. It is a 'four' position lever, up, down, center plus all the way down is detent 'float'. The oil is open to the tank in this position allowing your blade to rise & fall freely with the contours of the ground. The other two positions will allow up or down & will lock load in the centre position.
Specifications
Construction = Monoblock
Material of Construction = Steel
No of Spools = 1

Left hand inlet
Material of Construction = Case Hardened Steel
O-rings made of NBR (Buna-N®)
Max Flow Rate = 40 liters/min (10 Gallons per Minute)
Max Working Pressure = 315 Bar (4725 PSIBuilt in Relief Valve = Adjustable (factory set at 1800 PSI)
Ports Sizes
Pressure and Tank Port 1/2" BSPP
A & B Ports 3/8" BSPP

Max pressure 250Bar, 3750psi

Relief range;160-315bar, factory set at 220Bar (3300psi)

Operating temperature range: -20 °C to + 80°C
Dimensions = L x W x H = 200 x 120 x 55 mm
Weight 3 KG
Many types of adaptor threads, hydraulic hose, and field fit hose fittings are available please see our other listings.
This is a High-Quality Valve and has many outstanding features, including. a built-in adjustable relief valve
high performance,
high efficiency,
small volume,
mass flow,
leak resistance
In addition to compact size, these control valves have fixed and large pull rods to control direction,
Various control options, manual, automatic, and or remote control methods are also available.
Motor Spool
Detent kit no spring return
Detent kit with spring return
Pneumatic spool control,
Hydraulic Control
Electric-solenoid control
Joystick cable control.
Features
Compact construction.
Low-pressure drop.
Long service life.
High efficiency.
choice of various ports and circuit valves.
Spring return.
the spool is hardened for long-term accuracy.
Sub-plate mounting.
Handle shift operation
