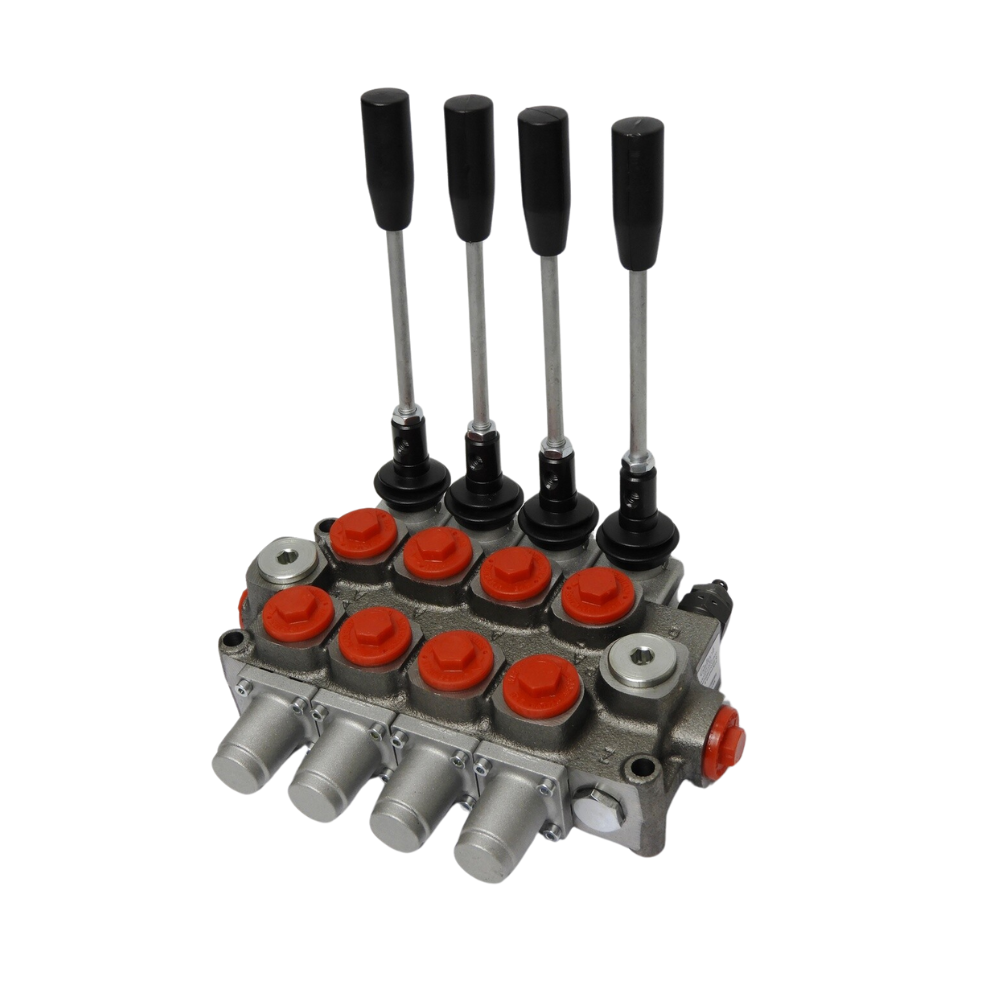

This is a brand new high quality Italian made Galtech Q 75, 4 spool , 80Lpm valve. It is designed for Tilt Tray Trucks, Cranes. Skip Bin Trucks, Front end Loaders, Backhoes or any application where you need to control 1 individual function or cylinder.
These valves are regularly used in hydraulic circuits to divert the flow of high pressure oil and are typically used to control the speed and movement of hydraulic cylinders or motors.
Standard configuration is a double acting cylinder spool with 3 position, spring return to centre lever. Also available with Motor spool, Single acting, detent kits, plus full electric option.
Series Q75.
All sections on these Q-75 monoblock valves are double acting with a three position spring return kit c/w levers and adjustable main relief (81-200 Bar as standard) set at 150 Bar / 2100Psi standard.
Options also include full 12v/24v electrically operated. This valve with electric add ons, will be ready to hook up to a remote control unit.
Power beyond sleeve, gives the option to run a secondary (smaller flow) valve downstream, by turning the 'T' port into a pressure port for additional valve to feed off. With the power beyond sleeve, they are assembled onto the “tank” port of the valve – this allows it to carry through the high pressure. When you assemble this sleeve, you would also have to remove the plug on top of the valve block for use as a tank line.
Technical Data
1/2" BSP service port
1/2" BSP P Ports
3/4" Bspp T Port
Max Flow:90l/min
Max Pressure:300 Bar
Max Tank Pressure: 25 Bar
Operating Temperature: -10°C + 80°C
Specifications
Construction = Monoblock
Material of Construction = Steel
No of Spools = 4
Material of Construction = Case Hardened Steel
O-rings made of NBR (Buna-N®)
Max Flow Rate = 90 liters/min (20 Gallons per Minute)
Max Working Pressure = 300 Bar (4500 PSI)
Spool Type = Cylinder. Motor Spools also available
Spool Movement = Lever action, Spring Return to Center
Built in Relief Valve = Adjustable (factory set at 2200 PSI)
Dimensions. Please refer to photos
Ports Sizes
Pressure Port 1/2" BSPP
Cylinder Ports 1/2" BSPP
Tank Port 3/4" BSPP
Operating temperature range: -20 °C to + 80°C Weight 10 KG
Please send us a message for different spool configurations, spool numbers and costings
This a High Quality Valve and has many outstanding features, including
built in adjustable relief valve
high performance
high efficiency
small volume
mass flow
leak resistance
In additional to compact size, these control valves have fixed and large pull rods to control direction,
Installation ; As per photos, there are a choice of two pressure ports "P" (only use one), two "T"
