Directional Flow Control Valve BSP Ports 3 Spool 80 Lpm Monoblock EUROPEAN MADE

Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves

Product Details

Weight: 9.00 kg

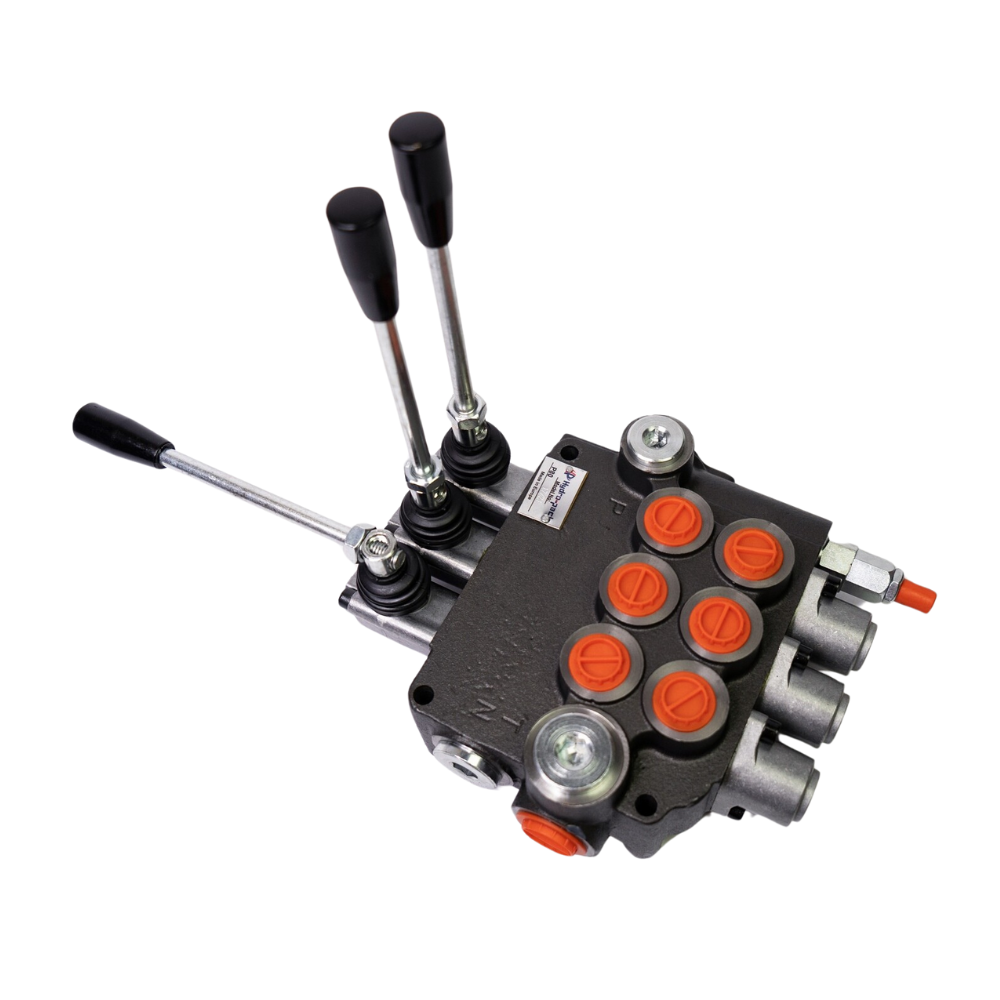

Hydraulic 3 Spool 80Lpm Directional Flow Control Valve Monoblock EUROPEAN MADE

This is a brand new high quality, made in Europe directional control valve, it is designed for any application where you need to control 3 individual functions or cylinders.

These valves are regularly used in hydraulic circuits to divert the flow of high-pressure oil and are typically used to control the speed and movement of hydraulic cylinders or motors.

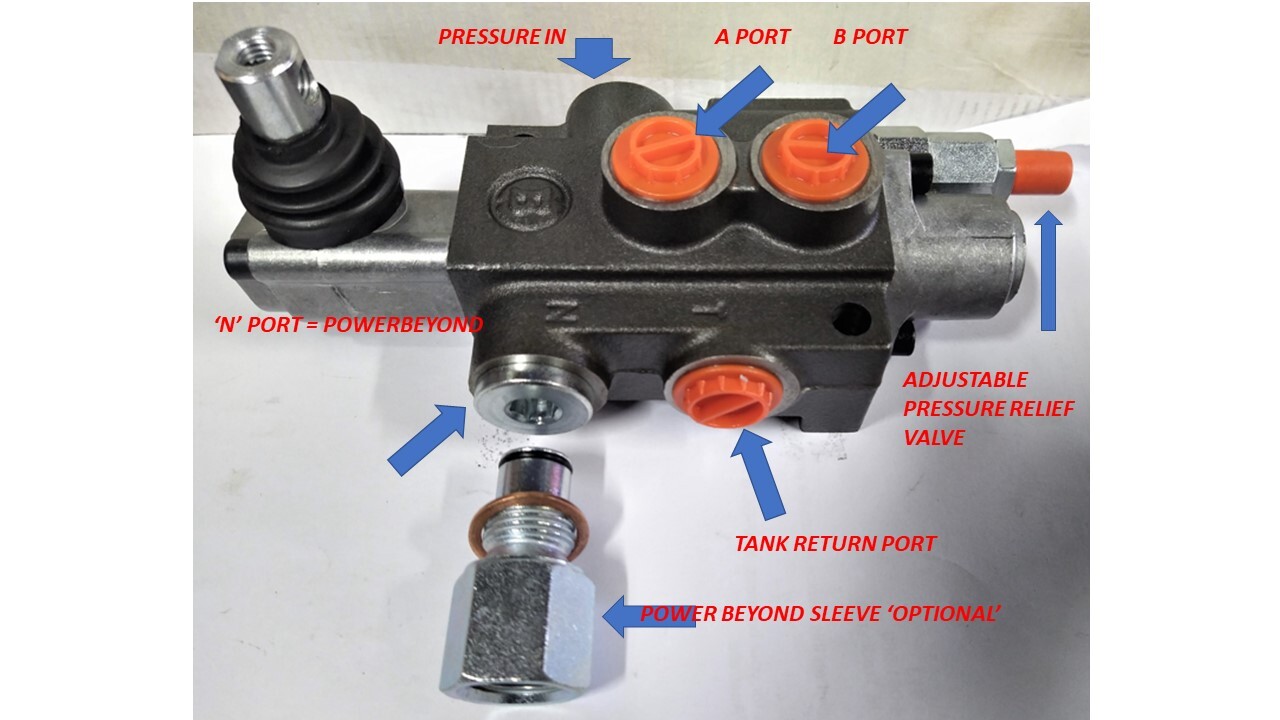

The ports A & B, are 1/2" BSPP, P T & N Ports are 3/4" BSPP thread. There is a 'power beyond' port ('N'), which can be used as a pressure line if you ever wish to mount another valve downstream. There is an option for a power beyond sleeve(3/4" BSPP out) . This needs to be inserted into the power beyond port to make this port open. If using this function, a tank return line MUST still be fitted!

As standard, this DCV comes with a cylinder spool. This is best for use with rams. Also available is a Motor spool. This is best used to run spinning motors, as they will come to a slow halt once lever is back in centre position. The lever action is a spring back to centre one. Ie. you must hold the lever 'On' to flow oil. It then springs back to centre to lock the oil. Another optional extra is 'Detent' This is mostly used for motors. When you pull or push the lever, the lever will stay where pushed, until you pull it back to centre.

Detent (lever stays up or down on its own) can be fitted. See options, price per spool.

Also available; many Detent variations, Micro switches, Joystick X axis controls, Air/pneumatic controls, hydraulic pilot controls

Please call or message us for multiple Detents, Motor spools etc. We will send you a 'custom' quote

Specifications

Construction = Monoblock

Material of Construction = Steel

No of Spools = 3

Material of Construction = Case Hardened Steel

O-rings made of NBR (Buna-N®)

Max Flow Rate = 80liters/min

Max Working Pressure = 315 Bar (4750 PSI)

Spool Type = Cylinder. #Motor Spools also available

Spool Movement = Lever action, Spring Return to Center.

Detent Kits also available

Built in Relief Valve = Adjustable (factory set at 1800 PSI)

Ports Sizes

Tank return Port 3/4" BSPP

Pressure A & B , P Ports 1/2 " BSPP

Operating temperature range: -20 °C to + 80°C

Dimensions =

Weight 9kg

Please call 0755631982, or send us a question for different spool configurations, spool numbers and costings.

Many types of adaptors threads, hydraulic hose and field fit hose fittings are available please see our other listings.

This a High Quality Valve and has many outstanding features, including.

built in adjustable relief valve
high performance,
high efficiency,
small volume,
mass flow,
leak resistance.

In additional to compact size, these control valves have fixed and large pull rods to control direction,

Various control options, manual, automatic and or remote control methods are also available including.

Motor Spool
Detent kit no spring return
Detent kit with spring return
Pneumatic spool control,
Hydraulic ControlFeatures

Compact construction.
Low pressure drop.
Long service life.
High efficiency.
Choice of various ports and circuit valves.
Spring return.
High accuracy spool is hardened for long term accuracy.
Sub-plate mounting.
Handle shift operation.
IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
