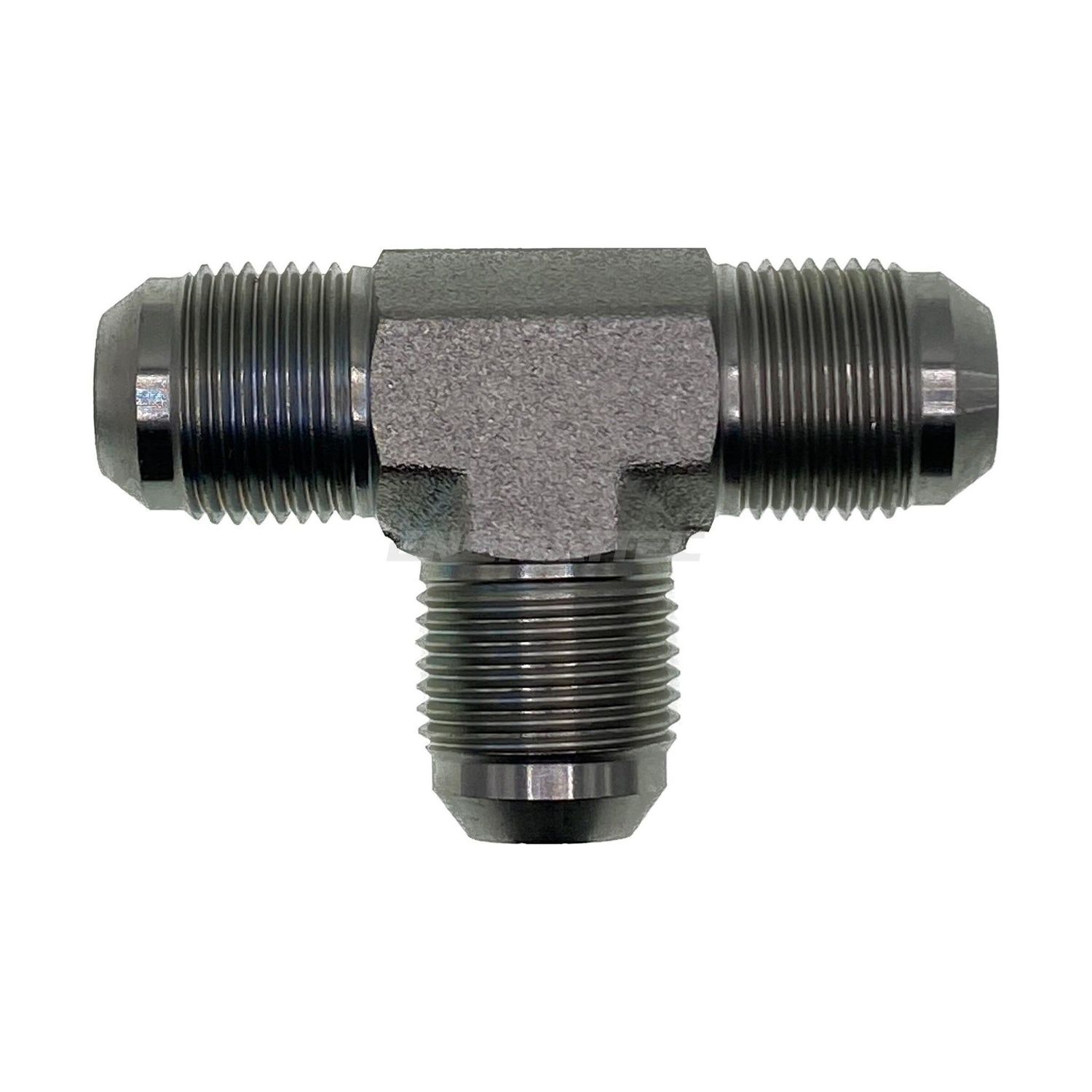

JIC 37° Male Equal Tee

Three JIC 37° male ports. The standard JIC tee, and one of the highest-turnover tees on the shelf.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.

How to Choose

• All three ports are the same size and thread, so it does not matter which way the tee goes in.
• All three ports seal metal to metal on the 37° cone. No tape, no sealant, no O-ring.
• Watch for 45° flare in the same machine. A 45° female pulled onto a 37° cone will hold on test then fret out.

Technicians Advice

Three cone faces to wipe before assembly. A JIC pulled up with grit on the seat leaves a witness ring, and once it is there the joint seeps every time the oil warms and thins.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	S1	C	Material	Finish
JIM-JIM-JIM-070707	7/16" JIC	7/16" JIC	11.1mm	7/16" JIC	Mild steel	Plated finish
JIM-JIM-JIM-080808	1/2" JIC	1/2" JIC	14.3mm	1/2" JIC	Mild steel	Plated finish
JIM-JIM-JIM-090909	9/16" JIC	9/16" JIC	14.3mm	9/16" JIC	Mild steel	Plated finish
JIM-JIM-JIM-121212	3/4" JIC	3/4" JIC	19.1mm	3/4" JIC	Mild steel	Plated finish
JIM-JIM-JIM-141414	7/8" JIC	7/8" JIC	22.2mm	7/8" JIC	Mild steel	Plated finish
JIM-JIM-JIM-171717	1.1/16" JIC	1.1/16" JIC	27.0mm	1.1/16" JIC	Mild steel	Plated finish
JIM-JIM-JIM-212121	1.5/16" JIC	1.5/16" JIC	33.3mm	1.5/16" JIC	Mild steel	Plated finish
JIM-JIM-JIM-262626	1.5/8" JIC	1.5/8" JIC	41.3mm	1.5/8" JIC	Mild steel	Plated finish
JIM-JIM-JIM-090912	9/16" JIC	9/16" JIC	19.1mm	3/4" JIC	Mild steel	Plated finish
JIM-JIM-JIM-121214	3/4" JIC	3/4" JIC	22.2mm	7/8" JIC	Mild steel	Plated finish
JIM-JIM-JIM-121217	3/4" JIC	3/4" JIC	19.1mm	3/4" JIC	Mild steel	Plated finish
JIM-JIM-JIM-212117	1.5/16" JIC	1.5/16" JIC	33.3mm	1.1/16" JIC	Mild steel	Plated finish
JIM-JIM-JIM-303030	1.7/8" JIC	1.7/8" JIC	47.6mm	1.7/8" JIC	Mild steel	Plated finish
JIM-JIM-JIM-404040	2.1/2" JIC	2.1/2" JIC	63.5mm	2.1/2" JIC	Mild steel	Plated finish

Key: S1 hex across flats 2, C across corners. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
