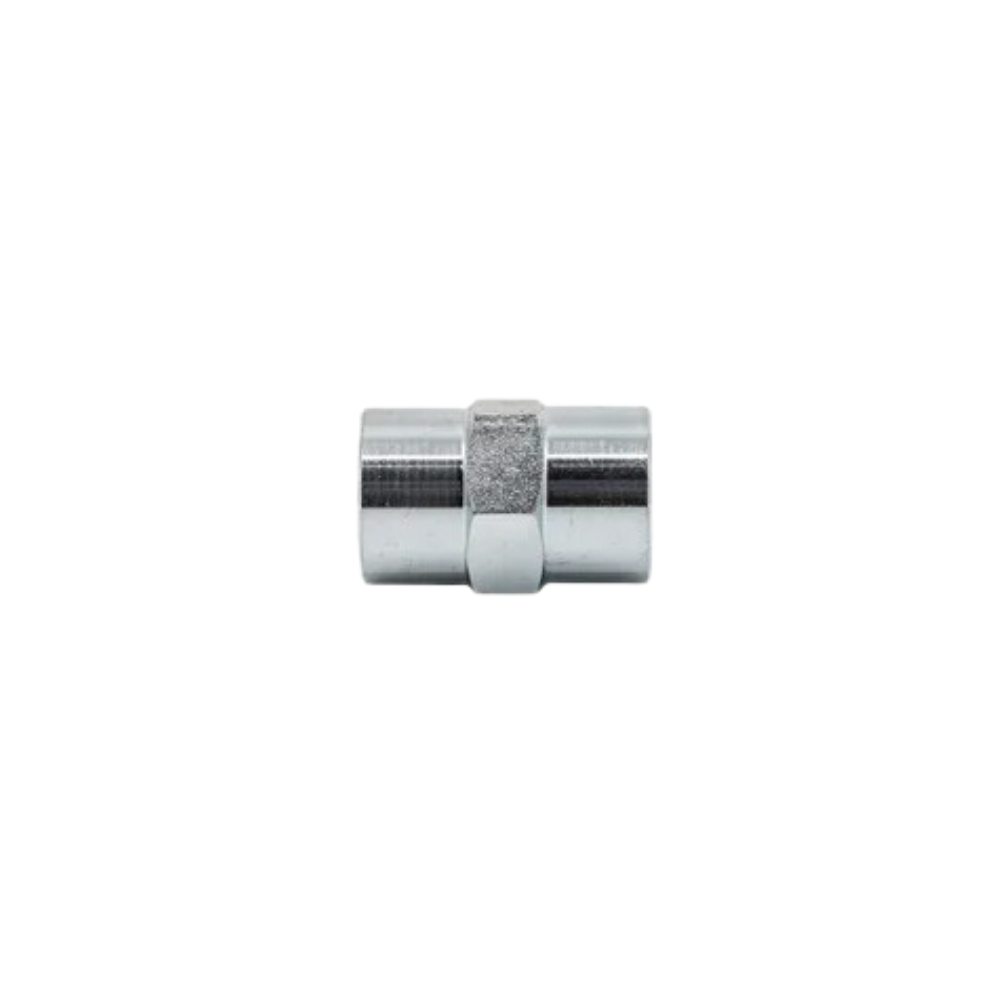

BSP Parallel Female x BSP Parallel Female Straight Socket

Parallel BSP female both ends. The plain socket for joining two BSPP male fittings back to back, or for extending a run without changing thread standard.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Parallel Female – BSPP to ISO 228. It needs a bonded washer or a cone seat to seal, because a parallel thread cannot seal on itself.

How to Choose

• A parallel female does not seal on the thread. Each male going in needs a bonded washer or a 60° cone seat.
• Do not wind a BSPT tapered male into it. A tapered male bottoms part way and leaves a gap you cannot close with torque.
• Equal and unequal sizes are stocked, so check both males rather than assuming they match.

Technicians Advice

Two joints in one part means two seals to get right, and the one at the back is the one people forget. Fit a fresh bonded washer on each male and make sure both faces are clean and square before you wind them down.

Where You’ll Find It

• BSP Parallel Female – Female side of BSPP manifolds, adaptor blocks and gauge assemblies on local equipment.

Cross-Reference

• BSP Parallel Female – BSPP to ISO 228 / BS 2779, written G.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	L	H1	Material	Finish
BPF-BPF-0202	20mm	14mm	Mild steel	Plated finish
BPF-BPF-0404	30mm	19mm	Mild steel	Plated finish
BPF-BPF-0606	30mm	22mm	Mild steel	Plated finish
BPF-BPF-0808	38mm	27 mm	Mild steel	Plated finish
BPF-BPF-1212	42mm	36mm	Mild steel	Plated finish
BPF-BPF-1616	50mm	41mm	Mild steel	Plated finish
BPF-BPF-2020	55mm	50mm	Mild steel	Plated finish
BPF-BPF-2424	55mm	60mm	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
