JIC 37° Male x JIC Swivel Female x JIC 37° Male Run Tee

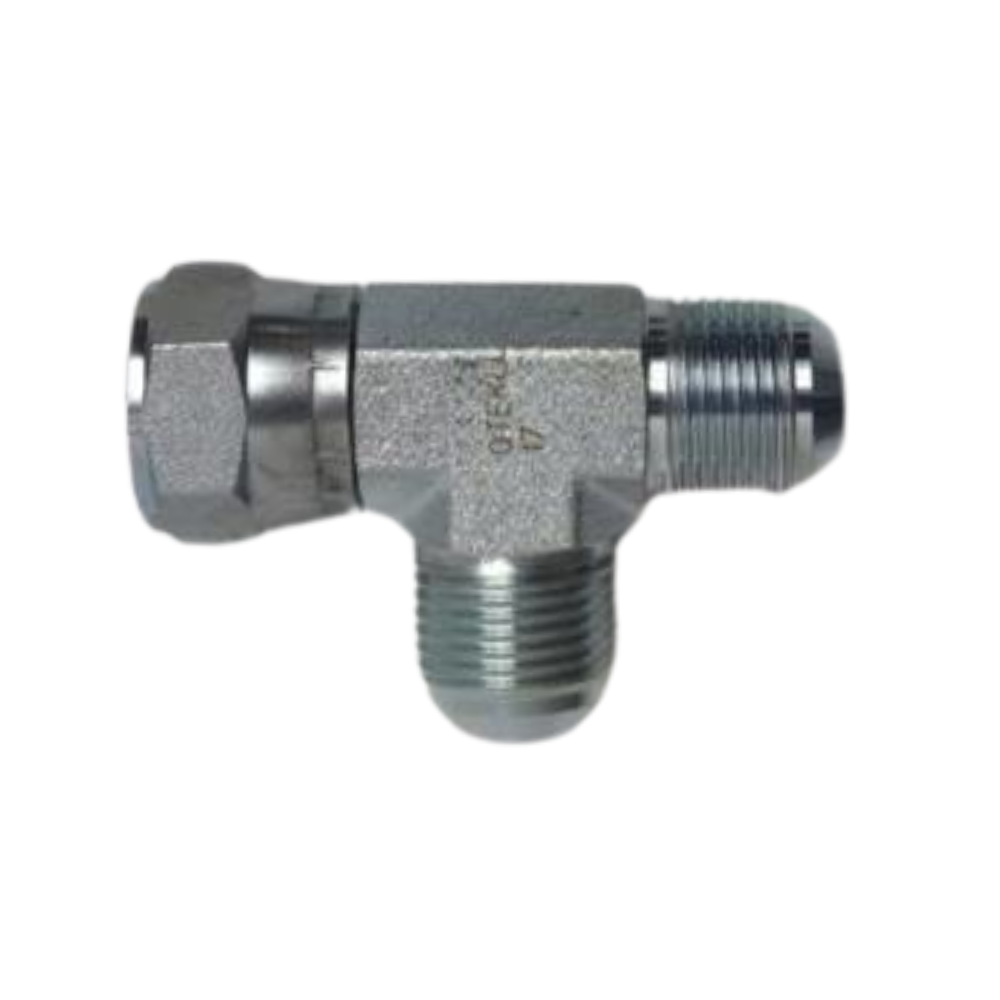

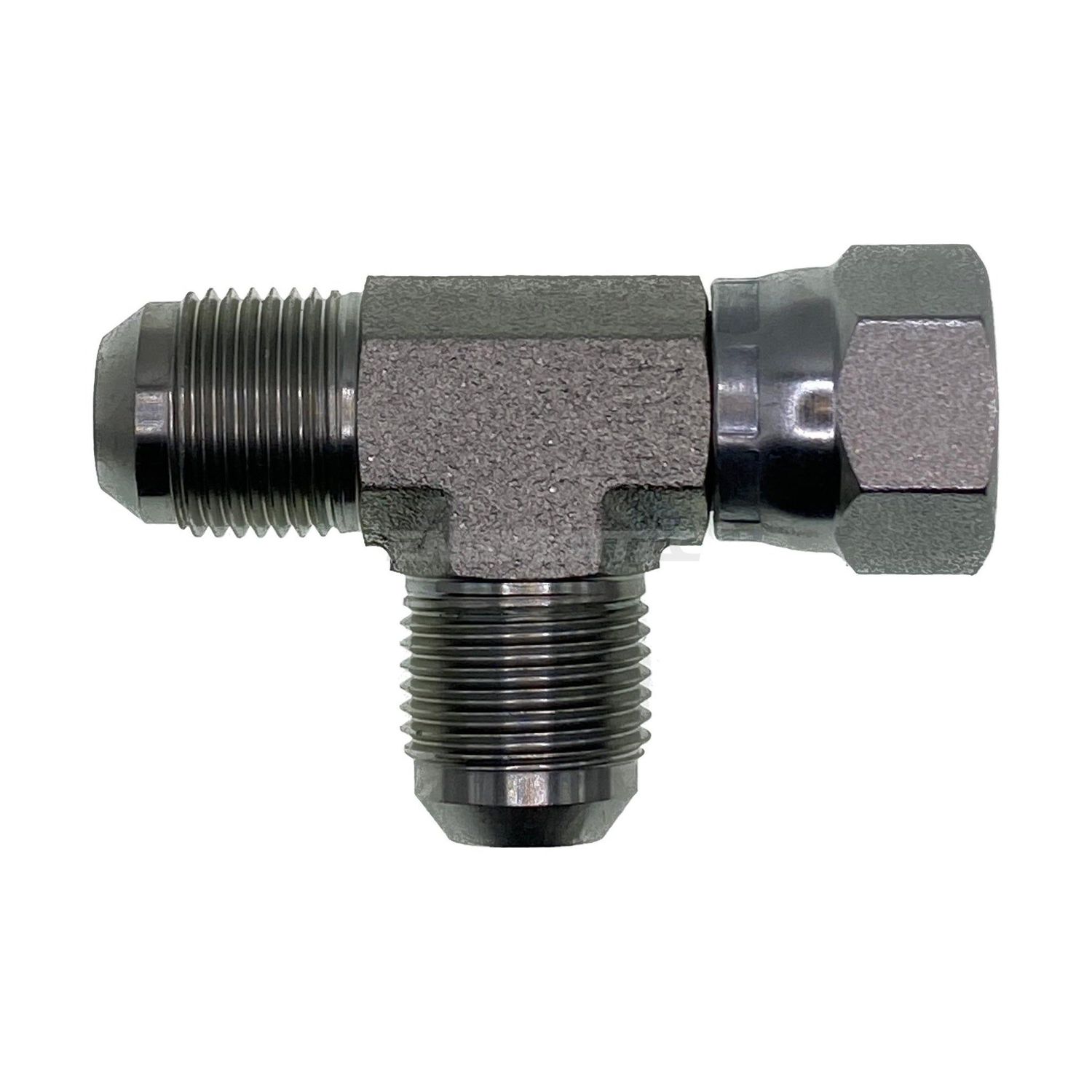

A JIC swivel female in the middle with a JIC male at each end. All-JIC run tee, with the take-off free to turn.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.
• JIC 37° Swivel Female – SAE J514 37° flare. It seals on the 37° cone seat and swivels, so the hose is never wound up during assembly.

How to Choose

• On a run tee the odd port sits in the middle of the run and the two matching ports are the ends. It is the opposite layout to a branch tee, so check which one the job needs before you order.
• All three ports work on the 37° cone. No tape, no sealant.
• The swivel middle turns as you tighten, so the hose coming off is never wound up.

Technicians Advice

Three cone faces to wipe, and do it on the bench. The port you cannot reach once the tee is mounted is the one that seeps.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.
• JIC 37° Swivel Female – Hose ends on imported machinery, where the swivel lets the assembly be fitted without winding up the hose.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.
• JIC 37° Swivel Female – SAE J514 / ISO 8434-2 37° flare. Parker series Triple-Lok.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	H	S1	C	Material	Finish
JIM-JIF-JIM-070707	7/16" JIC	7/16" JIC	14.3mm	11.1mm	7/16" JIC	Mild steel	Plated finish
JIM-JIF-JIM-090909	9/16" JIC	9/16" JIC	17.5mm	14.3mm	9/16" JIC	Mild steel	Plated finish
JIM-JIF-JIM-121212	3/4" JIC	3/4" JIC	22.2mm	19.1mm	3/4" JIC	Mild steel	Plated finish
JIM-JIF-JIM-141414	7/8" JIC	7/8" JIC	25.4mm	22.2mm	7/8" JIC	Mild steel	Plated finish
JIM-JIF-JIM-171717	1.1/16" JIC	1.1/16" JIC	31.8mm	27.0mm	1.1/16" JIC	Mild steel	Plated finish
JIM-JIF-JIM-212121	1.5/16" JIC	1.5/16" JIC	38.1mm	33.3mm	1.5/16" JIC	Mild steel	Plated finish
JIM-JIF-JIM-262626	1.5/8" JIC	1.5/8" JIC	50.8mm	41.3mm	1.5/8" JIC	Mild steel	Plated finish
JIM-JIF-JIM-080808	1/2" JIC	1/2" JIC	15.9mm	14.3mm	1/2" JIC	Mild steel	Plated finish
JIM-JIF-JIM-121217	3/4" JIC	3/4" JIC	22.2mm	27mm	1.1/16" JIC	Mild steel	Plated finish
JIM-JIF-JIM-141714	7/8" JIC	1.1/16" JIC	31.8mm	27.0mm	7/8" JIC	Mild steel	Plated finish
JIM-JIF-JIM-303030	1.7/8" JIC	1.7/8" JIC	57.2mm	47.6mm	1.7/8" JIC	Mild steel	Plated finish
JIM-JIF-JIM-404040	2.1/2" JIC	2.1/2" JIC	76.2mm	63.5mm	2.1/2" JIC	Mild steel	Plated finish

Key: H centre to face, S1 hex across flats 2, C across corners. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
