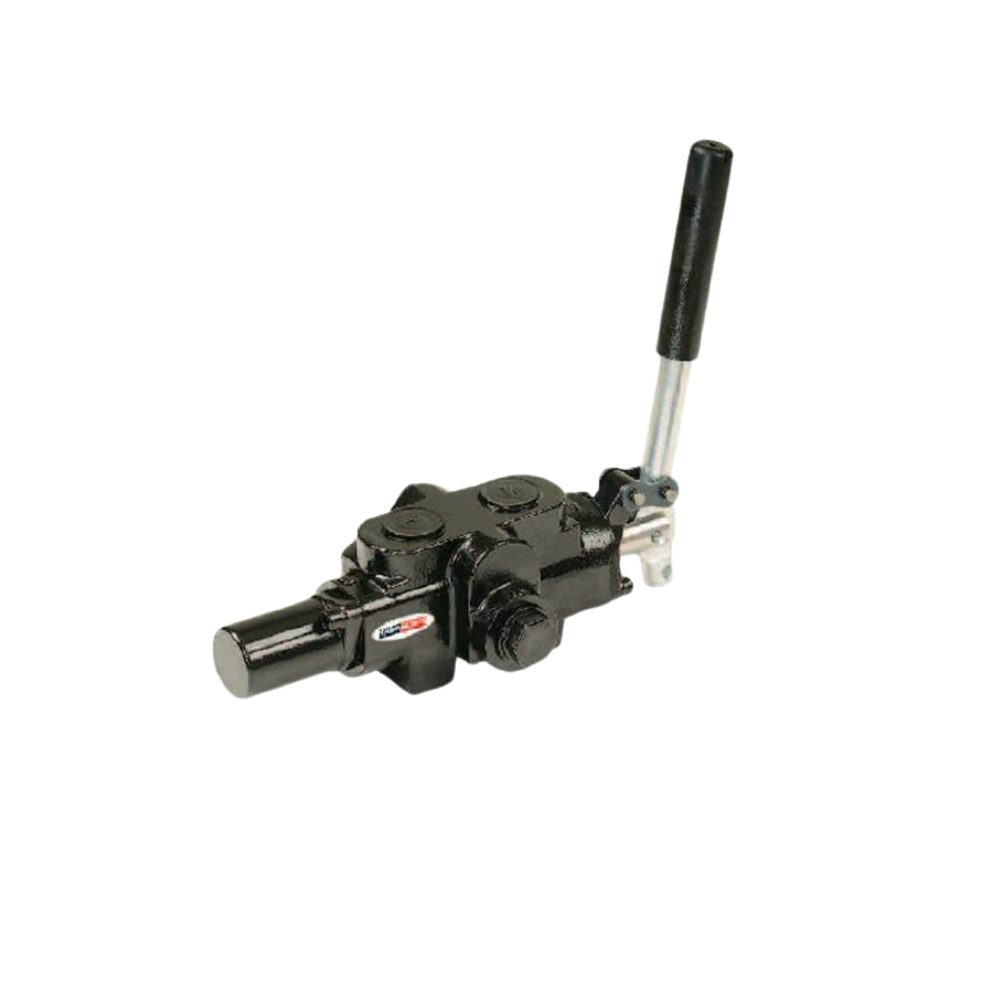

Log splitter Control Valve 120lpm Spring Centre / Hydraulic Kick Off
This Is A Brand New High-Quality Valve, It Is Designed For Log Splitters. It Has Spring Centre / Hydraulic Kick-Off. This Means That Once The Lever Is Depressed It Will Operate Until It Is Released At Which Point It Will Spring Back To the Center And The Cylinder Will Stop Moving. At The Bottom Of The Cylinder Stroke, The Lever Is The Put Into The Retract Position, It Will Be Held There By The Detent The Cylinder Is Fully Retracted, At This Point, It Will "Kick-Off" Ready To Split The Next Log. Pulling lever down is the detent direction. It Has An Adjustable Relief Valve Preset To 2250psi. Kick-Off Pressure Is Set To 800psi, Max Pressure Is 3265psi. These Valves Are Widely Copied, & Are Often Interchangeable. The Lever Is Able To Be Rotated 180° If Desired.
Specifications
Construction = Monoblock
Material Of Construction = Steel
No Of Spools = 1
Material Of Construction = Case Hardened Steel
O-Rings Made Of Nbr (Buna-N®)
Max Flow Rate = 120 Liters/Min (18 Gallons Per Minute)
Max Working Pressure =3260 Psi
Spool Type = Cylinder.
Spool Movement = Lever Action, Spring Centre / Hydraulic Kick Off
Built In Relief Valve = Adjustable (Factory Set At 2250psi)
Ports Sizes
Pressure And Tank Port 3/4" Bsp
A & B Ports 1/2" Bsp
Operating Temperature Range: -20 °C To + 80°C
Dimensions =As Per Photos
Weight 4.5 Kg
