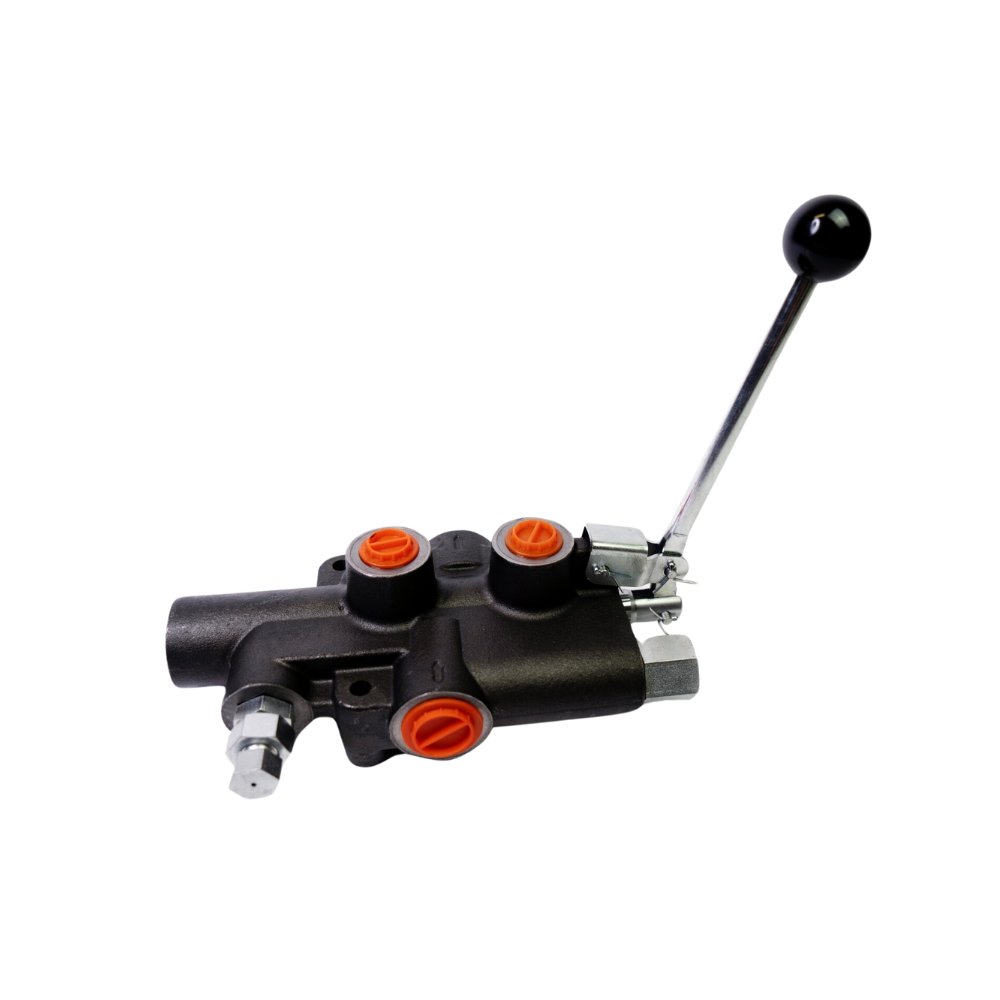

Log splitter Control Valve 80lpm Spring Centre / Hydraulic Kick Off
This is a brand new high-quality Badestnost brand, European-made 80 pm valve, it is designed for log splitters. It has SPRING TO CENTRE / HYDRAULIC KICK OFF. This means that you hold the lever on to split, but you can then push the lever fully back, & it will 'Detent', stay on, whilst the ram retracts, at which point it auto stops ready for the next cycle. This frees you up to remove & replace wood. Connect B Port to Rod End of Cylinder.A port to base port of ram.
It has an adjustable relief valve preset to 2250psi. It can be adjusted up to a max of 3500 psi.
Kick-off pressure is set to 800psi,(do not adjust). Designed to be used with a Hi Lo two stage pump

Max pressure is 3265psi. The handle is able to be rotated 180°
Specifications
Construction = Monoblock
Material of Construction = Steel
No of Spools = 1
Material of Construction = Case Hardened Steel
O-rings made of NBR (Buna-N®)
Max Flow Rate = 80 liters/min (18 Gallons per Minute)
Max Working Pressure =3260 PSI
Spool Type = Cylinder.
Spool Movement = Lever action, spring center / hydraulic kickoff
Built-in Relief Valve = Adjustable (factory set at 2100 psi)
Ports Sizes
Pressure and Tank Port 3/4" BSP
A & B Ports 1/2" BSP
Operating temperature range: -20 °C to + 80°C

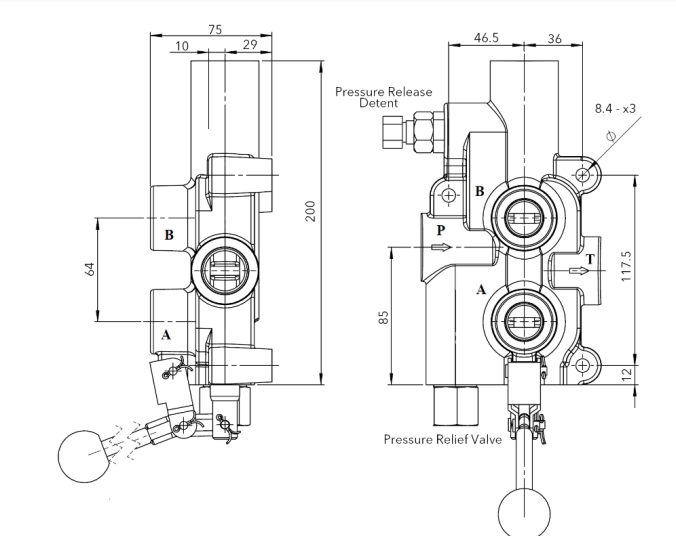

Dimensions = L x W x H = 200 x 120 x 55 mm
Weight 4.5
