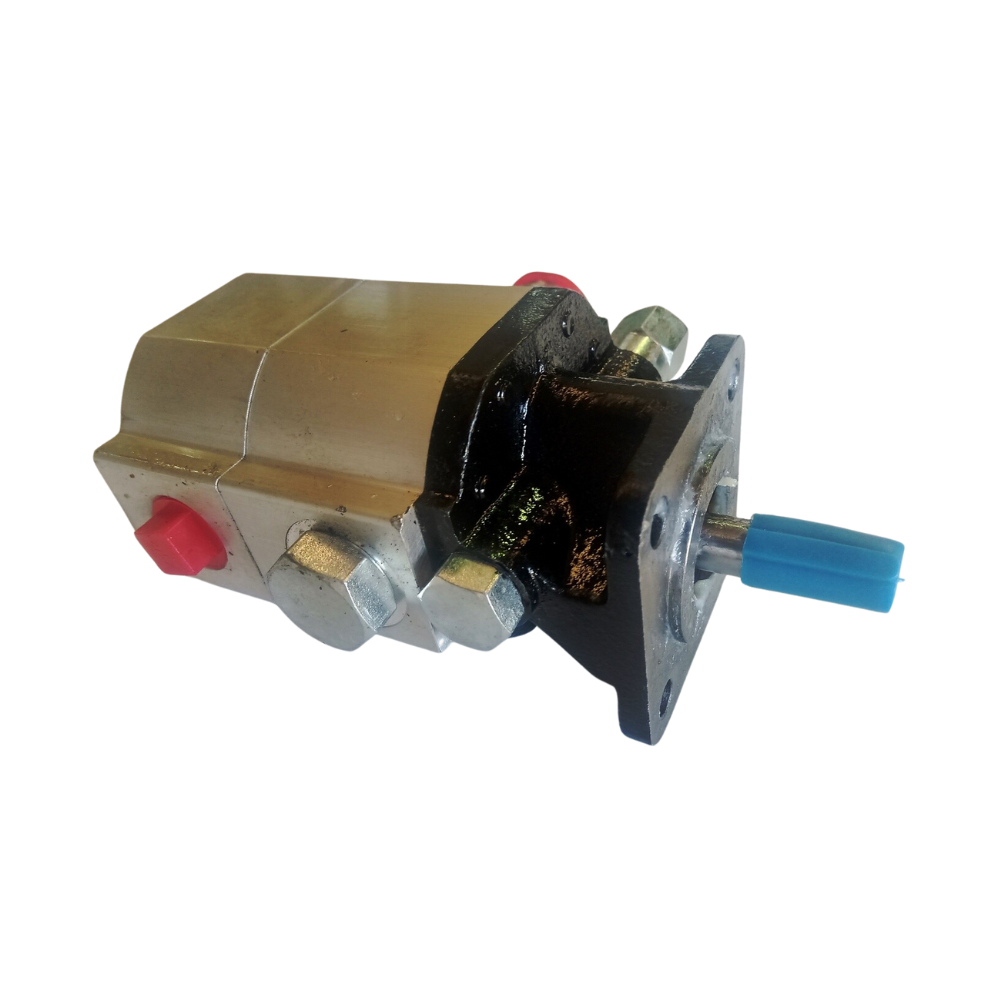

Hi-Lo Log Splitter Pump two Models Available

5 Hp model flows at 3,500 Rpm flows 35 Lt/min at Lo flow with 60 bar (800 psi) and 12 Lt/min at Lo flow at 210 bar (3,000 psi)

10 Hp model flows at 3,500 Rpm flows 45 Lt/min at Lo Flow 60 bar (800 psi) and 14.7 Lt/min at Lo flow at 210 bar (3,000 psi)

These are high-quality alloy body hydraulic log splitter pumps.
This pump is a Hi-Lo unit, which means it closes your blade quickly, then produces maximum PSI to split the wood.
It is rated to 3,600 RPM max.

These pumps require a minimum of 5 HP or 10Hp from your motor.
It will do up to 3000 psi max pressure, which will give your Ram the most tonnage possible.

Tonnage depends on the Bore of the ram you have.
For example, a 4" bore ram will produce 16 tonnes @ 3000 psi,
whilst a 5" bore ram will produce 26 tonnes @ 3000 psi

Both Pumps have: a 1/2" Straight Keyed input shaft and a four bolt mounting flange 50.8mm (2") centers & the round locating / centering 'spigot' measures 45.25 mm in diameter.

Both Pumps come with: a 1" suction barb & have 1/2" NPT (1/2" BSPT is same thread) pressure discharge port.

Both pump models have 1/2" straight keyed shaft.

We do have a listing for a bell housing to suit a 3/4" Honda-type engine, Please see listing below.

Pump Bell Housings for Honda Engines
