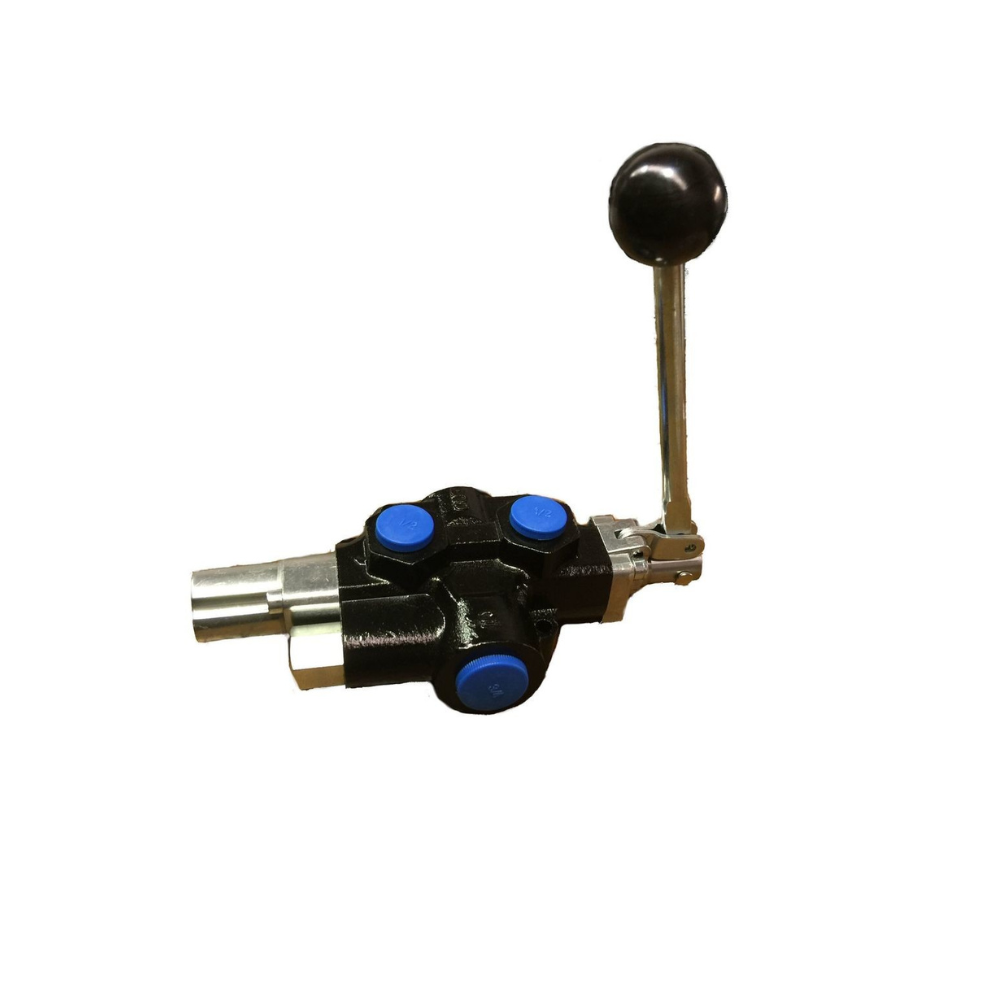

Log splitter Control Valve 80lpm Spring Centre / Hydraulic Kick Off

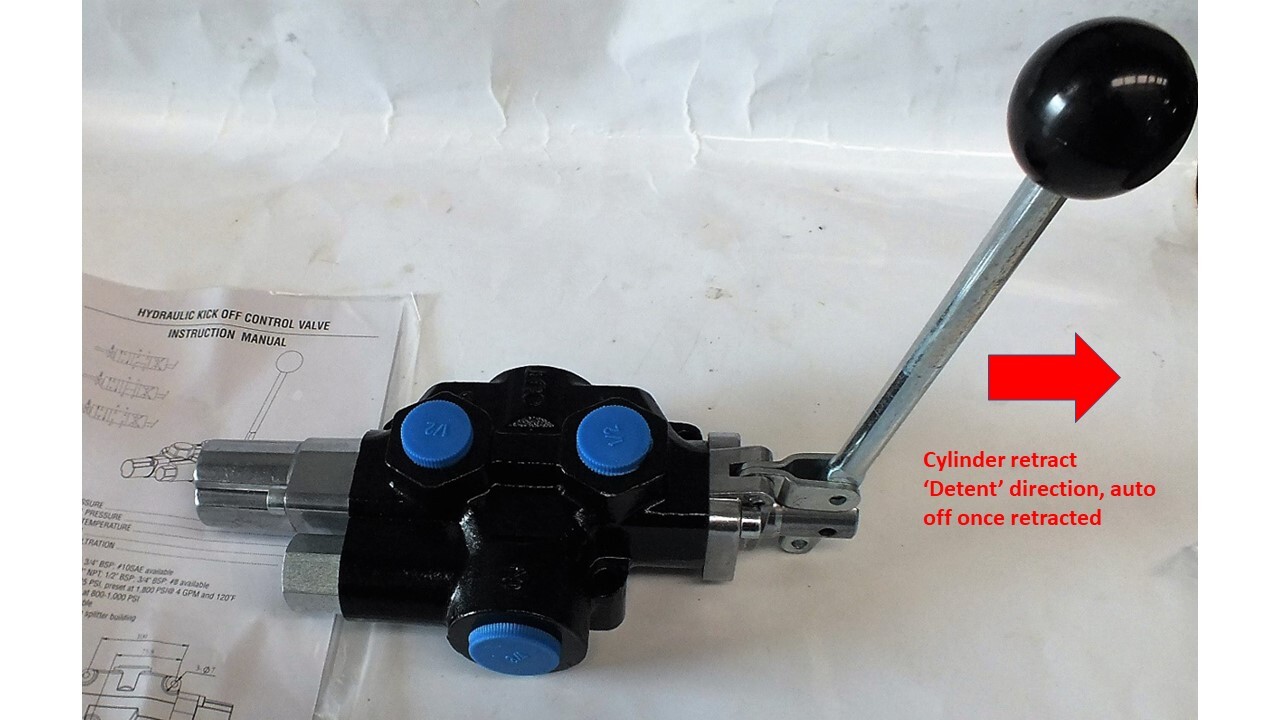

This is a brand new high-quality 80 pm valve, it is designed for log splitters. It has a SPRING CENTRE / HYDRAULIC KICKOFF. This means that once the lever is pulled for retract it will operate until it is released at which point it will spring back to the center and the cylinder will stop moving. At the bottom of the cylinder stroke, the lever is put into the retracted position, it will be held there by the detent until the cylinder is fully retracted, at this point, it will "kick off" and be ready to split the next log. The cutting stroke must be held 'on' for safety. ie must hold lever down. It has an adjustable relief valve preset to 2250psi, easily adjusted up to 3000psi with an alan key. Kick-off pressure is set to 800psi, Max pressure is 3265psi. The handle is able to be rotated 180°
Specifications
Construction = Monoblock
Material of Construction = Steel
No of Spools = 1
material of Construction = Case Hardened Steel
O-rings made of NBR (Buna-N®)
Max Flow Rate = 80 liters/min (18 Gallons per Minute)
Max Working Pressure =3260 PSI
Spool Type = Cylinder.
Spool Movement = Lever action, spring center / hydraulic kickoff
Built-in Relief Valve = Adjustable (factory set at 2250PSI)
Ports Sizes
Pressure and Tank Port 3/4" BSP
A & B Ports 1/2" BSP
Operating temperature range: -20 °C to + 80°C
Dimensions = L x W x H = 200 x 120 x 55 mm
Weight 3 KG>

Please send us a message for more information.
