Half Couplers Log Splitter to Suit 1/2 or 5/8 and 1-inch Shafts

Name: Log Splitter Drive Couplers & Flex Drive Elements
SKU: Half Coupler Hi Lo
Price: 125.0 AUD
Availability: InStock

Store/Log Splitter Pumps & Valves

SKU Half Coupler Hi Lo

AU$125.00

🔥 EOFY SALE!

Size

29mm OD. Lovejoy 1/2" x 3/4" keyed set (+AU$120.00)

65mm OD, 1/2" x 3/4" keyed set , NS65PD62 + ND65H4D22

65mm OD, 1/2" x 1" keyed set NS65PD62+ND65MC35

5/8" x 3/16" keyed x 1" keyed HC315L22 + HC325N45 (+AU$20.00)

5/8" x 5/32" keyed x 1" keyed HC515L35+ HC325N45 (+AU$30.00)

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Half Couplers Log Splitter to Suit 1/2 or 5/8 and 1-inch Shafts

Store/Log Splitter Pumps & Valves

Product Details

Weight: 1.00 kg

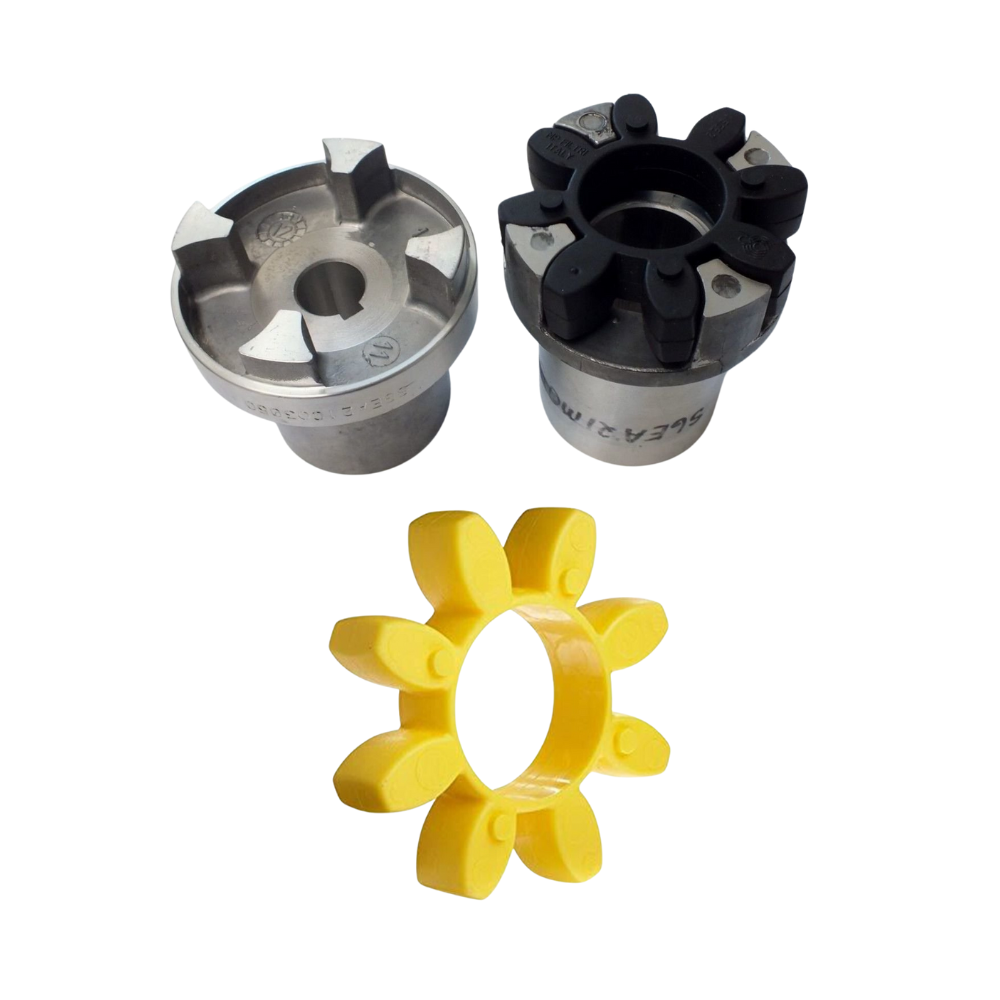

Pair of Aluminium Drive Shaft Couplers, Half Couplers or Curved Jaw Couplers
Used for smooth Transmission of Rotating Power up to 3,000 RPM and 4.0 kW.
Two options for HiLo wood splitter pumps

Will fit 1/2" pump input shaft (for example a HiLo log splitter pump) to 3/4" or 1" engine output Shaft.

5/8" x 3/16" keyed (4.76mm) to 1" x 1/4" keyed motor side

Many other different shaft bore configurations also available
Including 1:8 taper, 5/8 and 7/8 straight keyed

These Curved Jaw Drive Couplings also come with a Synthetic rubber Drive Element (or Spider) that will allow for smooth and quiet power transmission.

If using our BF4 5Hp HiLo pump bell house, you need small OD couplers. We offer Lovejoy brand for this size combo

# Lovejoy, 1/2" straight keyed, to 3/4" straight keyed with spider 29mm OD

If using a larger Bell house we offer

The 1/2" Drive coupler half has a 3.18mm / 1/8" Keyway, 65mm OD , NS65PD62

3/4" straight keyed x 4.76mm key, 65mm OD , 65mm long (together)ND65H4D22

or the 1" Motor / Engine side half coupler has a 6.35mm / 1/4" Keyway 65mm OD, 85mm long (together)ND65MC35

or 5/8" x 3/16" keyed (4.76mm) most larger Hi Lo pumps ( # 5/32" , 4mm key available )

Material of Construction
Drive Couplers = Aluminium Alloy
Flexible Drive Element = Synthetic Rubber (NBR) or Polyurethane

***DISCLAIMER***

IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO THE INSTALLATION AND OPERATION OF EQUIPMENT.
