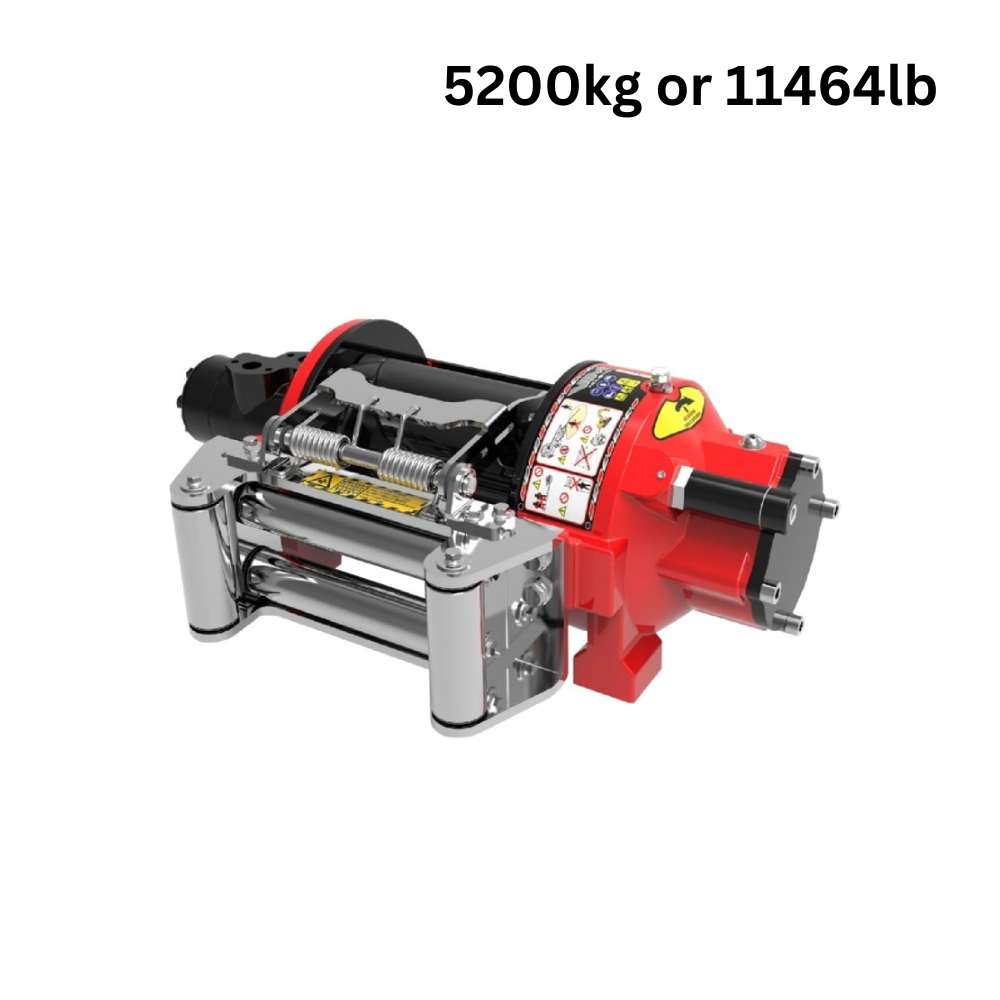

Main image of 12,000 Lbs hydraulic winch, front view showing Heavy-duty roller fairlead fitted with a Cable tensioner

+10

Hydraulic Winch, Tilt Trays Tow Trucks 5,200 kg, 30m cable - Planetary Gearbox

Name: Hydraulic Winch, 5,200 kg Pull, 30 m cable, Italian Quality
Brand: VIME Italy
SKU: WI-12000LB-VIME
Price: 3371.94 AUD
Availability: InStock

Store/Winches Heavy Duty Hydraulic Cable for Tilt Trays and Tow Trucks

SKU WI-12000LB-VIME

AU$3 371.94

🔥 EOFY SALE!

was ~~AU$5 240.00~~ Save 36%

Add Options

Add Spring Loaded Cable Roller and Tensioner (+AU$320.00)

Add Roller Fairlead (Guides Cable In & Out of Drum) (+AU$475.00)

Add Cable 12mm x 30m with Eye & Hook fully certified to Australian standards (+AU$876.00)

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Hydraulic Winch, Tilt Trays Tow Trucks 5,200 kg, 30m cable - Planetary Gearbox

Store/Winches Heavy Duty Hydraulic Cable for Tilt Trays and Tow Trucks

Product Details

Brand: VIME Italy

Weight: 55.00 kg

Hydraulic Winch with 11,464 lbs ( 5,200 kg) Line pull, 30 metres of 12 mm High Tensile Steel Cable Air Clutch and Heavy Duty Planetary Gear.

The EPH 5200 Hydraulic Planetary Winch offers a pulling capacity of 5,200 kg (11,464 lbs), built for durability and high performance. With a compact, lightweight aluminium body and a single-stage hardened steel planetary gear train, this winch is designed for industrial applications requiring efficiency and reliability. Certified to SAE J706 and CE Machinery Directive standards, it ensures safety and superior functionality.

Certified to SAE J706 Meaning

Designed for Intermittent Use: Primarily intended for occasional pulls and lifts.
Personnel Safety: Not intended for the movement of personnel.
Automatic Safety Brake: Equipped with a brake to control loads during lowering and hold them when hydraulic power is off or fails.
Free-Spooling Clutch : May have a clutch for free-spooling, but it should not disengage under load.
Drag Brake (Optional): May have a drag brake to control free-spooling, but it's not a primary load-holding mechanism.
Hydraulic Flow Control (Optional): May use a hydraulic flow control valve to regulate lowering speed.
Versatile Power Source: Can be powered by various sources, including hydraulic, electric, or pneumatic.
Power Source Exclusion: Power sources (e.g., hydraulic motors) are not part of the winch standard, except for their role in sending a hydraulic pressure signal to the brake system.

Accessories (included):

Heavy-duty roller fairlead
Cable tensioner
Over-centre valve

Accessories (optional):

Air clutch shifter for free spooling

Key Features:

Compact & Strong: Aluminium castings reduce weight while maximising strength.
Fast Operation: Achieves a line speed of up to 20.8 m/min (68.2 ft/min) at the top layer.
Versatile Mounting: Suitable for foot or side mounting.
Automatic Brake: Reliable and efficient brake system for safety.
Totally Oil-Cooled: Gears and brakes bathed in oil for maximum performance and longevity.

Key Specifications:

Specification	Details
Model	EPH 5200
Pulling Capacity	5,200 kg (11,464 lbs)
Working Pressure	130 Bar (1,885 Psi)
Wire Rope Diameter	12 mm
Rope Capacity	SAE J706: 26 m (85.3 ft) EN14492-1: 30 m (98.4 ft)
Line Speed	First Layer: 11.7 m/min (38.4 ft/min) Top Layer: 20.8 m/min (68.2 ft/min)
Max Oil Supply	60 L/min (15.85 GPM)
Weight Without Cable	49 kg
Drum Dimensions	Length: 252 mm (9.92 in) Diameter: 102 mm (4.02 in)
Gear Train	Hardened steel, single-stage planetary gear train
Brake	Automatic, oil-bathed
Material	Aluminium body with powder-coated finish
Mounting Options	Foot or side mounting
Optional Accessories	Heavy-duty roller fairlead Cable tensioner Air clutch shifter Over-centre valve
Compliance	SAE J706 CE Machinery Directive 98/37/EEC

Please note these winches we stock are all air override, however we can modify them to manual operation on a case-by-case basis if required.

Data sheet: Click here

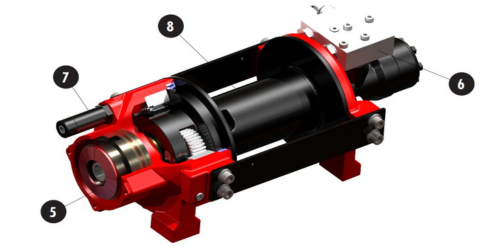

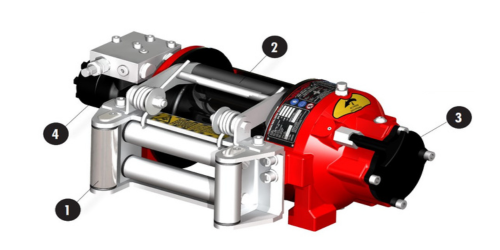

Winch Components

1. Heavy-duty roller fairlead (Option): Heavy duty mounting frame with zinc plated finish. Close tolerance machining, for perfect mounting onto winch body. Large diameter rollers, manufactured from hardened thick walled steel and fitted with heavy-duty composite bushing, for reduced maintenance and increased rope life.

2. Cable tensioner (Option): Strong frame with heavy duty springs, zinc plated finish with roller in composite against rust, prevents wire rope tangling when free spooling.

3. Manual clutch: Manual clutch for drum free spooling.

4. Hydraulic motor: Orbital hydraulic motor, splined output shaft. Painted finish.

5. Heavy-duty automatic brake: Automatic brake, designed using special heavy duty components to assure excellent brake performance and reliability.

6. Over-centre valve (Option): Special noiseless over-centre valve based on Vime’s design for low profile hoses connection, as optional.

7. Air clutch (Option): New compact air - cylinder with aluminium body based on Vime’s own design. Can easily replace the manual clutch shifter in situ. Chromium plated out put shaft is visible when the drum is in the disengaged position

8. Drum: It has a single or double system for wire rope mounting. The dual rope anchor point based on Vime’s own design in according with CE Machinery Directive to prevent rope release, depending on wire rope diameter according to the different winch models

Ideal for industrial tasks, this hydraulic winch ensures high efficiency, reliable braking, and versatile application. Perfect for Australian industries, Hydraulic.Online delivers nationwide and worldwide.
