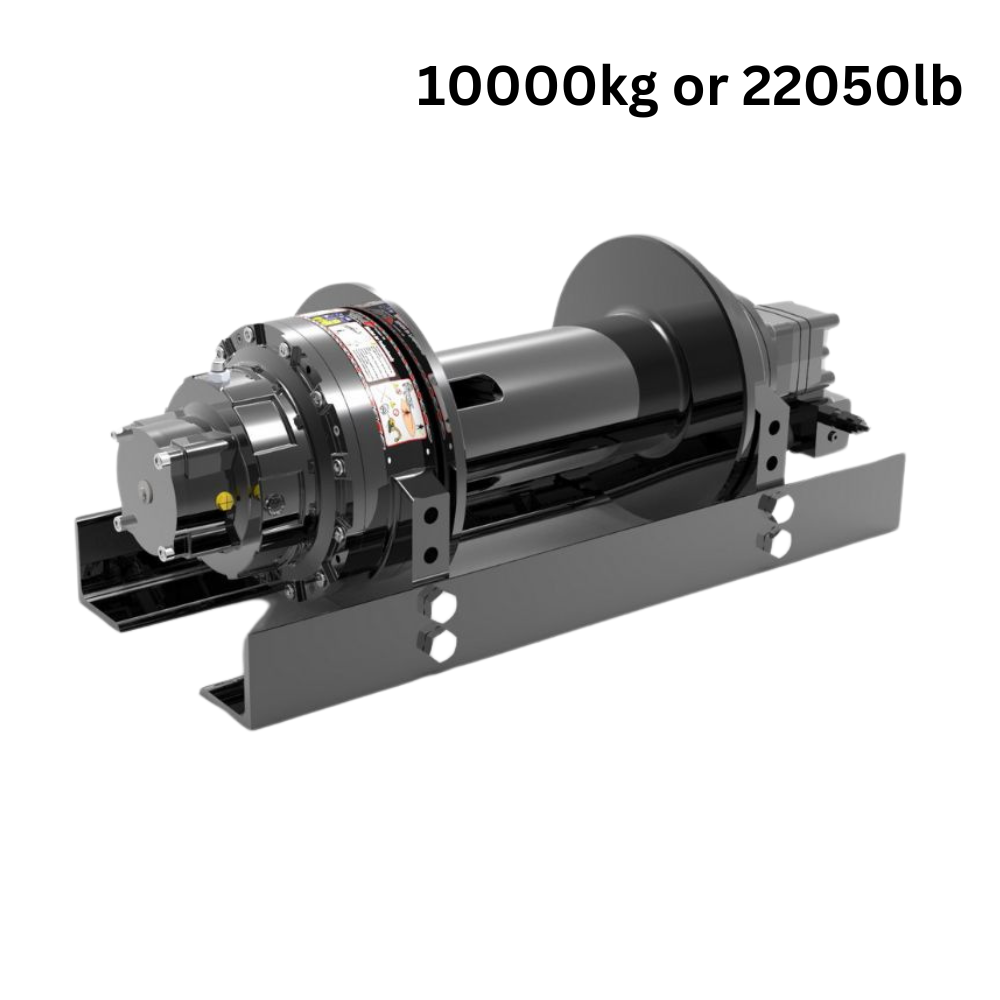

Hydraulic Winch for Industry 10,000 kg pull, Italian Made Planetary Gearbox
Product Details
Weight: 200.00 kg
Hydraulic Winch with 22,000 lbs (10,000 Kg) Line pull, with Air Clutch release for drum, Automatic Brake and Heavy Duty Planetary Gear Drive.
The EPHL 10000FN Hydraulic Planetary Winch is engineered in Italy for industrial applications requiring reliability, strength, and precision. Designed to meet SAE J706 standards, this high-performance winch combines cutting-edge features with a durable construction, making it ideal for demanding Australian industries.
Accessories (included)
- Over-centre valve
Accessories (optional):
- Heavy-Duty Roller Fairlead: Zinc-plated for added durability (RF/EPHL10000).
- Cable Tensioner: Zinc-plated for secure operation (LW/EPHL10000).
- Wire Rope: 16 mm x 30 m, engineered for heavy-duty applications (B2070/16MMX30MT/EH).
Key Features:
- Compact Design: Built with a hardened steel single-stage planetary gear train for optimal efficiency.
- High-Speed Performance: Ensures fast payout and rewind to boost productivity.
- Durable Construction: Hardened iron casting provides exceptional strength and longevity.
- Versatile Mounting: Suitable for foot or side mounting to meet various application needs.
- Advanced Brake System: Multi-disc pressure-released brake delivers reliable full braking capacity.
- Oil-Cooled Components: Fully oil-bathed gears and brakes ensure quiet operation and extended lifespan.
Specifications:
| Category | Details |
| Model | EPHL 10000FN |
| Gearbox | Planetary Gearbox Ratio 22.7:1 |
| Pulling Capacity | 10,000 kg (22,046 lbs) |
| Working Pressure | 200 Bar (2,901 Psi) |
| Wire Rope Diameter | 15/16 mm |
| Rope Capacity (SAE J706) | 74/52 m (242.8/170.6 ft) |
| Rope Capacity (EN14492-1) | 80/60 m (262.5/196.9 ft) |
| Line Speed (First Layer) | 11.1 m/min (36.4 ft/min) |
| Line Speed (Top Layer) | 19.2 m/min (63.0 ft/min) |
| Maximum Oil Supply | 75 L/min (19.81 GPM) |
| Drum Sizes Available | Long: 373 mm (14.7 in) |
| Drum Sizes Available | Short: 255 mm (10.0 in) |
| Material | Hardened iron casting |
| Brake Type | Multi-disc pressure-released brake |
| Gear System | Hardened steel single-stage planetary |
| Oil Cooling | Fully oil-bathed gears and brake |
| Mounting Options | Foot or side mounting |
Ideal for industrial tasks, this hydraulic winch delivers high torque with efficiency, reliable braking, for all multipurpose applications.
Perfect for Australian industries,
Hydraulic.Online delivers nationwide and worldwide.
Purchase this Winch now by clicking the Add to Bag button!
Or give us a call on 1300 1 HOSES for more information.
You can also send us a message after hours on sales@mhfgc.com.au.
Messages will be answered in business hours (Mon-Thurs 8:00am-5:00pm & Fri 8:00-3:00pm)
