Industrial Hydraulic Winch, high torque 9,000 kg, - Worm Drive Gearbox
SKU WI-19850LB-VIME
AU$5 270.26
🔥 EOFY SALE!
was AU$8 190.00 Save 36%
Add Options
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Industrial Hydraulic Winch, high torque 9,000 kg, - Worm Drive Gearbox
Product Details
Weight: 120.00 kg

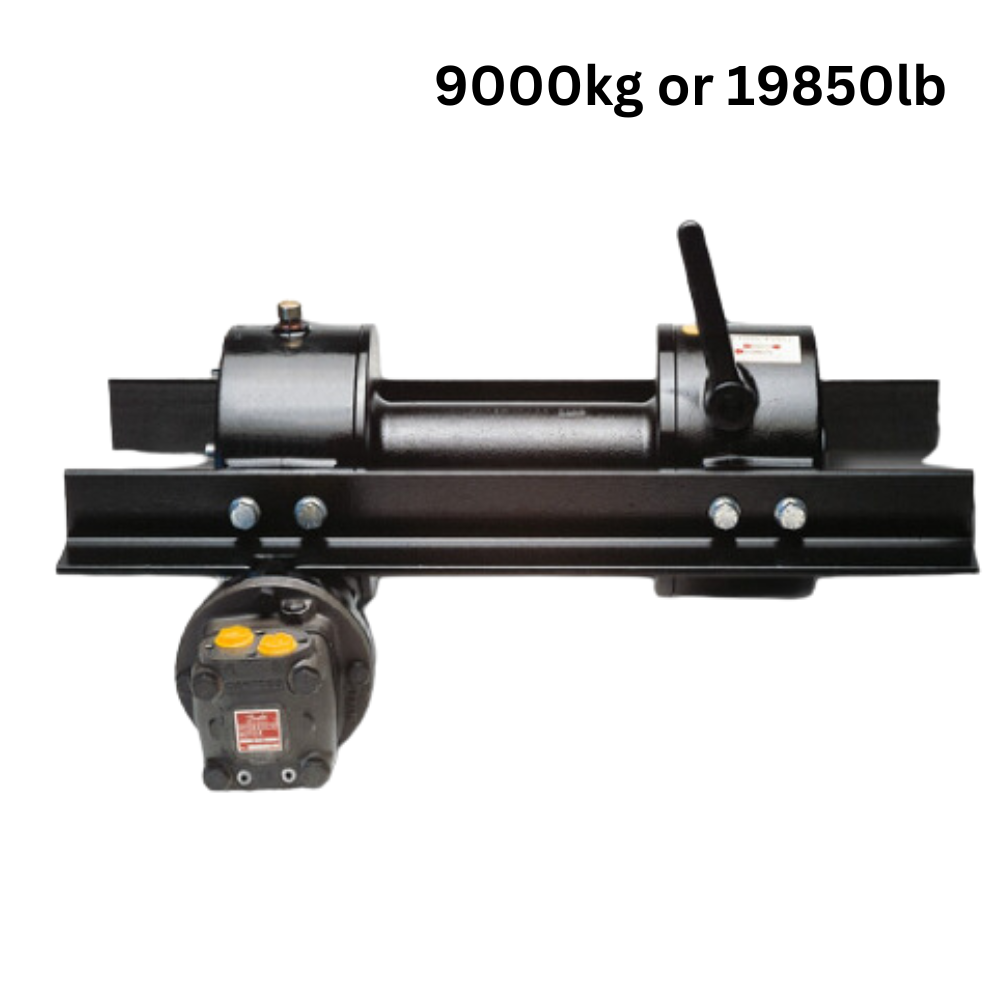

Hydraulic Winch with 19,850 lbs (9.000 Kg) Line pull with High torque Worm Drive Gear box and air operated drum release .
The MH 9000 hydraulic winch is engineered in Italy for heavy-duty applications, the 35:1 Worm drive Reduction Box offers high torque at a slower more controlled line speed this provides unmatched power, durability, additional safety and reliability.
Designed to meet high safety standards and built for tough Australian industries, the MH 9000 is perfect for tow trucks, medium-heavy duty vehicle carriers, and industrial winching tasks.
Accessories (Optional):
- Heavy-Duty Roller Fairlead: Zinc-plated for durability
- Cable Tensioner: Zinc-plated for consistent performance
- Wire Rope with loop and Hook (16mm x 30m):Australia Standards Certified B2070/16MMX30MT/EH.
Accessories (Included):
- Air Clutch: For free-spooling of winch drum.
Specifications:
- Tough Construction: Special high strength aluminum alloy bronze gear matched to a hardened steel precision ground and polished worm.
- Low Mounting: Its particular design makes it suitable for front-end or rear vehicle mounting.
- Light and Strong: Body manufactured from hardened special aluminum castings, reducing weight while increasing strength.
Body powder coated finish. - Brake System: Worm gear provides load-reversing protection.
- Drum Size: Standard 278mm (10.9 inches) MH 9000, Drum flange diameter 273mm (10.7 inches).
- Totally Oil Cooled: Worm and gear are bathed in oil for maximum performance, quiet operation, and extended internal component life.
Key Specifications:
| Specification | Details |
|---|---|
| Model | MH 9000 (Worm Drive Gearbox) |
| Reduction Ratio | 35:1 |
| Pulling Capacity | 9,000 kg (19,842 lbs) |
| Working Pressure | 160 Bar (2,321 Psi) |
| Wire Rope Diameter | 16mm |
| Rope Capacity (SAE J706) | 31 m (101.7 ft) |
| Rope Capacity (EN14492-1) | 35 m (114.8 ft) |
| Line Speed (First Layer) | 4.7 m/min (15.4 ft/min) |
| Line Speed (Top Layer) | 9.2 m/min (30.2 ft/min) |
| Max. Oil Supply | 100 Lt/min |
| Drum Size | 278 mm (10.9 in) |
| Brake Type | Worm gear with load-reversing protection |
| Gear System | Hardened Steel worm gear Aluminium Bronze Wheel |
| Oil Cooling | Oil-bathed worm and gear |
| Mounting Options | Front or rear vehicle mounting |
Ideal for industrial tasks, this hydraulic winch ensures high efficiency, reliable braking, and versatile application.
Perfect for Australian industries.
Hydraulic.Online delivers nationwide and worldwide.
Purchase this winch now by clicking Add to Bag button!
Or give us a call on 1300 1 HOSES for more information.
