Hydraulic Winch, Tilt Trays Tow Trucks 27.558 Lbs pull with 30 meter cable - Planetary Measurements Main

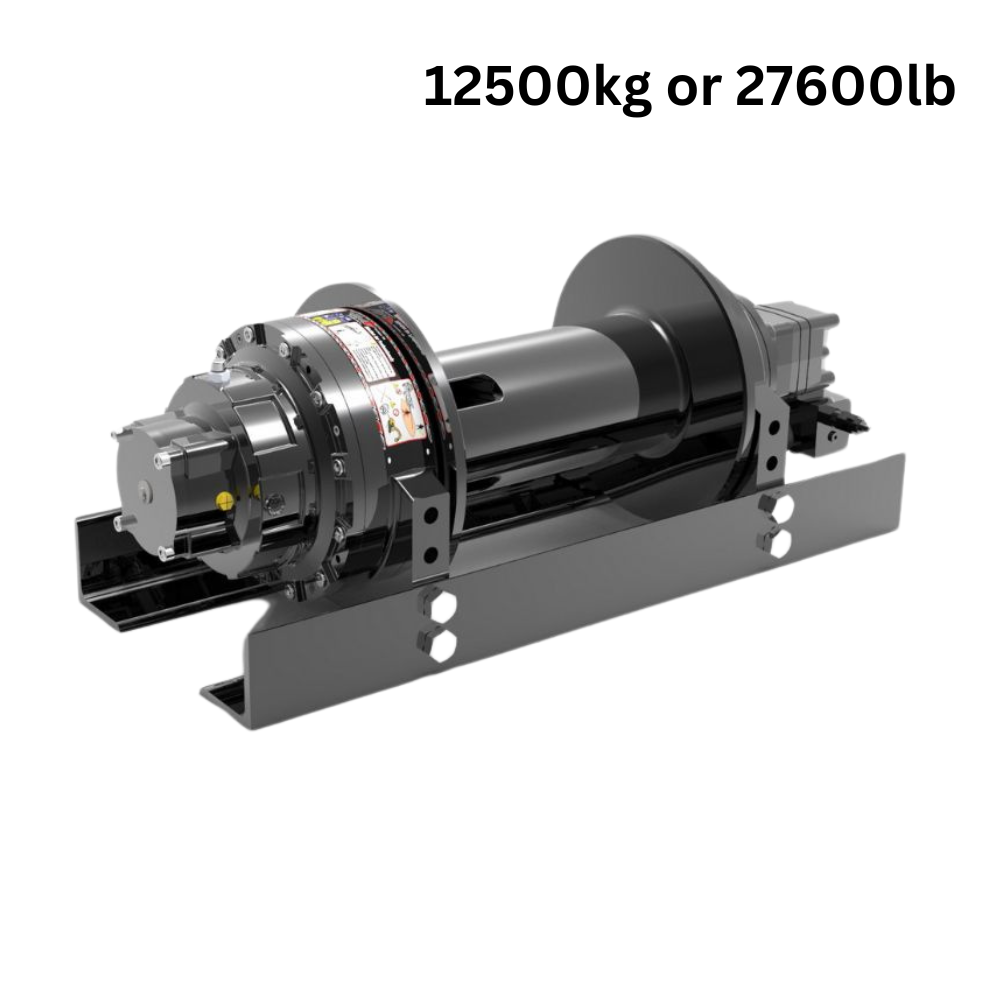

Industrial Quality Italian Hydraulic Winch, Tilt Trucks 12,500 kg, pull capacity Planetary Gearbox

Name: Hydraulic 12,500kg Pull, 30 m cable, Italian Quality
SKU: WI-27600LB-VIME
Price: 9576.6 AUD
Availability: InStock

Store/Winches Heavy Duty Hydraulic Cable for Tilt Trays and Tow Trucks

SKU WI-27600LB-VIME

AU$9 576.60

🔥 EOFY SALE!

was ~~AU$14 510.00~~ Save 34%

Add Options

Add Spring Loaded Cable Roller and Tensioner (+AU$615.00)

Add Roller Fairlead (Guides Cable In & Out of Drum) (+AU$853.00)

Add Cable 18mm x 30m with Eye & Hook Please Contact US for options (+AU$1 200.00)

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Industrial Quality Italian Hydraulic Winch, Tilt Trucks 12,500 kg, pull capacity Planetary Gearbox

Store/Winches Heavy Duty Hydraulic Cable for Tilt Trays and Tow Trucks

Product Details

Weight: 245.00 kg

Hydraulic Winch with 27.558 Lbs (12,500 Kg) Line pull, with Air Clutch for drum freewheel, Automatic Brake and a Heavy Duty hight torque 22.7:1 Ratio Planetary Gear Drive.

The EPHL 12500FN Hydraulic Planetary Winch offers a high pulling capacity of 12,500 kg (27,558 lbs), designed for industrial use and maximum performance.

Features a robust iron casting body: and hardened steel single-stage planetary gear train with a 22.7:1 reduction ration,
this winch is engineered for reliability and durability.

Ideal for a multitude of extra heavy-duty tasks,
This winch meets SAE J706 standards for safety and efficiency.

The winches we stock are equipped with compressed air override,
but manual operation can be customised on a case-by-case basis if needed.

Accessories (optional):

Heavy-duty roller fairlead
Cable tensioner
Cable Certified to Australia Standards

Accessories (included):

Air clutch shifter for free spooling
built in automatic Brake

Key Features:

Compact & Strong: Iron castings provide superior strength for heavy-duty tasks.
Fast Operation: Achieves a line speed of 16.3 m/min (53.5 ft/min) at the top layer.
Versatile Mounting: Designed for both foot and side mounting options.
Automatic Brake: Multi-disc pressure-released brake ensures safety and reliability.
Totally Oil-Cooled: Both gears and brakes are oil-bathed for superior performance and extended lifespan.

Specifications:

Specification	Details
Model	EPHL 12500FN
Pulling Capacity	12,500 kg (27,558 lbs)
Working Pressure	200 Bar (2,901 Psi)
Wire Rope Diameter	16/18 mm
Rope Capacity	SAE J706: 74 m (242.8 ft) / 48 m (157.5 ft) EN14492-1: 80 m (262.5 ft) / 55 m (180.4 ft)
Line Speed	First Layer: 9.2 m/min (30.2 ft/min) Top Layer: 16.3 m/min (53.5 ft/min)
Max Oil Supply	75 L/min (19.81 GPM)
Weight Without Cable	90 kg
Drum Dimensions	Length: 373 mm (14.7 in) Diameter: 255 mm (10.0 in)
Gear Train	Hardened steel, single-stage planetary gear train
Brake	Multi-disc, pressure-released, oil-bathed
Material	Iron body with powder-coated finish
Mounting Options	Foot or side mounting
Optional Accessories	Heavy-duty roller fairlead Cable tensioner Air clutch shifter Over-centre valve
Compliance	SAE J706, CE Machinery Directive 98/37/EEC

Ideal for industrial tasks, this hydraulic winch ensures high efficiency, reliable braking, and versatile application.

Perfect for Australian industries and heavy Duty Mobile Applications,

Hydraulic.Online delivers nationwide and worldwide.

Purchase this Hydraulic Winch now by clicking the Add to Bag button!

Or give us a call on 1300 1 HOSES for more information.

You can also send us a message after hours on sales@mhfgc.com.au.

Messages will be answered in business hours (Mon-Thurs 8:00am-5:00pm & Fri 8:00-3:00pm AEST )
