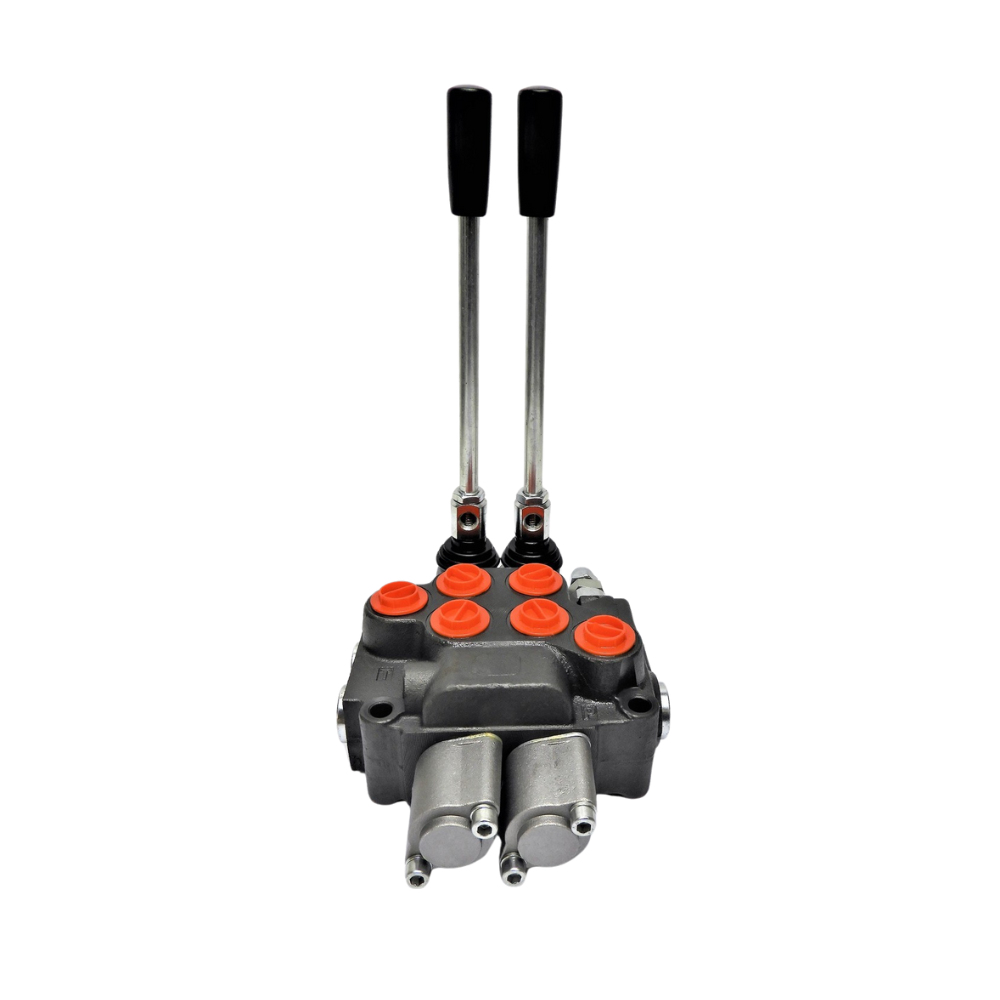

Hydraulic two Spool Monoblock Flow Control Valve with 1/2" BSP Ports flows up to 50 Lt/Min

A quality valve, that is designed for industrial, recreational and mobile applications, or any application where you need to control 2 individual cylinders or motors.

These valves are regularly used in hydraulic circuits to divert the flow of high-pressure oil and are typically used to control the speed and movement of hydraulic cylinders or motors.

All ports have a 1/2" BSPP thread. There is a 'power beyond' port, which can be used as a pressure line if you ever wish to mount another valve downstream. There is a grub screw that comes with the valves. This needs to be inserted into the power beyond the port to make this port open.

A optional detent (lever stays up or down on its own) can be fitted for $40 per spool.

• Construction = Monoblock
• Material of Construction = Steel
• No of Spools = 2
• Material of Construction = Case Hardened Steel
• O-rings made of NBR (Buna-N®)
• Max Flow Rate = 50 liters/min (13 Gallons per Minute)
• Max Working Pressure = 315 Bar (4750 PSI)
• Spool Type = Cylinder. Motor Spools are also available $35 each.
• Spool Movement = Lever action, Spring Return to Center.
• Detent Kits also available at $40 each No Spring to center
• Built-in Relief Valve = Adjustable (factory set at 1800 PSI)
• Ports Sizes
• Tank return Port 1/2" BSPP
• Pressure A & B Ports 1/2" BSPP
• Mounting Bolt centres ; 147mm x 81mm
• Operating temperature range: -20 °C to + 80°C
• Dimensions = L x W x H = 24 x 24 x 12 cm
• Weight 8 KG




This is a High-Quality Valve and has many outstanding features, including.
• A Built-in adjustable relief valve
• high performance,
• high efficiency,
• small volume,
• mass flow,
• leak resistance.
• In addition to compact size, these control valves have fixed and large pull rods to control direction,
• Various control options, manual, automatic, and or remote control methods are also available.
• Motor Spool
• Detent kit no spring return
• Detent kit with spring return
• Pneumatic spool control,
• Joystick cable control.
• Compact construction.

Please send us a message for more information.
