JOY STICK 7 Function Flow Control Valve 60 Lt/Min GALTECH Q45
Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves
Product Details
Brand: GALTECH Q45
Weight: 14.00 kg
This listing is for a brand new, made in Italy , Galtech brand high-quality 60Lpm monoblock valve with Joystick controls. We can supply this valve in 2 up to 7functions, however Joysticks will clash in certain positions, ie. a four spool with joysticks side by side will clash in a certain position, solution, buy a 5 spool. By default, any standard lever action is Spring Return to Center. The manual levers are able to be mounted at either straight out or straight up.

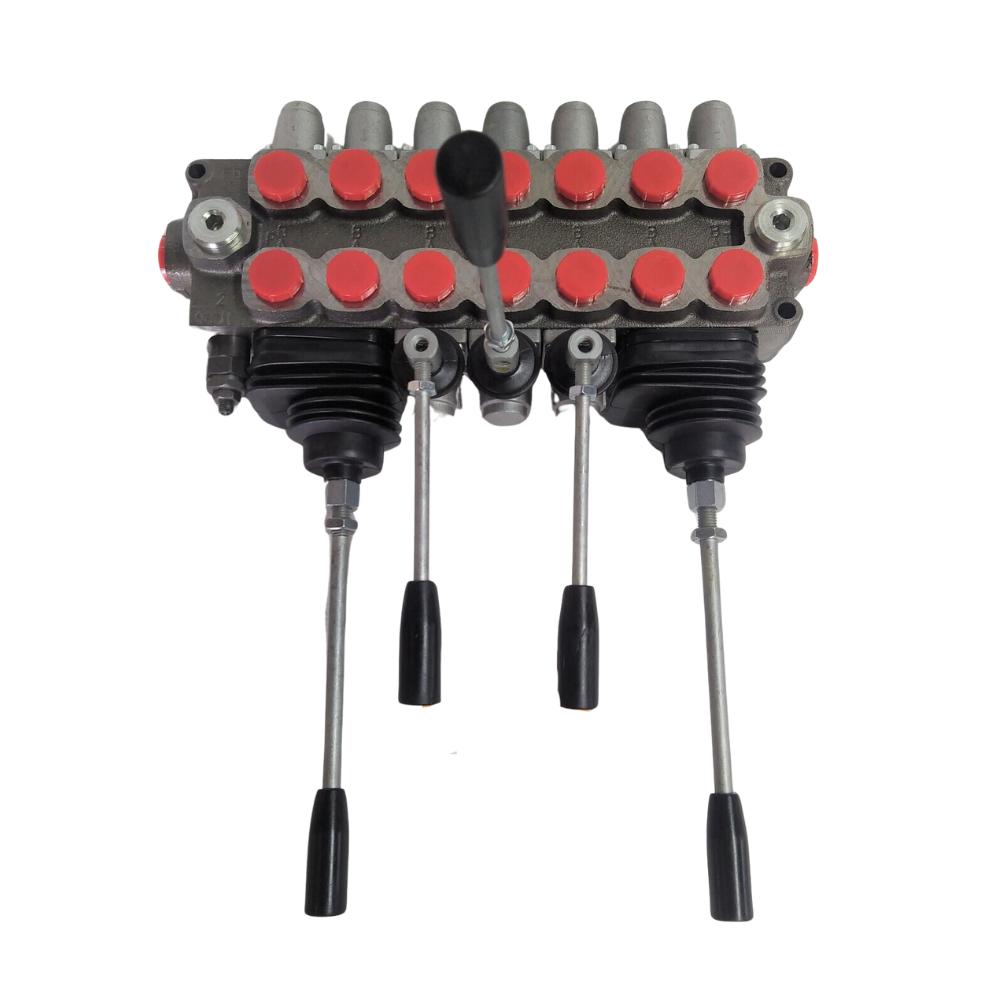

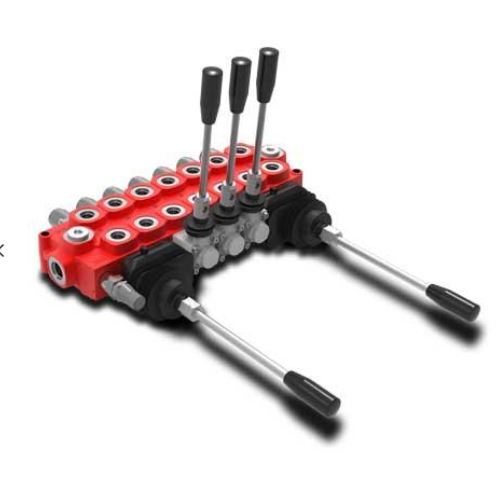

This listing is for a 7 function with two Joysticks fitted. Please email or call us for pricing for other configurations Motor or Cylinder spools etc available
These valves are regularly used in hydraulic circuits to divert the flow of high pressure oil and are typically used to control the speed and movement of hydraulic cylinders or motors.
Specifications
- Construction = Monoblock
- Material of Construction = Steel
- No of Spools = various
- Material of Construction = Case Hardened Steel
- O-rings made of NBR (Buna-N®)
- Max Flow Rate = 60liters/min
- Max Working Pressure = 315 Bar (4750 PSI)
- Spool Type = Cylinder. Motor Spools also available
- Spool Movement = Lever action, Spring Return to Center.
- Detent Kits $62
- Built in Relief Valve = Adjustable (factory set at 2500 PSI)
- Ports Sizes
- Pressure Port 1/2" BSPP
- Cylinder Ports 1/2" BSPP
- Tank Port 1/2" BSPP
- Operating temperature range: -20 °C to + 80°C
- Dimensions = L x W x H = as per photo
-
Weight 14KG
This a High Quality Valve and has many outstanding features, including.
- built in adjustable relief valve
- high performance,
- high efficiency,
- small volume,
- mass flow,
- leak resistance.
In additional to compact size, these control valves have fixed and large pull rods to control direction,
Please note*
These valves require a separate "Power Beyond" sleeve to operate a valve downstream.
Detent is when a you push/pull a lever, it stays forward/back at that position until you move it back to the centre.
Installation ; As per photos, there are a choice of two pressure ports "P" (only use one), two "T" Tank return ports and also there is a "C" port. This "C" port is for the: Power Beyond function. This allows another valve to run pressure from this C port downstream if necessary. (must be a lower volume though). A & B ports run to your cylinder or other functions.
