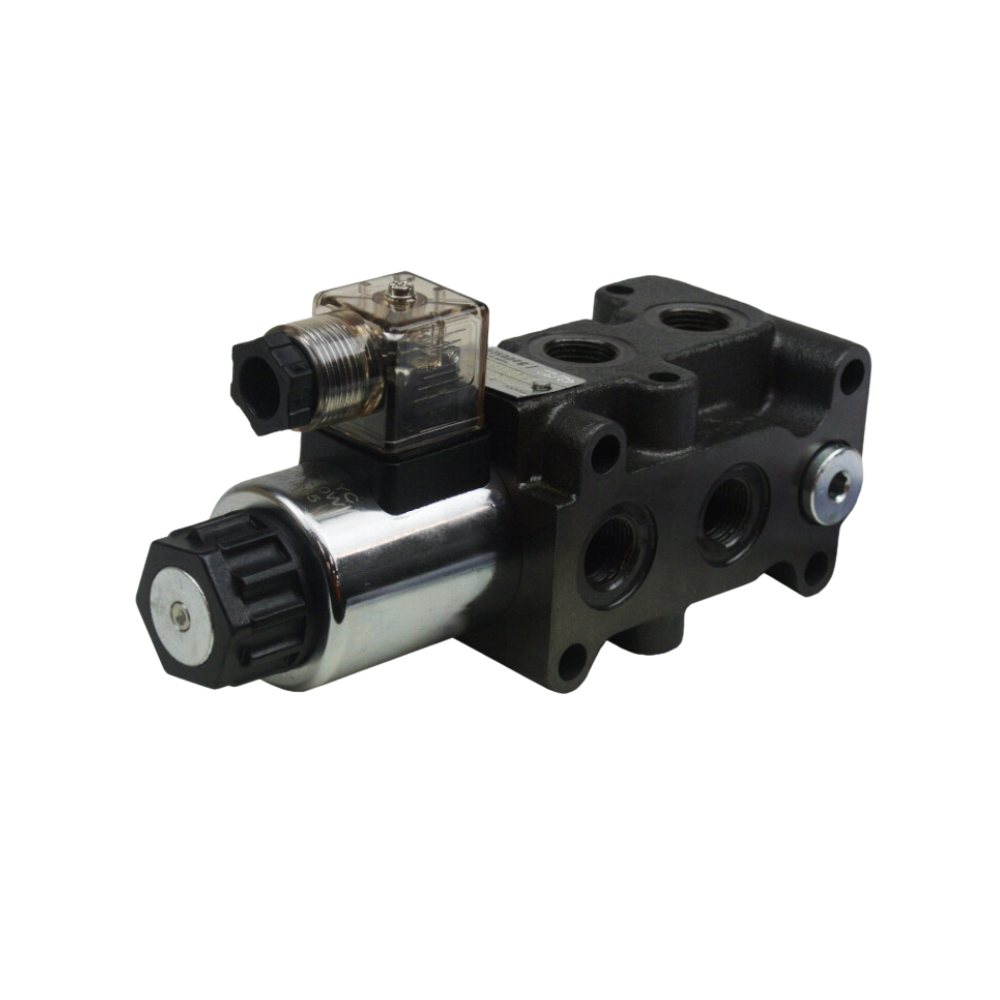

Hydraulic 6 Port Diverter / Selector Valve two flows 50Lt/min 3/8 BSPP ports and - 80 Lt/min 1/2" BSPP port Pressures from 3,000 to 4,500 PSI Voltages 12 or 24Volts DC, made in Europe.

A 6 Port Hydraulic Diverter valve is a simple cost effective way to add an additional alternative Hydraulic Function to a machine e.g. a double acting cylinder, Reversible drive motor or another valve.

Please note only one function will work at a time.

Six port solenoid diverters allow two separate double acting circuits to be controlled from one one flow.

Valves can also be installed closer to where the new function is required thus saving in time and additional hose fittings and materials.

These diverters are also 'stackable' (see photos) . These means you could stack eg. 3 x 6 port diverters to achieve four different functions.

Comes with

• 3/8" or 1/2" BSPP ports
• 50 or 80 Lt/Min Flows
• Pressures from 3,000 to 4,500 PSI
• Voltages 12 or 24 Volts DC Solenoid coil with manual override,
• Square plug with indicator light,

For the Best Value manually actuated 6 Port diverter selector valve Click Here

For a Single Spool or Function eg single acting cylinders click here

For a Cheaper 6 port diverter with manual actuation lever (no electrics) Click Here

For 6 port diverter valve with Higher oil flows up to 120 l/m and 3/3 inch ports click here

P1 & P2 are pressure in, C,D are normally open functions (Solenoid Coil Not energised), & A,B are the alternative function when solenoid coil is energised.

The 3/8" ported unit is available with open centers,

Case drain is for draining away any internal leakage, rather than pressurising the valve and making Change over difficult at elevated pressures.

Case drains must return directly to tank.

The 1/2" ported model is available with Open Centers .

Directions for use.

The 3/8" BSPP port model is capable of flowing 50 Lt/Min.

If used with oil at less than 210 bar (3000 PSI) pressure then no case drain is required.

The 1/2" BSPP ported unit will flow up to 80 Lt/Min at a max of 315 bar / 4500 PSI pressure.

Please note, the 3/8" and 1/2" ported 6 port diverter valve are only available with Open centrers and therefore do not require a case drain unless operating pressures exceed 3,000 psi (210bar).

if operating at pressures higher than 210bar 3000 psi then case drain must return to tank directly

There is a 1/4" BSPP port on the end of one side for this purpose.

For wiring, just use the two terminals opposite each other, ignore wider end terminal

Buy with Confidence from a long established Hydraulic Service Center get a

12 month warranty and an ' Australian Tax Invoice.
