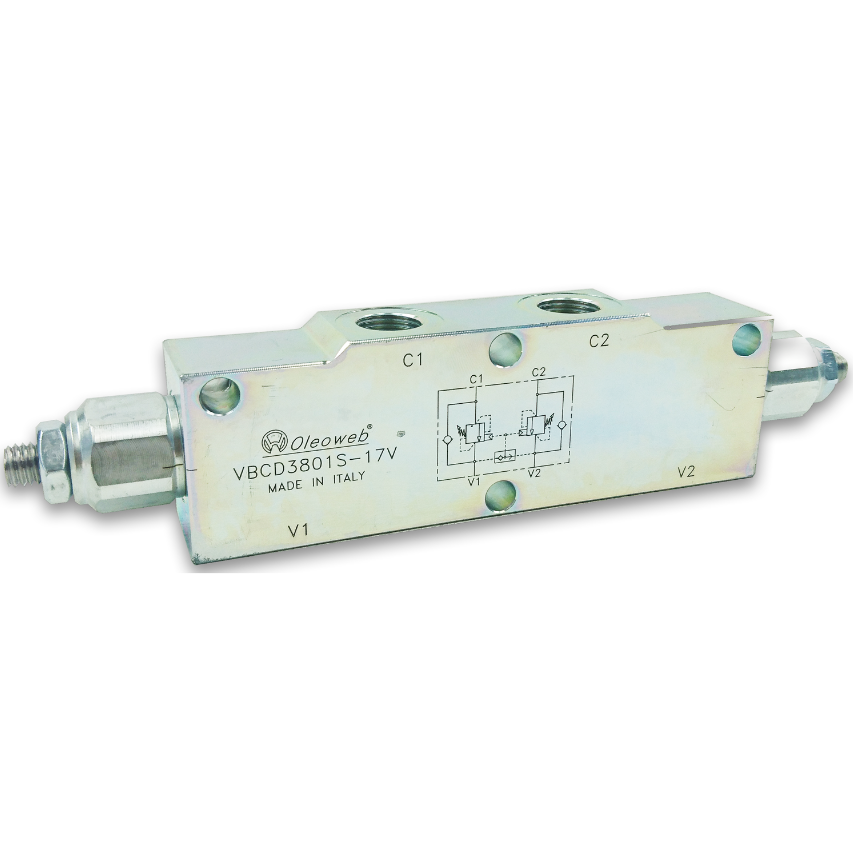

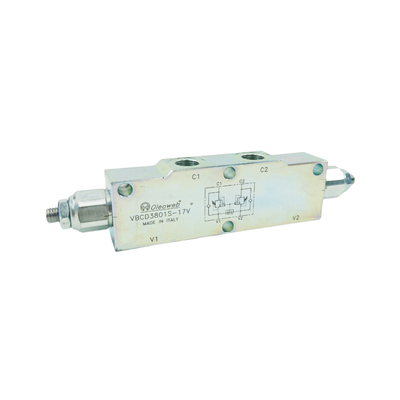

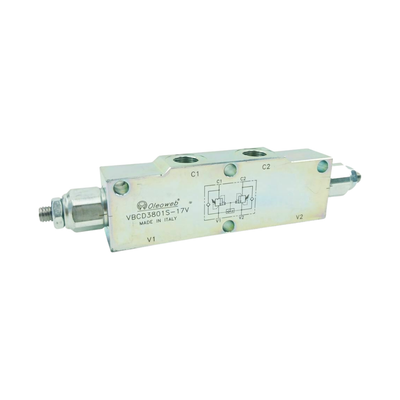

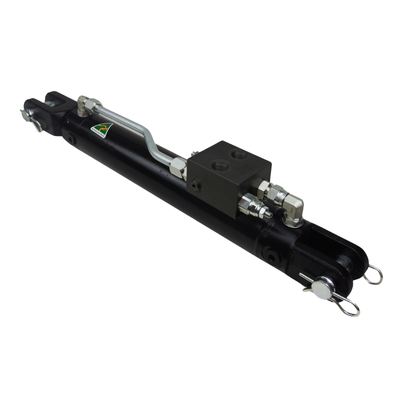

Dual Counter Balance valve with 3/8 BSPP ports, open centre. Flows up to 40 Lt/min, pressure Adjustable from 30 to 210 bar (450 to 3100 PSI) with Internal Vent Design.

Also Available with a 60 - 350 bar pressure range (please see Options)

These valves are widely used for stabiliser legs, winch motors, hydraulic cylinders and other motors where it is essential a function does not drop or rotate if hydraulic power, flow or pressure is lost or when a hydraulic hose, pipe or fitting is damaged.

Ratio: The ratio is the comparison between these two pressures.
For example, a 3:1 ratio means that the main pressure must be three times the pilot pressure to open the valve.

Higher Ratio (e.g., 8:1): This means the valve requires a relatively low pilot pressure to overcome a high main pressure.
This is often used in applications with heavy loads or where precise control is needed.

Lower Ratio (e.g., 3:1): This means the valve needs a higher pilot pressure to overcome a given main pressure.
This is often used in applications with lighter loads or where less precise control is required.

Counterbalance Valves are a mandatory safety item for many hydraulic lifting applications.
We have installed these valves on boom and dipper arm cylinders on excavators and Backhoes that are also used to lift equipment and materials such as pipework on construction sites.

Adding a counterbalance valve better controls the down motion: and also provides protection when lowering a load, the load has to be driven down with the machine's pump pressure rather than allowing gravity to pull on the load. This gives the machine operator a much finer feel and control of the machine's movement and speed.

In a Typical Hydraulic Circuit, pulling the directional control valve's lever Backwards causes the cylinder to extend, raising the load with free flow going through the check valve portion of the counterbalance valve. When the directional control valve is centered, the counterbalance valve will prevent leakage and lock the load in position.

Moving the directional control valve lever forward sends flow/pressure to the rod end of the cylinder. This pressure also acts to pilot open the counterbalance valve and allows the load to be lowered.

Counterbalance valves will positively hold a pressurized load and will control the motion of the load based on application of a pressure signal to the pilot port.

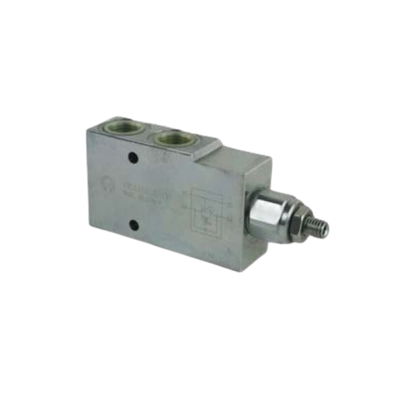

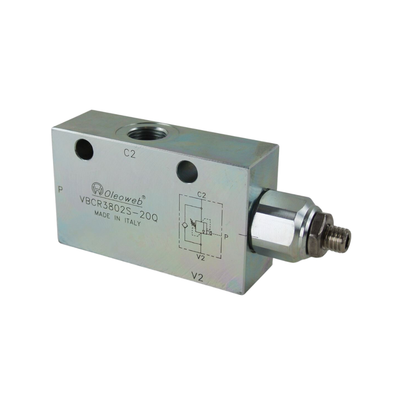

Single inline counterbalance valves are also available at about 60% the cost of a dual counterbalance valve.

This valve controls a moving load in BOTH directions, preventing it from moving ahead of the pump & locks the load in any position on C1 or C2. You can adjust the counterbalance valves with an Allen key to speed or slow the cylinder travel to equal out two cylinder speeds. 1 full turn equals approx.. 1000 PSI per turn.

Made in Italy by Oleweb.

Specifications

• Pressure Rating = 30-210 bar (450-3150 PSI)
• Three (3) Ratios available 3:1, 4.25:1, and 8:1
• Flow = 40 LPM
• Ratio = 8:1
• Size = 3/8" Full Bore
• Ports = 4 x 3/8" BSPP Female.
• Materials of Construction
• Body = Zinc Plated Steel
• Seals = Viton.

Some additional guidelines for counterbalance valve applications:

• Specify the counterbalance valve relief setting high enough to stop any motion (flow) at the maximum expected actuator pressure. Generally it is recommended to use a setting of 1.3 multiplied by the maximum load pressure.
• Use low pilot ratios (3:1 and 4.5:1) for applications where loads may vary widely. Low pilot ratios require higher pilot pressure and are less efficient but provide stable, precise control for varying loads.
• Use high pilot ratios (8:1 and 10:1) for applications where loads are relatively constant. High pilot ratio valves require lower pilot pressure, have faster response, and are more efficient, but lack stability and precision in response to varying loads.
• Do not oversize counterbalance valves. There is no pressure drop operating limit for counterbalance valves and in fact some pressure drop is required to maintain valve operation.
• Locate counterbalance valves at or near the actuator to provide maximum load holding protection in the event of hydraulic line failure.
• Do not use counterbalance valves with closed-center directional control valves. Pressure trapped between the directional control valve and the actuator can pilot the counterbalance valve open and result in undesired load motion.

Do not use counterbalance valves with tandem-center directional control valves.

Buy with Confidence from a long established Hydraulic Service Center get a 12 month warranty and an Australian Tax Invoice.

IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
