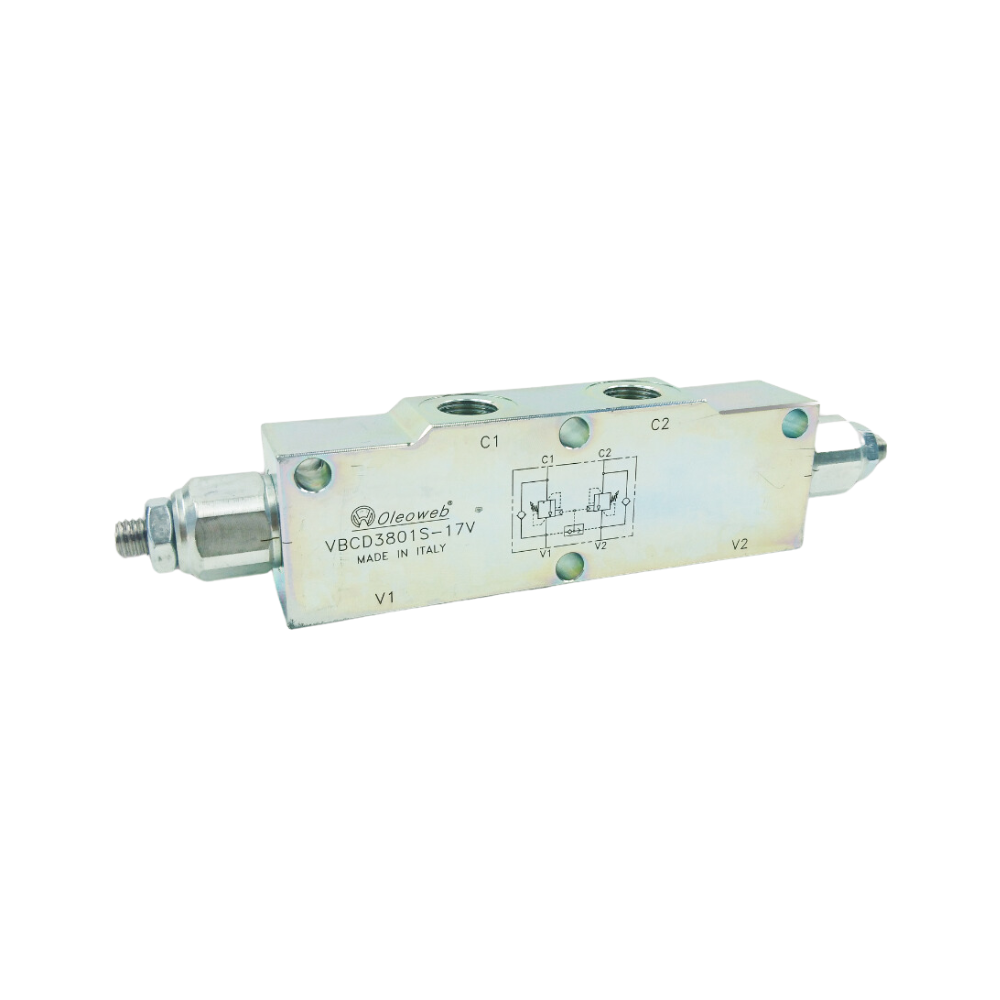

Dual Counter Balance Valve Internal Vent, sizes 3/8" 1/2" and 3/4" inch

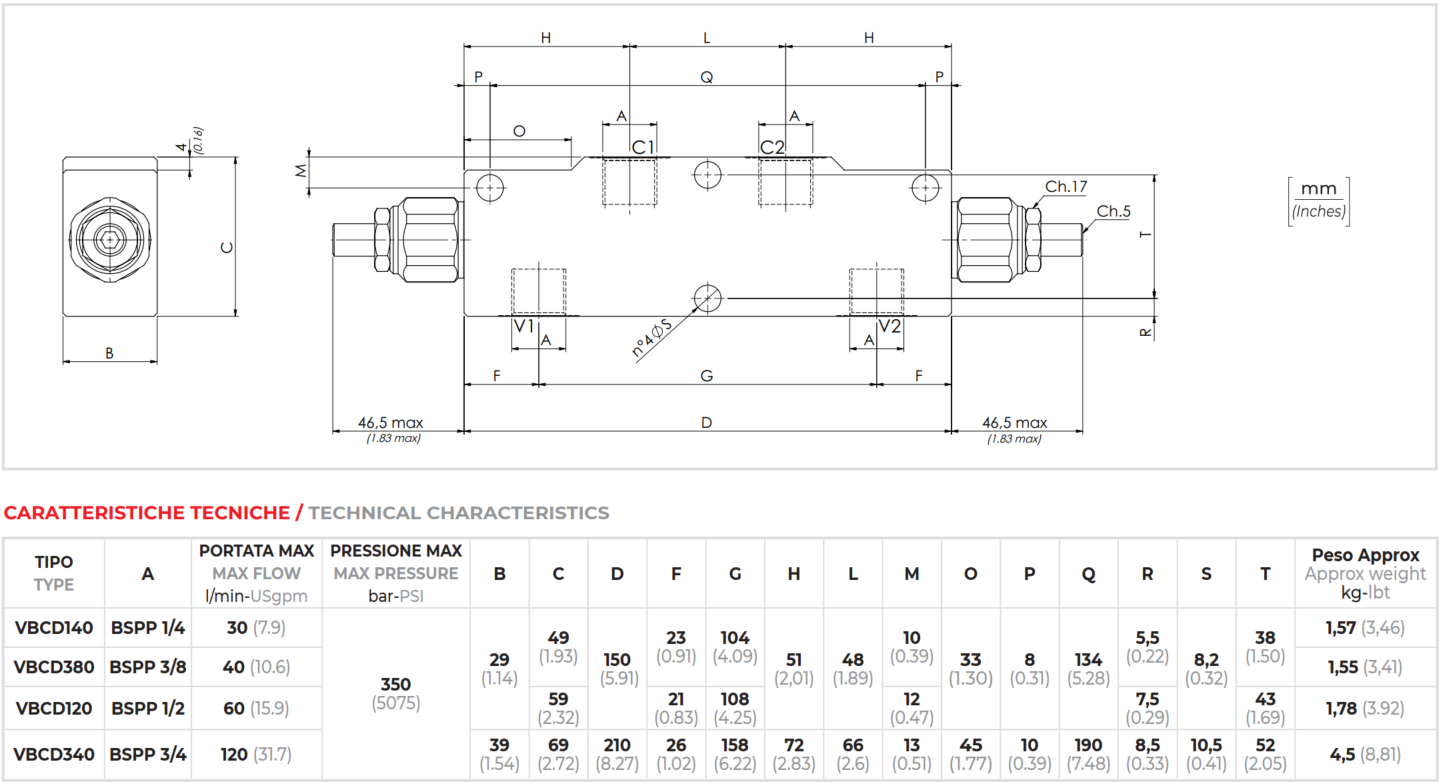

Available in 3 Sizes

• 3/8" flows 40 Lt/min,
• 1/2" flows 60 Lt/min,
• 3/4" flows 120 Lt/min.

These valves are widely used for stabiliser legs on Trucks and Cranes & Ships Anchor winches any other hydraulic use where it is essential a load of function does not drop or lower if hydraulic power is lost ie. broken hose or fitting.

These are a mandatory safety item: for many hydraulic lift and hold applications.

Advantages of a Dual Counter Balance Valve

Adding a counterbalance valve controls lowering motions: especially when Gravity is trying to lower a load faster than oil can be supplied to a cylinder or winch Motor.

In the majority of these lowering applications: the Load is actually Driven Down, so that there is no chance of free fall, from a vacuum or free wheel occurance.

These Valves also provide protection against a hose burst or tube failure.

In a Hydraulic Circuit, moving the lever on directional control valve to the for example causes the cylinder to extend and raise a load. With free flow oil going through the check valve portion of the counterbalance valve.

When the directional control valve is centered, the counterbalance valve will prevent leakage and lock the load in position.

Moving the directional control valve to the right sends flow/pressure to the rod end of the cylinder. This pressure also acts to pilot open the counterbalance valve and allows the load to be lowered.

Counterbalance valves will positively hold a pressurized load and will control the motion of the load based on application of a pressure signal to the pilot port.

This valve controls a moving load in BOTH directions, preventing it from moving ahead of the pump & locks the load in any position on C1 or C2. You can adjust the counterbalance valves with an Allen key to speed or slow the cylinder travel to equal out two cylinder speeds.

1 full turn equals aprox. 1000 PSI per turn.

Single inline pilot check valves are also available.

Made in Italy.

Materials of Construction

Body = Zinc Plated Steel

Seals = Viton.

Some additional guidelines for counterbalance valve applications:

• Specify the counterbalance valve relief setting high enough to stop any motion (flow) at the maximum expected actuator pressure. Generally it is recommended to use a setting of 1.3 multiplied by the maximum load pressure.
• Use low pilot ratios (3:1 and 4.25:1) for applications where loads may vary widely. Low pilot ratios require higher pilot pressure and are less efficient but provide stable, precise control for varying loads. # Standard
• Use high pilot ratios (8:1 and 10:1) for applications where loads are relatively constant. High pilot ratio valves require lower pilot pressure, have faster response, and are more efficient, but lack stability and precision in response to varying loads.
• Do not oversize counterbalance valves. There is no pressure drop operating limit for counterbalance valves and in fact some pressure drop is required to maintain valve operation.
• Locate counterbalance valves at or near the actuator to provide maximum load holding protection in the event of hydraulic line failure.
• Do not use counterbalance valves with closed-center directional control valves. Pressure trapped between the directional control valve and the actuator can pilot the counterbalance valve open and result in undesired load motion.

Do not use counterbalance valves with tandem-center directional control valves.
