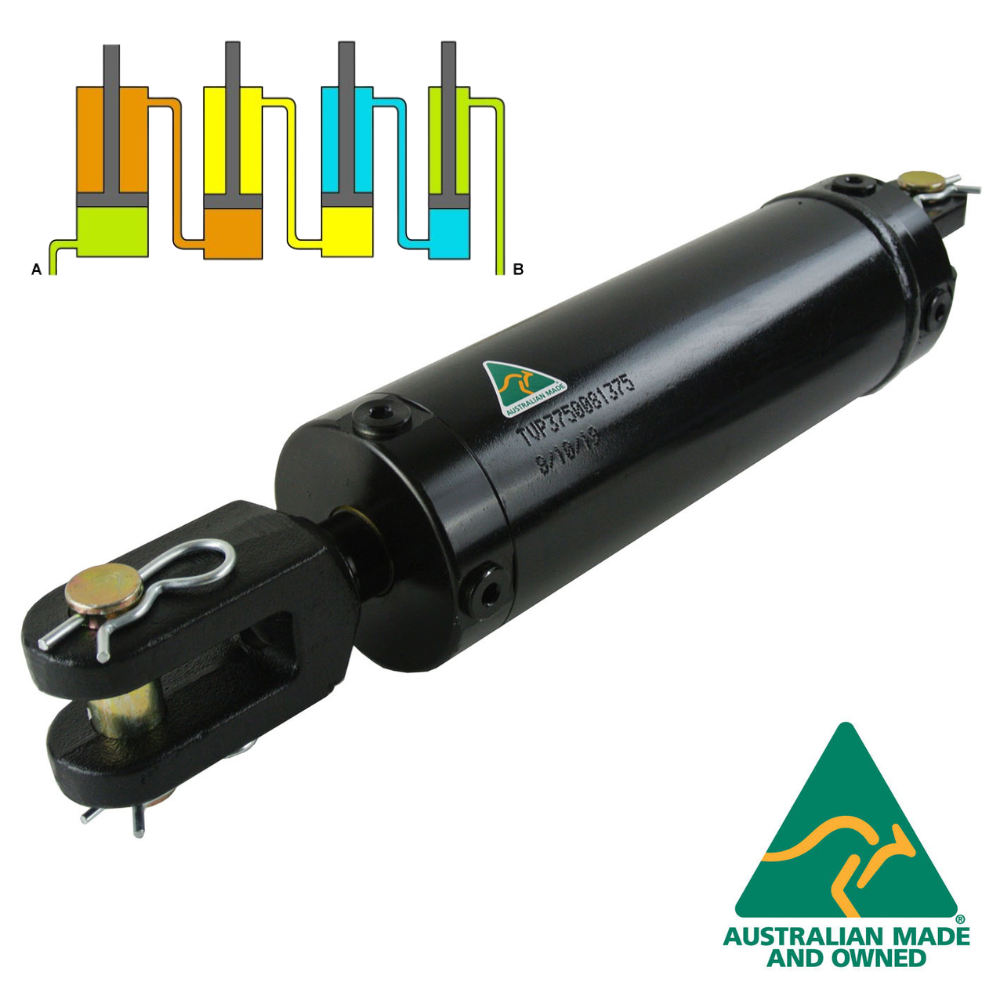

Hydraulic Phasing Cylinders from 3 - 5" bore 36" stroke.
SKU TVP36
AU$1 177.00
🔥 EOFY SALE!
36"
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Hydraulic Phasing Cylinders from 3 - 5" bore 36" stroke.
Product Details
Brand: TUFF
Weight: 42.00 kg
Australian made Hydraulic phasing Cylinders from 3 to 5"bores 7.9 to 25 Tons force all with 36" Stroke
Product Details
Weight: 42.00 kg (Estimated - will vary slightly based on bore)
Phasing Cylinders Australian Made with 36” Stroke available to be connected in series to produce synchronised extension and retraction of a series of multiple cylinders.
Available in bores from 3" to 5" inches in 1/4" bore increments, lifting forces from 7.9 to 25.3 tons at 3000 psi (Note: Forces are the same as 8" stroke for a given bore).
Phasing cylinders are ideal for: construction and agricultural applications where you need to lift or lower independent, long or large loads evenly when plumbed in series.
One irritating fact with normal AG style hydraulic cylinders: is that they will never move at the same rate as each other when plumbed up in a series. This is due to slight tolerance differences, seal age differences etc.
The oil pressure will always go wherever there is the least resistance, so if one cylinder's seals are a little worn, or pushing weight is less, that ram will extend at a faster rate.
Phasing cylinders are one solution that will ensure all cylinders extend & retract at the same rate: This is made possible because the oil volume sizes are precisely worked out for each ram by changing rod diameter, & cylinder bore.
How to choose your phasing rams correctly:
First establish your Stroke required: ie 8" or 12” or 16" or 18" or 24” or 36” or more. You must then choose all other matching rams in this same ‘Stroke’ range.
Then decide how many rams: are required.
Then choose your ‘Master’ ram size: (the larger the ‘bore’ size, the more tonnage available please see chart or drop down menu)
Then, pick your next ‘slave’ ram: as the next bore size down from the Master. Continue going down one bore size at a time for multiple phasing rams.
Bleeding the system: Our phasing cylinders have a internal poppet on the piston that allows oil to flush through the cylinders when fully extended this will bleed cylinders automatically.

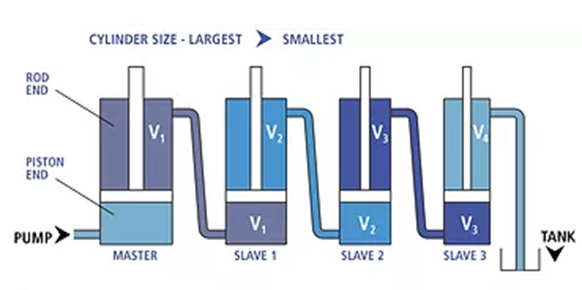

How do Phasing Cylinders Work: Phasing cylinders are engineered with matching internal volumes to eliminate uneven movement.
During operation, the fluid displaced from the rod end of the preceding larger cylinder supplies the fluid to the piston end of the following smaller cylinder. Matching the corresponding internal rod end and piston end volumes ensures the cylinders in series extend and retract simultaneously thus eliminating uneven Movements.
Key Takeaway:
When the hydraulic system is fed from the largest cylinder (5" bore for example) the initial force generated is the highest. As the oil flows to the progressively smaller cylinders, the force each cylinder can exert decreases due to the smaller effective piston areas.
(Please see table below or the Drop down size menu - Note: Force values remain the same as the 8" stroke cylinders for each bore size).
However, the speed of extension and retraction for all cylinders in a correctly designed phasing system will remain synchronised due to the engineered volume relationships. and therefore the 36" stroke and speed will be maintained across all cylinders.
Expected Forces of different Phasing Cylinders with different bore diameters:
Summary of Forces (Starting with a 5" Bore at 3,000 psi oil feed)
- 5" Bore (Master): 24,3 metric tons
- 4.75" Bore: = 21.7 metric tons
- 4.5" Bore: = 19,24 metric tons
- 4.25" Bore: = 17,29 metric tons
- 4" Bore: = 15,08 metric tons
- 3.75" Bore: = 13 metric tons
- 3.5" Bore: = 11,42 metric tons
- 3.25" Bore: = 9,62 metric tons
- 3" Bore: =7,95 metric tons
36 Inch Phasing Cylinders Female Clevis Each end with 1" Pins
| Part # | Bore | Stroke | Force in tons @ 3,000 PSI | Rod Diameter | Weight (kg) | Closed (inch) | Closed (mm) | Open (inch) | Open (mm) |
|---|---|---|---|---|---|---|---|---|---|
| HOTVP300036125 | 3.00" | 36" | 7.9 | 1.25" | 29 | 48.25 | 1225.55 | 84.25 | 2140.95 |
| HOTVP325036125 | 3.25" | 36" | 9.6 | 1.25" | 31 | 48.25 | 1225.55 | 84.25 | 2140.95 |
| HOTVP350036125 | 3.50" | 36" | 11.4 | 1.25" | 38 | 48.25 | 1225.55 | 84.25 | 2140.95 |
| HOTVP3750361375 | 3.75" | 36" | 13 | 1.375" | 40 | 48.25 | 1225.55 | 84.25 | 2140.95 |
| HOTVP4000361375 | 4.00" | 36" | 15 | 1.375" | 42 | 48.25 | 1225.55 | 84.25 | 2140.95 |
| HOTVP4250361375 | 4.25" | 36" | 17.3 | 1.375" | 44 | 48.25 | 1225.55 | 84.25 | 2140.95 |
| HOTVP450036150 | 4.50" | 36" | 19.2 | 1.50" | 47 | 48.25 | 1225.55 | 84.25 | 2140.95 |
| HOTVP475036150 | 4.75" | 36" | 21.7 | 1.50" | 51 | 48.25 | 1225.55 | 84.25 | 2140.95 |
| HOTVP500036150 | 5.00" | 36" | 25.3 | 1.50" | 54 | 48.25 | 1225.55 | 84.25 | 2140.95 |
Please see our other listings for 8", 12", 16", 18", 24" stroke phasing cylinders.
Phasing Cylinders Australian Made 8” Stroke 3" to 5" bore
Phasing Cylinders Australian Made 12” Stroke 3" to 5" bore
Phasing Cylinders Aussie Made 16” Stroke in 3" - 5" Bore
Freight - Australia wide We can ship from either Brisbane or Melbourne.
Please note that the quoted freight price may be subject to a surcharge for remote locations.
We will call to discuss this with you if it applies to your address.
We are also happy to quote freight for multiple items,
please email us at sales@mhfgc.com.au
or call us on (07) 5563 1982 or on 1300 1 HOSES
