Hi-Lo Log Splitter Pump complete with bell house & half couplers
This is a high-quality, cast iron hydraulic Log Splitter pump, complete with a bell house & half couplers. This is ready to bolt on to your 10 Hp plus honda type motor, as long as it has a 1" shaft.
This pump is a Hi-Lo unit, which means it closes your blade quickly, then produces maximum PSI to split the wood, giving you maximum speed & splitting force for little HP. It is rated to 3600RPM max. This pump requires a minimum of 10 HP to make maximum tonnage (tonnage will differ depending on the ram bore used, larger bore = more tonnes). This bell housing is designed to fit Hondas with 1" shafts & most copies. It includes 2 half couplers & rubber spider to join shafts. All you require will be bolts.
Specifications
This Hi Lo pump will produce up to 17gpm / 60Lpm @ 3500rpm,
As it touches the wood, it will drop to Lo function & will produce up to 5000psi / 333 bar
The four bolt holes have 50mm centers & the round 'spiggot' measures 42mm
1" SUCTION BARB
1/2" BSP tapered pressure port.

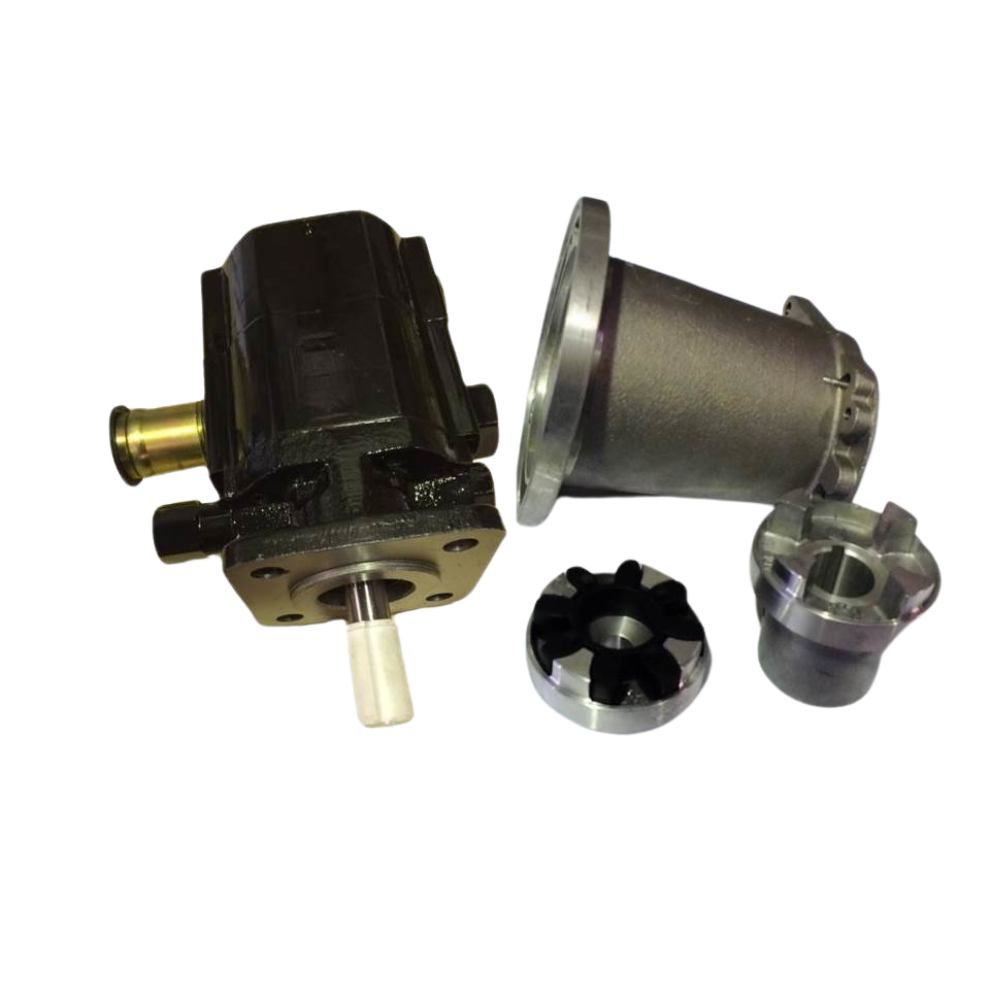

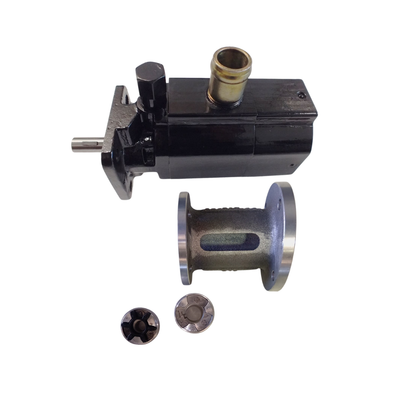

What you will get
Hi Lo pump Cast iron
Bell housing
1" half coupler
1/2" half coupler
Rubber Spider
Bell houses are what are used to 'connect' pumps to motors.
The pump shaft is a 1/2". We sell a 1/2" pump-side coupling.
Tax invoices are supplied with every purchase
Emails will be answered within normal business hours (ie: 8.30 am - 5.00 pm M-F)
