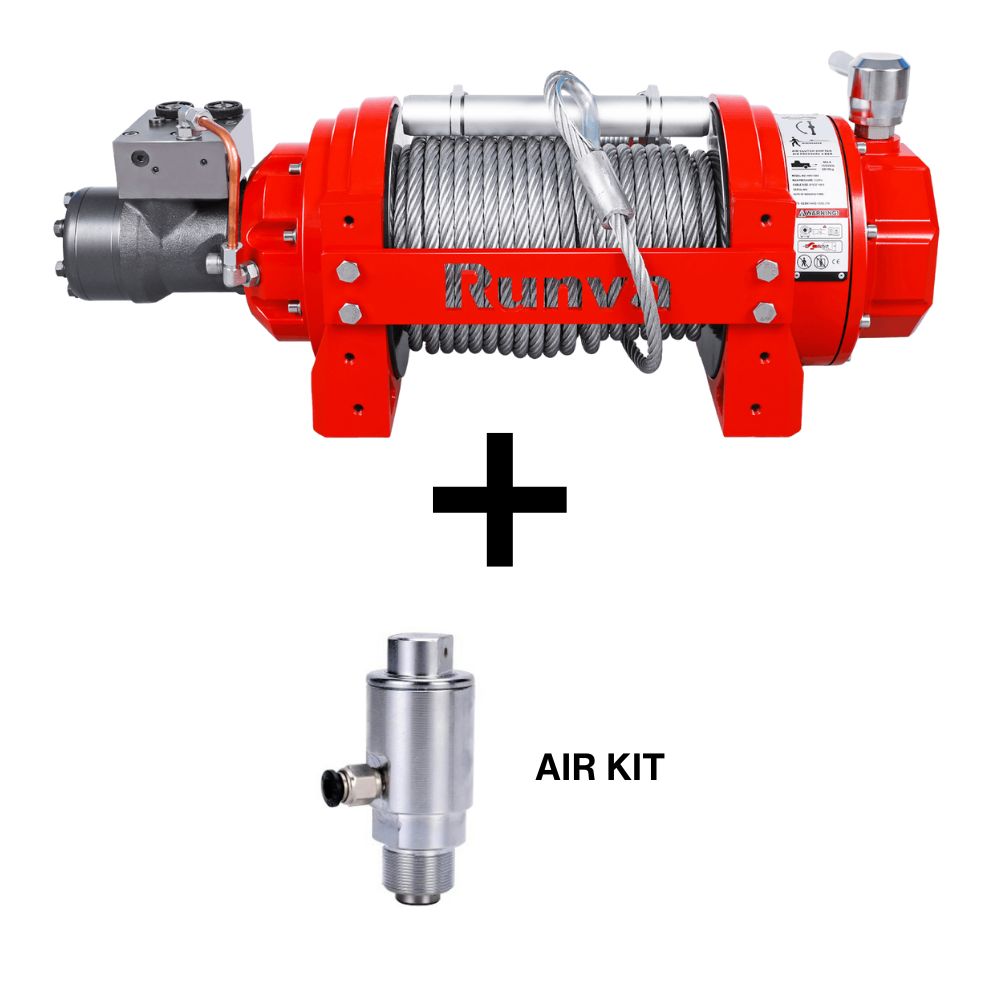

HWV15000 – 15,000lb Commercial Hydraulic Winch (Manual Model – Air Clutch Add-On Available)

The HWV15000 is a high-performance commercial-grade hydraulic winch engineered for demanding industrial, recovery and off-road applications. This listing is for the manual clutch version, with the Air Clutch available separately as an optional upgrade. The manual clutch features a smooth 180° internal rotation and is easy to operate, while the optional Air Clutch kit allows for remote pneumatic clutch activation when required. Delivering an impressive 15,000lb (6,804kg) of pulling capacity, the HWV15000 features a wide drum and only three layers of cable, enabling a higher minimum pulling force compared to the HWN15000I. Built to European EN standards, this model is one of the hardest-working hydraulic winches and is trusted for continuous commercial duty. A factory-installed cable tensioner keeps the steel cable tidy and evenly spooled during operation for improved performance and safety. The wet-type hydraulic disc brake provides automatic load holding, and the full steel two-stage planetary gearbox ensures durable, efficient torque transfer under heavy loads. With full IP67 waterproofing, this winch is designed for operation in mud, water, snow, salt and harsh environmental conditions. It is ideal for tow trucks, recovery vehicles, Unimog and Iveco expedition trucks, forestry equipment, marine applications, industrial machinery and portable hydraulic systems. For users requiring remote operation, an optional accessory kit is available including a handheld or wireless remote, directional control valve (12V or 24V) and valve block.

Key Features

• 15,000lb Hydraulic Pulling Capacity
• Wide Drum Design with Only Three Cable Layers for Higher Minimum Pull Force
• Manual Clutch Operation with Optional Air Clutch Upgrade Available Separately
• Factory-Fitted Cable Tensioner for Clean and Controlled Spooling
• Automatic Wet-Type Hydraulic Disc Brake for Secure Load Holding
• Full Steel Two-Stage Planetary Gearbox for Strength and Longevity
• IP67 Waterproof Rating for Harsh Environments
• Ideal for Tow Trucks, Unimog/Iveco Expedition Rigs, Marine and Industrial Applications

Technical Specifications

Rated Line Pull: 15,000lb (6,804kg)
Motor Displacement: 160ml/r
Oil Flow Requirement: 25–60 L/min
Pressure Requirement: 16MPa
Gear Train: Full steel, 2-stage planetary
Gear Ratio: 17.3:1
Brake: Automatic hydraulic disc
Clutch: Stainless steel rotary clutch (Air Clutch optional, sold separately)
Cable: 12mm × 26.5m steel cable
Drum Size: 127mm × 266mm
Mounting Bolt Patterns: 303.5mm × 114.3mm and 368.5mm × 171.2mm (8 × M12)
Overall Dimensions: 735mm × 300mm × 277mm
Ingress Protection: IP67
Finish: Red powder coat
Warranty: Limited 18-month commercial warranty
SKU: HWV15000S

Performance

0kg – 2.0MPa, 10 L/min, 1.3 m/min
3,629kg – 9.2MPa, 20 L/min, 2.6 m/min
4,536kg – 11.5MPa, 40 L/min, 3.8 m/min
5,448kg – 14.0MPa, 40 L/min, 5.1 m/min
6,810kg – 17.5MPa, 50 L/min, 6.4 m/min
Rated Line Pull by Layer: 1st – 15,000lb, 2nd – 12,791lb, 3rd – 11,150lb. Total Rope on Drum: 26.5m.

Optional Accessories

Air Clutch kit (sold separately), wired remote, wireless remote, 12V/24V directional control valve, valve block.

Ideal Applications

Tow trucks, recovery vehicles, Unimog and Iveco expedition vehicles, forestry machinery, marine systems, industrial machinery, portable hydraulic machines and agricultural equipment.
