Two lever, one spool auto retract log splitter valve

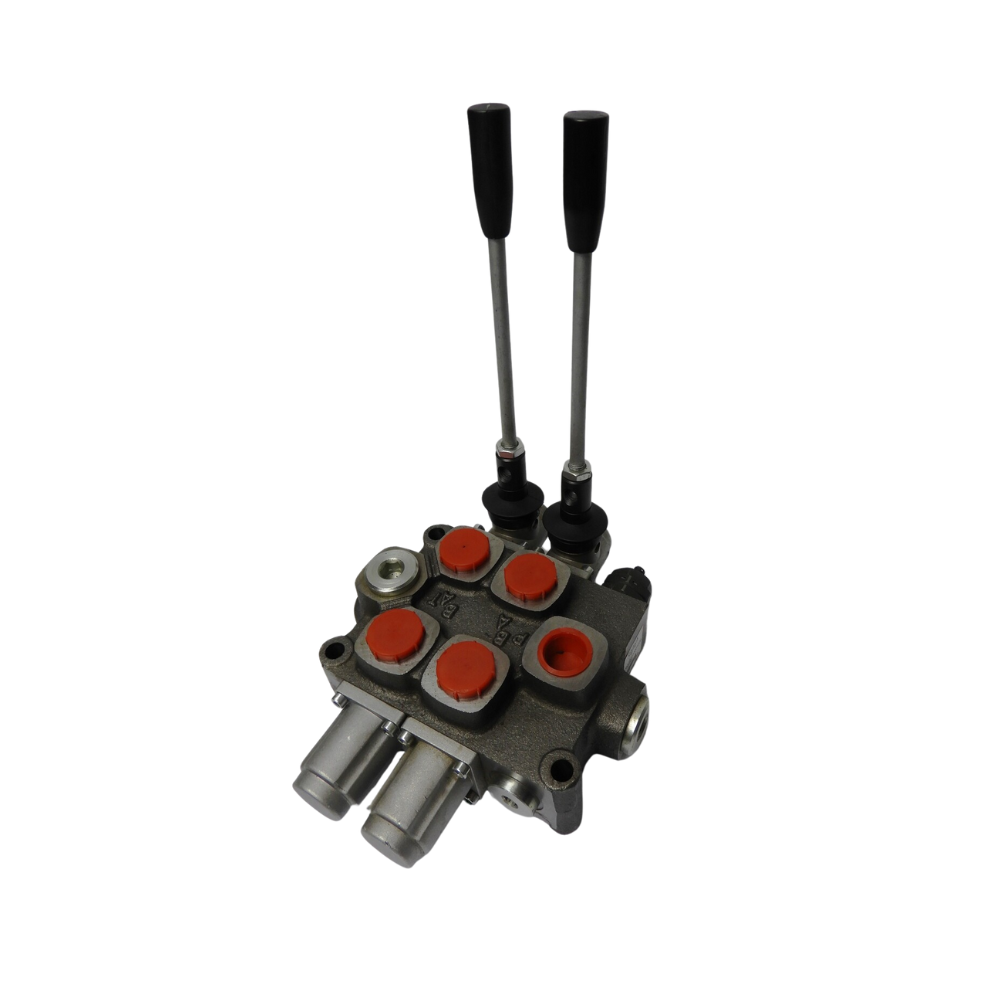

This is a brand new high-quality Italian-made Galtech Q 75 2 spool, 90Lpm valve. It is designed for one lever to be used for log splitting. The auto retract lever is detented when you push back the lever. Once the cylinder has retracted, this lever will jump back to neutral. You then must hold it down to split next log. The second lever is for a table lift ram. It is double acting.

Technical Data
1/2" BSP service ports
1/2" BSP P Ports
3/4" Bspp T Port
Max Flow:90l/min

Relief Valve set at 150 bar and fully adjustable 30 bar-280 bar
Max Pressure:300 Bar
Max Tank Pressure: 25 Bar
Operating Temperature: -10°C + 80°C
Specifications
Construction = Monoblock
Material of Construction = Steel
No of Spools = 2, 1 is auto retract, 1 is double acting

Material of Construction = Case Hardened Steel
O-rings made of NBR (Buna-N®)
Max Flow Rate = 90 liters/min (20 Gallons per Minute)
Max Working Pressure = 300 Bar (4500 PSI)
Spool Type = Cylinder. Motor Spools are also available
Spool Movement = Lever action, Spring Return to Center
Built-in Relief Valve = Adjustable (factory set at 2200 PSI)
Dimensions. Please refer to the photos,
Ports Sizes
Pressure Port 1/2" BSPP
Cylinder Ports 1/2" BSPP
Tank Port 3/4" BSPP
Operating temperature range: -20 °C to + 80°C
Dimensions
Weight 7 KG

Power beyond sleeve, gives the option to run a secondary valve downstream, by turning the 'T' port into a pressure port for the additional valve to feed off. With the power beyond the sleeve, they are assembled onto the “tank” port of the valve – this allows it to carry through the high pressure. When you assemble this sleeve, you would also have to remove the plug on top of the valve block for use as a tank line.
Please send us a message for different spool configurations, spool numbers, and costings
This a High-Quality Valve and has many outstanding features, including
the built-in adjustable relief valve
high performance
high efficiency
small volume
mass flow,
leak resistance.
In addition to compact size, these control valves have fixed and large pull rods to control direction,
Installation; As per photos, there are a choice of two pressure ports "P" (only use one), two "T"
