Gates GlobalSpiral JIC 37° Flare Male Multispiral Hose Tail
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Ultra High Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°/JIC Multispiral Hose Tails - Gates
SKU HTM-JIM-GA
AU$17.66
Bulk pricing available for quantities of 5 units or more
Configuration
Please choose
In stock
1
Buy more, save more
| Quantity | Price per item | Discount |
| 5 items | AU$16.78 | 5% off |
| 10 items | AU$15.89 | 10% off |
| 25 items | AU$15.45 | 13% off |
| 50 items | AU$15.01 | 15% off |
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

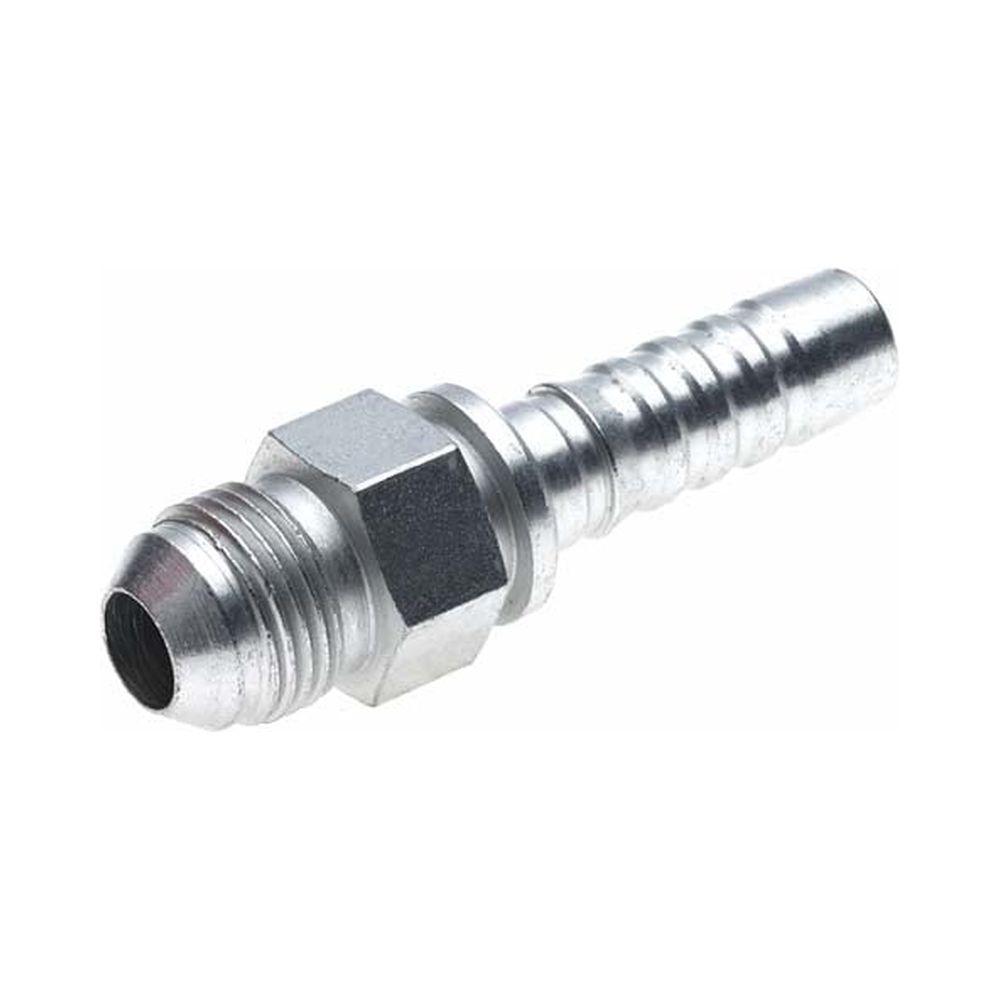

Gates GlobalSpiral JIC 37° Flare Male Multispiral Hose Tail
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Ultra High Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°/JIC Multispiral Hose Tails - Gates
Product Details
Brand: Gates
Weight: 0.10 kg
Gates GlobalSpiral JIC 37° Flare Male Multispiral Hose Tail

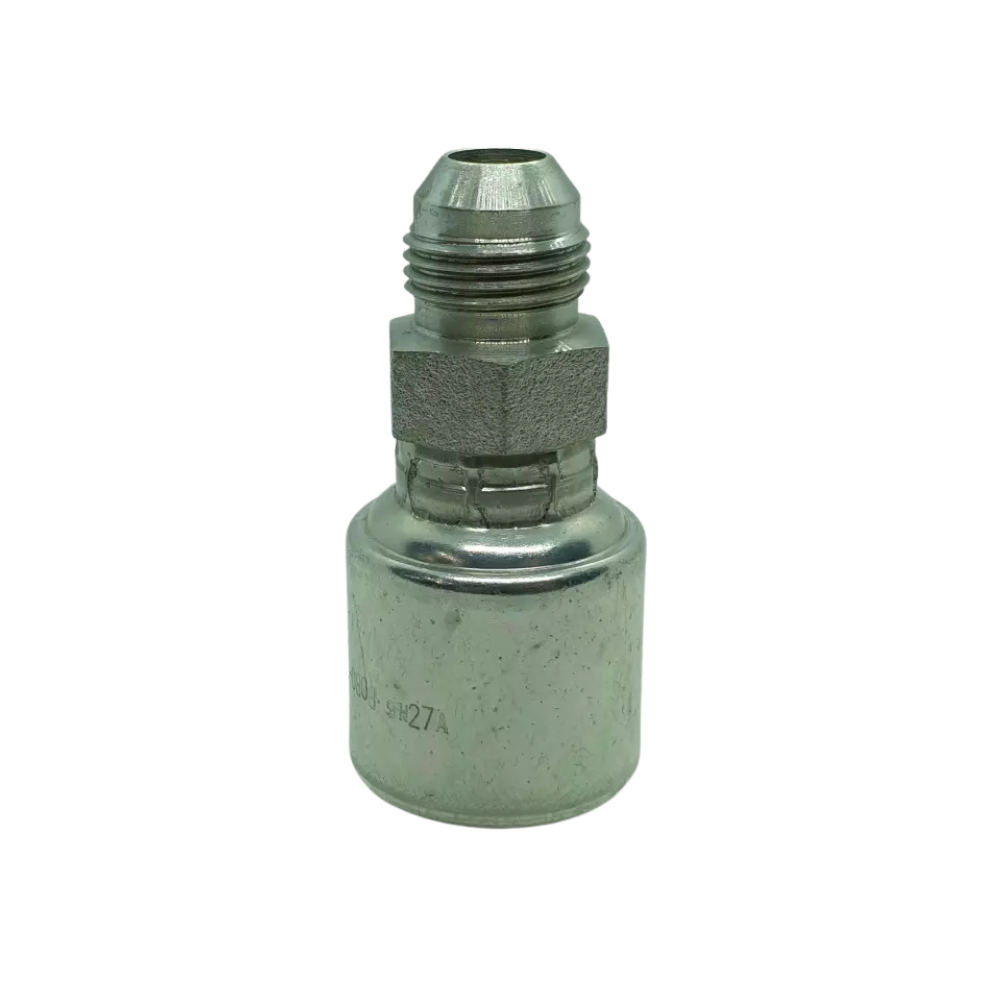

Genuine Gates GlobalSpiral™ jic 37° flare male multispiral hydraulic hose fitting, engineered for 4 & 6 spiral-wire hose (SAE 100R12 / R13 / R15, EN856 4SP / 4SH) — suits Gates EFG4K, EFG5K, EFG6K, M4K & M6K spiral hose. Available as Two-Piece (stem + matched Gates ferrule) and One-Piece couplings — every option clearly labelled.
Built for excavators, dozers, drill rigs and high-pressure mining & construction hydraulics. Crimp to genuine Gates specifications for a certified, leak-free connection — crimp charts available via the download link below.
Specifications
| Size | Type | Our SKU | Gates Part No | Gates Code | Barcode | L (mm) | Cut-off (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| (08) 1/2" x (14) 7/8" | 2-Pc | HTM-JIM-0814-GA | 8GS-10MJ | G20165-0810 | 72053302523 | 74.9 | 37.6 | 0.36 |
| (08) 1/2" x (12) 3/4" | 2-Pc | HTM-JIM-0812-GA | 8GS-8MJ | G20165-0808 | 72053302509 | 71.9 | 34.5 | 0.29 |
| (12) 3/4" x (17) 1-1/16" | 2-Pc | HTM-JIM-1217-GA | 12GS-12MJ | G20165-1212 | 72053396317 | 93 | 41.9 | 0.80 |
| (12) 3/4" x (21) 1-5/16" | 2-Pc | HTM-JIM-1221-GA | 12GS-16MJ | G20165-1216 | 72053396294 | 96 | 45 | 1.00 |
| (16) 1" x (21) 1-5/16" | 2-Pc | HTM-JIM-1621-GA | 16GS-16MJ | G20165-1616 | 72053297447 | 103.9 | 47.2 | 1.12 |
| (10) 5/8" x (17) 1-1/16" | 2-Pc | HTM-JIM-1017-GA | 10GS-12MJ | G20165-1012 | 72053399233 | 94 | 43.7 | 0.65 |
| (12) 3/4" x (19) 1-3/16" | 2-Pc | HTM-JIM-1219-GA | 12GS-14MJ | G20165-1214 | 72053396300 | 94 | 42.9 | 0.89 |
| (10) 5/8" x (14) 7/8" | 2-Pc | HTM-JIM-1014-GA | 10GS-10MJ | G20165-1010 | 72053399271 | 92 | 41.7 | 0.54 |
| (16) 1" x (26) 1-5/8" | 2-Pc | HTM-JIM-1626-GA | 16GS-20MJ | G20165-1620 | 72053297164 | 108.5 | 51.8 | 1.50 |
| (20) 1-1/4" x (26) 1-5/8" | 2-Pc | HTM-JIM-2026-GA | 20GS-20MJ | G20165-2020 | 72053437355 | 125 | 53.9 | 2.33 |
| (24) 1-1/2" x (30) 1-7/8" | 1-Pc | HTMO-JIM-2430-GA | 24GSM-24MJ | G24165-2424 | 770075389934 | 162.3 | 67.3 | 1.52 |
| (32) 2" x (40) 2-1/2" | 1-Pc | HTMO-JIM-3240-GA | 32GSM-32MJ | G23165-3232 | 770075524687 | 196.1 | 82.1 | 6.66 |
Download Gates crimp dimensions
Why buy from Hydraulic.Online?
- 100% genuine Gates GlobalSpiral™
- Barcodes & Gates part numbers listed for every size
- Bulk pricing from 5 units
- Fast dispatch Australia-wide
