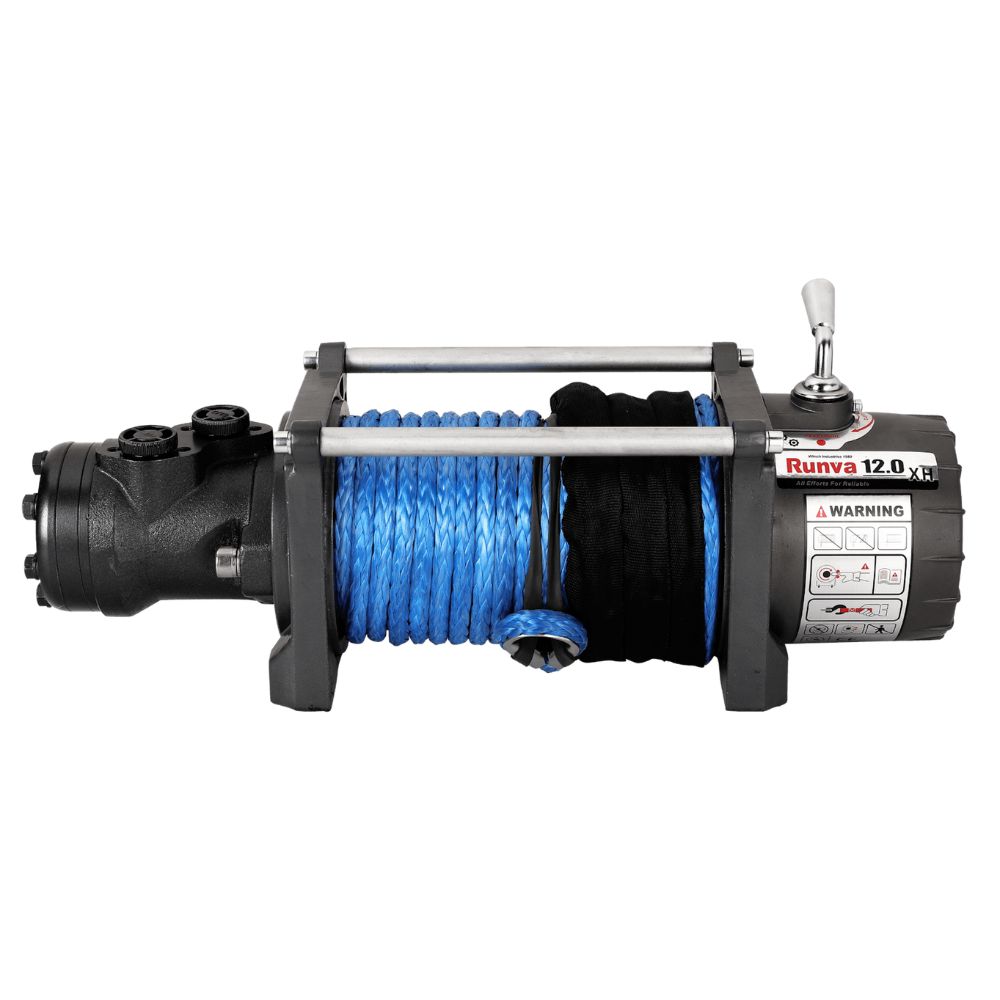

Runva HWX12000 – 12,000lb Compact Hydraulic Winch - Manual - (Synthetic Rope)

The Runva HWX12000 is the smallest and most compact hydraulic winch in the Runva range, delivering 12,000lb (5,897kg) of pulling power in a lightweight design. It operates efficiently on low-flow hydraulic systems (15–45L/min at 11MPa), making it suitable for a wide variety of vehicles and equipment. The patented two-stage planetary gearbox with a 28:1 ratio provides smooth and reliable pulling performance. When used with the optional directional control valve (12V included, 24V sold separately), the winch can be operated via a handheld remote for ease of use. This model is ideal for light-duty tow trucks, tippers, log splitters, recreational 4X4 vehicles and more. For 4X4 vehicles without existing hydraulics, a hydraulic specialist should be consulted, as power steering pumps generally do not provide enough flow. Being hydraulic, the HWX12000 can run far longer than electric winches if set up correctly, offering excellent durability and continuous-duty performance.

Key Features

• 12,000lb pulling capacity
• Compact and lightweight design
• Works on low-flow hydraulic systems
• Two-stage planetary gearbox (28:1)
• Automatic load-holding screw cone brake
• Synthetic rope (10mm × 25m)
• Fits most 4X4 winch bars and bullbars
• Optional directional control valve for remote use
• High duty cycle for extended operation

Technical Specifications

Rated Line Pull: 12,000lb (5,897kg)
Motor Displacement: 65ml/r
Oil Flow: 15–45L/min
Pressure: 11MPa
Gear Train: Full steel, two-stage planetary
Gear Ratio: 28:1
Clutch: Sliding ring gear
Brake: Automatic load-holding screw cone
Rope: 10mm × 25m synthetic rope
Drum Size: 63mm × 223mm
Mounting Bolt Pattern: 254mm × 114.3mm
Dimensions: 550mm × 174mm × 217mm
Finish: Grey powder coat
Warranty: 5-year motor, lifetime mechanical
SKU: HWX1200012VD

Performance

0kg – 2.0MPa, 5 L/min, 0.5 m/min
1,361kg – 3.3MPa, 10 L/min, 1.1 m/min
2,722kg – 7.2MPa, 20 L/min, 2.3 m/min
4,082kg – 9.2MPa, 35 L/min, 4.0 m/min
5,443kg – 11.0MPa, 45 L/min, 5.3 m/min
Rope on drum: 25.5m

Optional Accessories

Handheld remote, wireless remote, 12V/24V directional control valve, valve block.

Ideal Applications

Light-duty tow trucks, tippers, log splitters, 4X4 vehicles, agricultural equipment and portable hydraulic machines.

Why Choose Runva

Runva winches are known for strength, durability and long-duty performance, and the HWX12000 delivers reliable hydraulic pulling power in a compact package.
