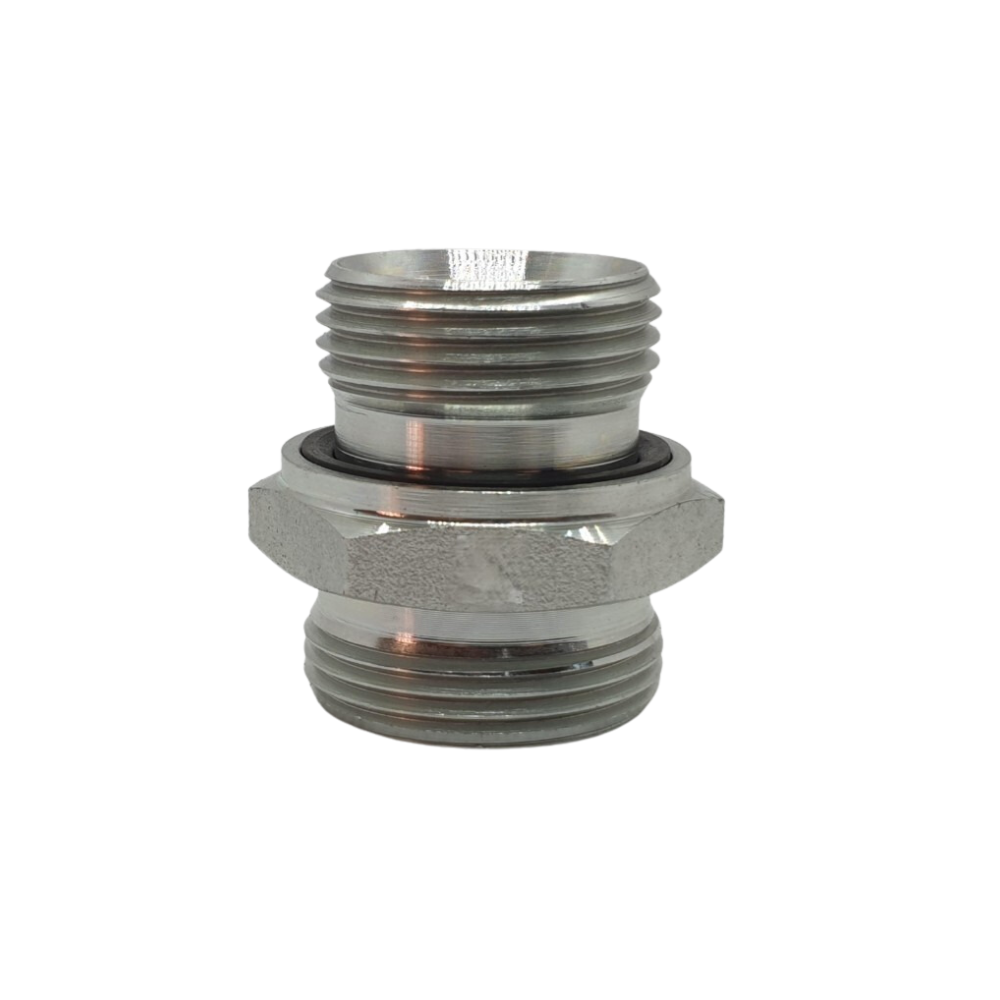

BSP Parallel Male x Metric Light (L) Male Straight Adaptor

BSPP to DIN 2353 light-series metric in a straight nipple. The everyday European-to-local crossover on return lines, drains and pilot lines where the light series is correct.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Parallel Male – BSPP to ISO 228. It seals on a bonded washer against the port face or on a 60° cone, never on the thread itself.

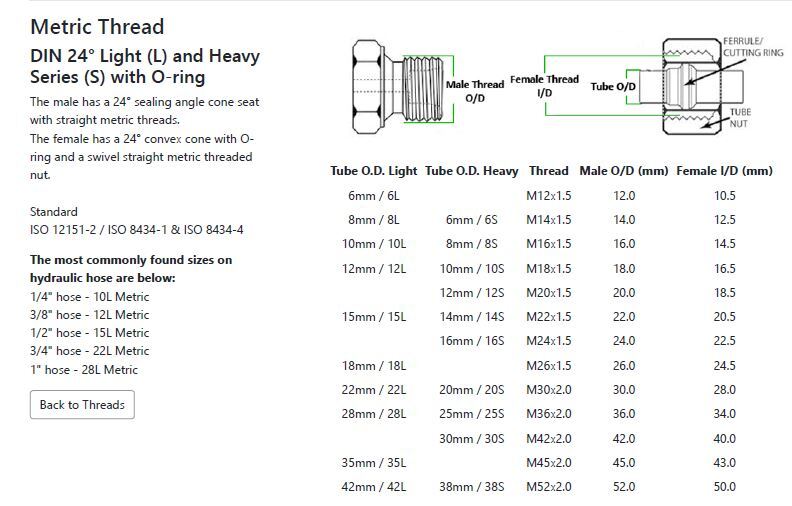

• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light series. It seals on the 24° cone, normally with an O-ring captured in the cone.

How to Choose

• Light series suits moderate pressure. If the original was heavy series, do not step down because the thread matches.
• Metric sizes refer to tube outside diameter, so a 12L suits 12mm tube.
• Bonded washer at the BSPP end, 24° cone at the metric end, no tape anywhere.

Technicians Advice

Check whether the mating metric cone carries a soft seal or runs bare metal and match it. A soft-seal cone against a hard-seal part feels tight and still weeps, because the O-ring carries no load and the metal faces were never meant to seal alone.

Where You’ll Find It

• BSP Parallel Male – Valve and manifold ports on Australian, British and Asian-built equipment, and most locally made hose ends. The default port thread on Australian truck and agricultural hydraulics.
• Metric Light (L) Male – European-built machinery – Liebherr, Wacker Neuson, Atlas, Sennebogen, Manitou – and imported tube assemblies. Light series suits return, drain and pilot lines.

Cross-Reference

• BSP Parallel Male – BSPP to ISO 228 / BS 2779, written G. Also called BSP parallel or gas thread.
• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker call this range EO and EO-2, historically branded Ermeto. Also called bite type.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
BPM-MLM-0212	M12x1.5 - 6L	1/8" BSPP	23.5mm	14mm	Mild steel	Plated finish
BPM-MLM-0214	M14x1.5 - 8L	1/8" BSPP	24.5mm	14mm	Mild steel	Plated finish
BPM-MLM-0216	M16x1.5 - 10L	1/8" BSPP	26mm	17mm	Mild steel	Plated finish

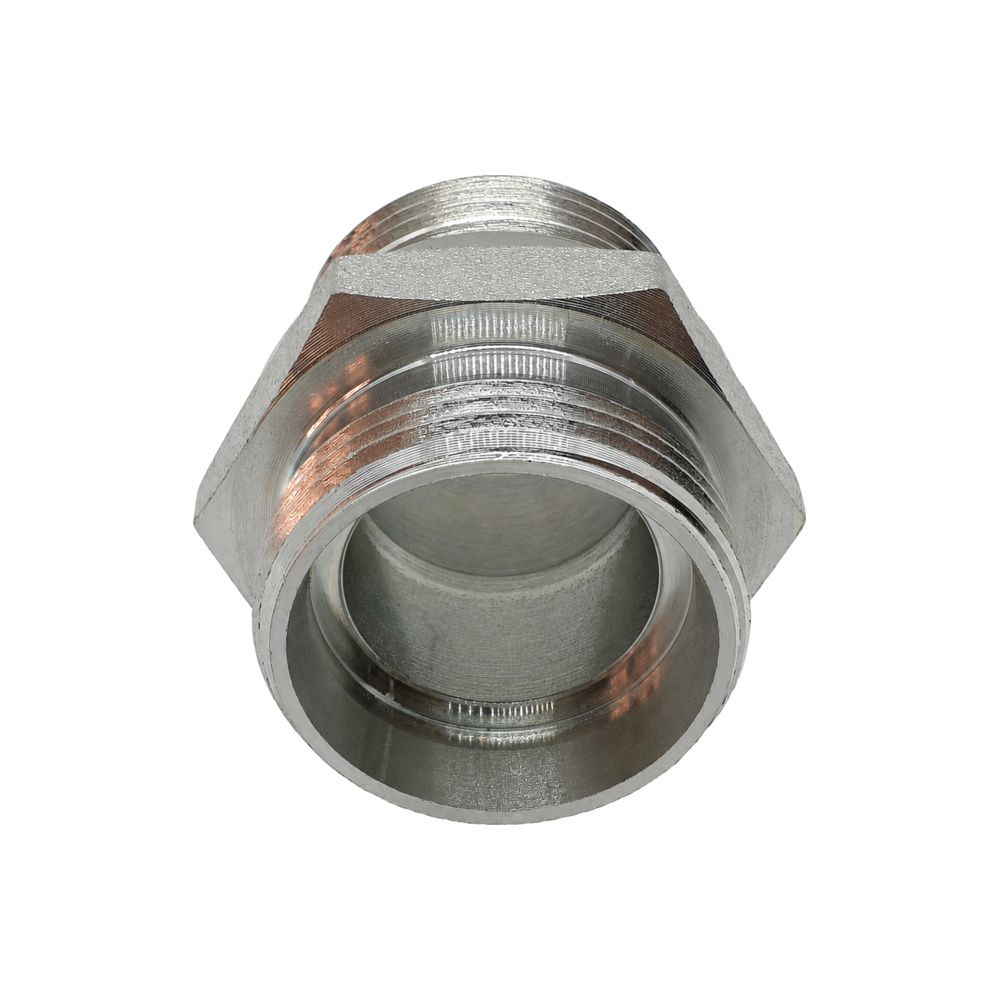

BPM-MLM-0412	M12x1.5 - 6L	1/4" BSPP	30mm	19mm	Mild steel	Plated finish
BPM-MLM-0414	M14x1.5 - 8L	1/4" BSPP	30mm	19mm	Mild steel	Plated finish
BPM-MLM-0416	M16x1.5 - 10L	1/4" BSPP	30mm	19mm	Mild steel	Plated finish
BPM-MLM-0418	M18x1.5 - 12L	1/4" BSPP	31mm	19mm	Mild steel	Plated finish
BPM-MLM-0612	M12x1.5 - 6L	3/8" BSPP	30.5mm	22mm	Mild steel	Plated finish
BPM-MLM-0614	M14x1.5 - 8L	3/8" BSPP	30.5mm	22mm	Mild steel	Plated finish
BPM-MLM-0616	M16x1.5 - 10L	3/8" BSPP	31.5mm	22mm	Mild steel	Plated finish
BPM-MLM-0618	M18x1.5 - 12L	3/8" BSPP	34mm	22mm	Mild steel	Plated finish
BPM-MLM-0622	M22x1.5 - 15L	3/8" BSPP	31.5mm	24mm	Mild steel	Plated finish
BPM-MLM-0814	M14x1.5 - 8L	1/2" BSPP	33mm	27mm	Mild steel	Plated finish
BPM-MLM-0816	M16x1.5 - 10L	1/2" BSPP	34mm	27mm	Mild steel	Plated finish
BPM-MLM-0818	M18x1.5 - 12L	1/2" BSPP	34mm	27mm	Mild steel	Plated finish
BPM-MLM-0822	M22x1.5 - 15L	1/2" BSPP	38mm	27mm	Mild steel	Plated finish
BPM-MLM-0826	M26x1.5 - 18L	1/2" BSPP	36mm	27mm	Mild steel	Plated finish
BPM-MLM-0830	M30x2 - 22L	1/2" BSPP	28mm	32mm	Mild steel	Plated finish
BPM-MLM-1222	M22x1.5 - 15L	3/4" BSPP	40mm	32mm	Mild steel	Plated finish
BPM-MLM-1226	M26x1.5 - 18L	3/4" BSPP	38mm	32mm	Mild steel	Plated finish
BPM-MLM-1230	M30x2 - 22L	3/4" BSPP	40mm	32mm	Mild steel	Plated finish
BPM-MLM-1236	M36x2 - 28L	3/4" BSPP	41mm	41mm	Mild steel	Plated finish
BPM-MLM-1630	M30x2 - 22L	1" BSPP	43mm	41mm	Mild steel	Plated finish
BPM-MLM-1636	M36x2 - 28L	1" BSPP	43mm	41mm	Mild steel	Plated finish
BPM-MLM-1645	M45x2 - 35L	1" BSPP	46.5mm	46mm	Mild steel	Plated finish
BPM-MLM-2045	M45x2 - 35L	1.1/4" BSPP	48mm	50mm	Mild steel	Plated finish
BPM-MLM-2052	M52x2 - 42L	1.1/4" BSPP	50mm	55mm	Mild steel	Plated finish
BPM-MLM-2452	M52x2 - 42L	1.1/2" BSPP	52mm	55mm	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 90° Compact – same threads
