Phasing Cylinders Australian Made 24” Stroke 3" to 5" bore
SKU TVP24
AU$766.00
🔥 EOFY SALE!
24"
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Phasing Cylinders Australian Made 24” Stroke 3" to 5" bore
Product Details
Brand: TUFF
Weight: 34.00 kg

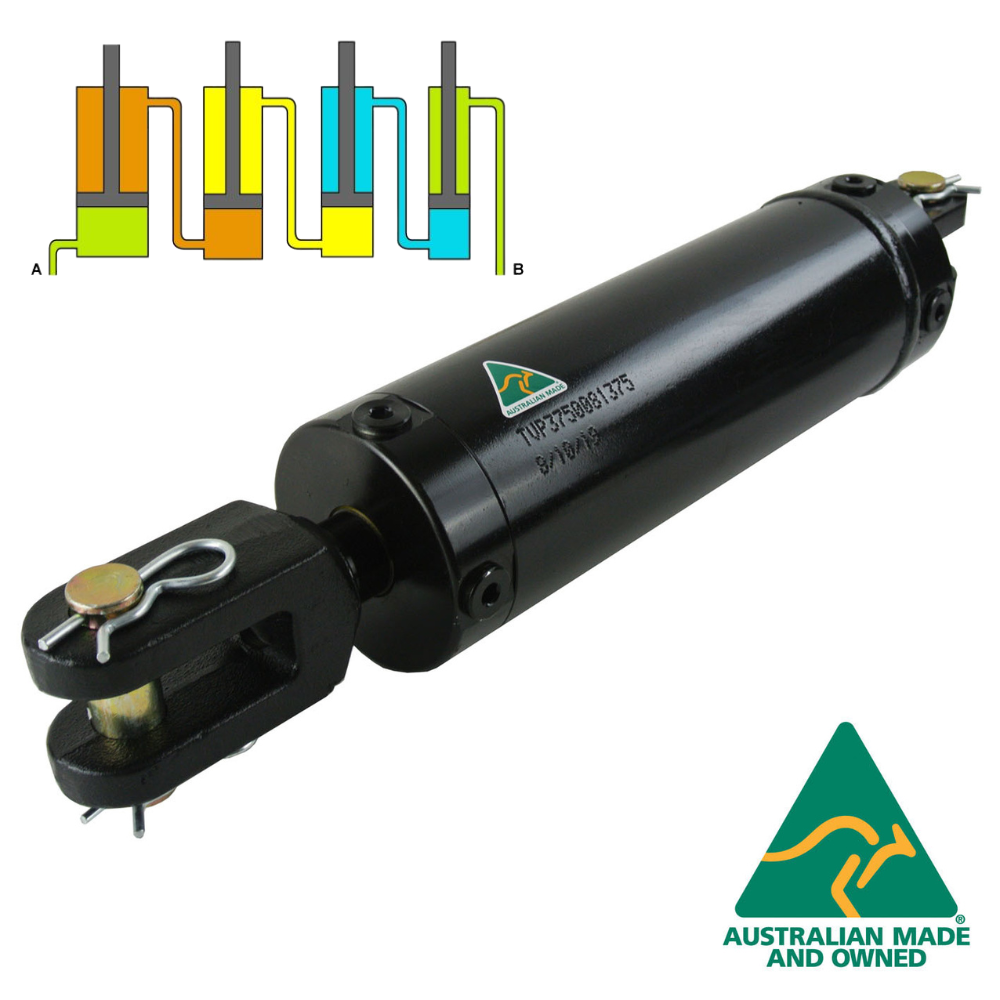

Australian made Hydraulic phasing Cylinders from 3 to 5"bores 7.9 to 25 Tons force all with 24" Stroke
Phasing cylinders are one solution that will ensure all cylinders extend & retract at the same rate: This is made possible because the oil volume sizes are precisely worked out for each ram by changing rod diameter, & cylinder bore.
Typical uses of Phasing Cylinders:
When you need to ensure the synchronised and even movement of multiple hydraulic cylinders connected in series, especially when lifting or moving large, long, or uneven loads. This prevents uneven extension / retraction due to minor differences in cylinder tolerances or load variations.
Phasing cylinders are used whenever consistent, simultaneous movement of multiple interconnected cylinders is critical for the application's function, safety, or precision.
Some examples in industry where Phasing Cylinders are used:
Transportation:
- Trailer Leveling/Suspension: Maintaining stability on specialized trailers.
Manufacturing:
- Parallel Press Movement: Ensuring even pressure distribution in large presses.
- Synchronized Assembly: Even movement of large components in automation.
Agriculture:
- Even Seeding: Maintaining consistent depth on wide seeding bars.
- Level Lifting and Lowering: Keeping cultivators and land levelers horizontal.
- Synchronised Harvesting: Even movement of cutting platforms.
- Consistent Spraying: Leveling sprayer booms for uniform chemical application.
Construction:
- Stable Elevated Platforms: Level and safe movement of scissor and boom lifts.
- Even Outrigger Deployment: Synchronised extension and or retraction on mobile cranes.
- Controlled Formwork Movement: Even placement of concrete forms.
- Level Lifting: Raising large structures evenly at multiple points.
Material Handling:
- Level Platform Lifting: Stable movement of large industrial lifts.
- Synchronized Carriage Movement: Even motion in automated storage systems.
- Even Tilting: Smooth and controlled tilting of large truck trays.
How to choose your phasing rams correctly:
First establish your Stroke required: ie 8" or 12” or 18” or 36" or in this case 24” or more.
You must then choose all other matching rams in this same ‘Stroke’ range.
Then decide how many rams: are required.
Then choose your ‘Master’ ram size: (the larger the ‘bore’ size, the more tonnage available please see chart or drop down menu)
Then, pick your next ‘slave’ ram: as the next bore size down from the Master. Continue going down one bore size at a time for multiple phasing rams.
Bleeding the system: Our phasing cylinders have a internal poppet on the piston that allows oil to flush through the cylinders when fully extended this will bleed cylinders automatically.
How do Phasing Cylinders Work: Phasing cylinders are engineered with matching internal volumes to eliminate uneven movement.

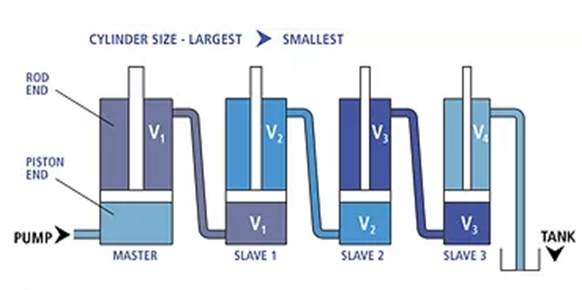

During operation, the fluid displaced from the rod end of the preceding larger cylinder supplies the fluid to the piston end of the following smaller cylinder. Matching the corresponding internal rod end and piston end volumes ensures the cylinders in series extend and retract simultaneously thus eliminating uneven Movements.
Key Takeaway:
When the hydraulic system is fed from the largest cylinder (5" bore for example) the initial force generated is the highest. As the oil flows to the progressively smaller cylinders, the force each cylinder can exert decreases due to the smaller effective piston areas.
(Please see table below or the Drop down size menu - Note: Force values remain the same as the 8" stroke cylinders for each bore size).
However, the speed of extension and retraction for all cylinders in a correctly designed phasing system will remain synchronised due to the engineered volume relationships. and therefore the 24" stroke and speed will be maintained across all cylinders.
Expected Forces of different Phasing Cylinders with different bore diameters:
Summary of Forces (Starting with a 5" Bore at 3,000 psi oil feed)
- 5" Bore (Master): 24,3 metric tons
- 4.75" Bore: = 21.7 metric tons
- 4.5" Bore: = 19,24 metric tons
- 4.25" Bore: = 17,29 metric tons
- 4" Bore: = 15,08 metric tons
- 3.75" Bore: = 13 metric tons
- 3.5" Bore: = 11,42 metric tons
- 3.25" Bore: = 9,62 metric tons
- 3" Bore: =7,95 metric tons
Please see our other listings for 8", 12", 18", 36" stroke phasing cylinders.
Phasing Cylinders Australian Made 8” Stroke 3" to 5" bore
Phasing Cylinders Australian Made 12” Stroke 3" to 5" bore
Phasing Cylinders Aussie Made 16” Stroke in 3" - 5" Bore
24 Inch Phasing Cylinders Female Clevis Each end with 1" Pins
| Part # | Bore | Stroke | Force in tons @ 3,000 PSI | Rod Diameter | Weight (kg) | Closed (inch) | Closed (mm) | Open (inch) | Open (mm) |
|---|---|---|---|---|---|---|---|---|---|
| HOTVP300024125 | 3.00" | 24" | 7.9 | 1.25" | 22 | 36.25 | 920.75 | 60.25 | 1530.35 |
| HOTVP325024125 | 3.25" | 24" | 9.6 | 1.25" | 25 | 36.25 | 920.75 | 60.25 | 1530.35 |
| HOTVP350024125 | 3.50" | 24" | 11.4 | 1.25" | 27 | 36.25 | 920.75 | 60.25 | 1530.35 |
| HOTVP3750241375 | 3.75" | 24" | 13 | 1.375" | 33 | 36.25 | 920.75 | 60.25 | 1530.35 |
| HOTVP4000241375 | 4.00" | 24" | 15 | 1.375" | 34 | 36.25 | 920.75 | 60.25 | 1530.35 |
| HOTVP4250241375 | 4.25" | 24" | 17.3 | 1.375" | 36 | 36.25 | 920.75 | 60.25 | 1530.35 |
| HOTVP450024150 | 4.50" | 24" | 19.2 | 1.50" | 37 | 36.25 | 920.75 | 60.25 | 1530.35 |
| HOTVP475024150 | 4.75" | 24" | 21.7 | 1.50" | 38 | 36.25 | 920.75 | 60.25 | 1530.35 |
| HOTVP500024150 | 5.00" | 24" | 25.3 | 1.50" | 41 | 36.25 | 920.75 | 60.25 | 1530.35 |
Freight Australia Wide
We ship from either Brisbane or Melbourne. Please note that the quoted freight price may be subject to a surcharge for remote locations.If this is the case we will call to discuss this with you if it applies to your address.
We are also happy to quote freight for multiple items, please call us on 07 5563 1982 or on 1300 1 HOSES
or email us at sales@mhfgc.com.au
MM 11/04/2025 $ abc SEO
