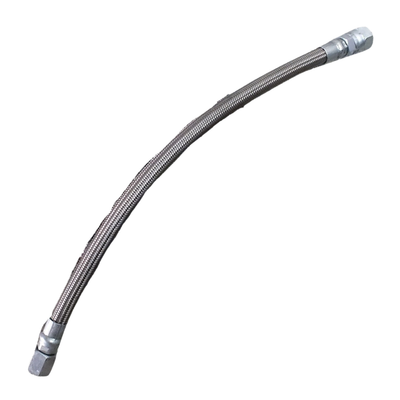

Inline Hydraulic Hose Burst Safety Valve Burst with oil Velocity type Cartridges 1/4 " to 1" BSPP

In-line burst valves is an important safety item to prevent a load from dropping when a hose is damaged.

The hose burst valve is open in the normal position and allows flow in both directions.

If there is excess flow velocity over the pre-set actuating flow rate as a result of a burst hose for example, the valve quickly closes and blocks the flow from port 1 to port 2.

You can specify with your order what flow rate you want these set by us, or you can set it on-site with ease.

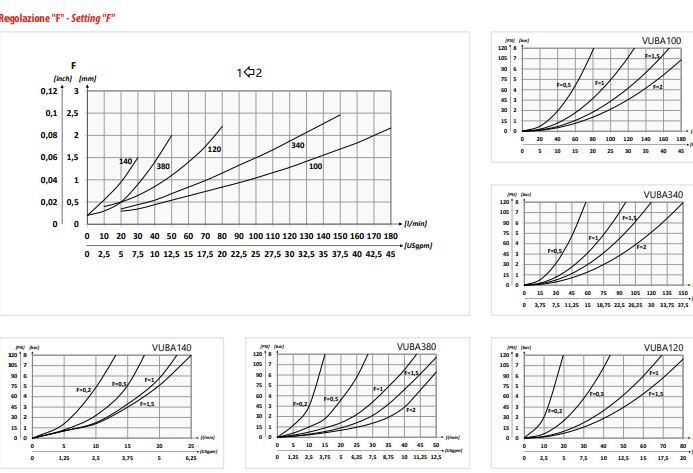

Consult the attached flow/set chart.

Available with a BSPP Female / Female ports in the housing or

BSPP Male / Female Ports in the housing.

You will receive both the cartridge body, & the burst valve.
