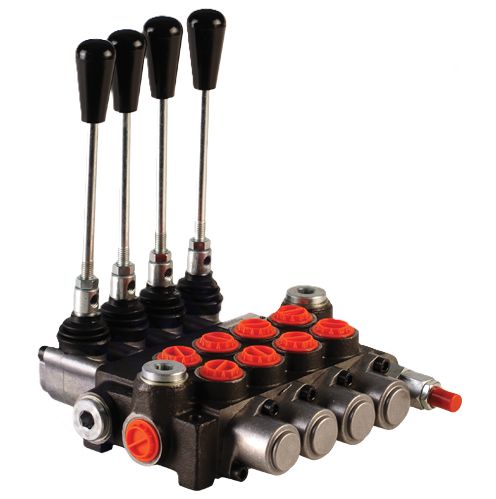

Directional Flow Control Valve 4 Spool 40 Lpm 315 Bar Monoblock EU Made BSPP Ports
Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves/40 Lt/min Monoblock Valves European made
SKU 04Z50-1-A1-GKZ1
AU$582.55
Power beyond plug
Please choose
Spool Options for Lever 1
Please choose
Spool Options for Lever 2
Please choose
Spool Options for Lever 3
Please choose
Spool Options for Lever 4
Please choose
Add Optional Spool Controls
Please choose
European-Made 4-Spool Monoblock Hydraulic Valve — 315 Bar, BSPP Ports, Spring-Return Levers
In stock: 19 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Directional Flow Control Valve 4 Spool 40 Lpm 315 Bar Monoblock EU Made BSPP Ports
Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves/40 Lt/min Monoblock Valves European made
Product Details
Brand: Badestnost Europe
Weight: 7.00 kg
The Badestnost Z50 is a heavy-duty, European-made monoblock directional control valve built for open and closed centre hydraulic systems.
This four-spool version gives you independent manual control over four separate hydraulic functions from a single compact valve block — well suited to excavators, multi-function loaders, industrial machinery, and any application where four circuits need to be controlled efficiently.
Rated for continuous operation at 40 L/min with a nominal maximum capacity of 50 L/min, and built to handle system pressures up to 315 bar (4,600 psi), this valve delivers solid, reliable performance in demanding professional environments.
Port Sizes Inlet (P), Outlet (T) & Power Beyond (N): G 1/2" BSPP
Work Ports (A & B) per spool: G 3/8" BSPP
Work Ports (A & B) per spool: G 3/8" BSPP
How It Works
Each of the four spools has its own independent spring-return lever. Push or pull each lever to direct oil to the corresponding cylinder or motor, and release to spring back to the neutral (centre) position, locking the load in place. All four levers can be operated simultaneously or independently.
A built-in adjustable pressure relief valve is factory set to 180 bar and protects your entire circuit from pressure spikes. A load check valve on the P port prevents back-flow and unintended load movement when all levers are in neutral.
Individual Load Check Valves The 4-spool Z50 is the largest body size available with individual load check valves per spool. This option prevents one circuit from back-feeding into another, and is recommended where two or more functions need to hold loads independently at different pressures. Individual load checks are not available on the 5 or 6-spool versions — if this feature is critical to your application, the 4-spool is the right choice.
Power Beyond Port (N) The N port allows a downstream valve to be connected for series circuit operation.
Please Note : When a Power Beyond sleeve (C2) if fitted to open this port. A dedicated tank return line must also always be used.
Spool Options
Each of the four levers can be configured independently. Select a spool type for each lever from the dropdown menus above:
Cylinder Spool (Standard — Spool A) Double-acting, 3-position. Work ports A & B closed in neutral. Best for hydraulic cylinders and rams where load holding is required.
Motor Spool (Spool D) Double-acting, 3-position. Work ports A & B open to tank in neutral. Best for hydraulic motors — allows coasting to a stop rather than abrupt locking.
Single Acting — P to A (Spool B) Oil directed to Port A only. Port B plugged. For single-acting cylinders with spring or gravity return.
Single Acting — P to B (Spool C) Oil directed to Port B only. Port A plugged. Reverse of Spool B configuration.
Cylinder Spool + Detent Cylinder spool with 3-position detent. Lever holds position without constant operator input.
Motor Spool + Detent Motor spool with detent. Suitable for continuous motor operation without lever hold.
Technical Specifications
📄 For complete dimensional drawings, circuit diagrams, spool options, and ordering codes, download the official spec sheet: Download Badestnost Z50 Specification Sheet (PDF) →
| Specification | Value |
|---|---|
| Manufacturer | Badestnost — European Made |
| Model | Z50 |
| SKU | 04Z50-1-A1-GKZ1 |
| Construction | Monoblock |
| Number of Spools | 4 |
| Hydraulic Circuit | Open and closed centre compatible |
| Circuit Options | Parallel body (common check) or parallel/tandem body (individual checks per spool — max 4 spools) |
| Rated Flow | 40 L/min (10.6 US gpm) |
| Nominal Max Flow | 50 L/min (13.2 US gpm) |
| Max Operating Pressure | 315 bar (4,600 psi) |
| Max Back Pressure | 35 bar (508 psi) |
| Relief Valve — Factory Setting | 180 bar (adjustable 120–250 bar) |
| Check Valve | Common load check on P port (standard); individual load checks per spool available on 4-spool only |
| Spool Diameter | 16 mm (0.63") — interchangeable |
| Inlet (P) & Outlet (T) Port | G 1/2" BSPP |
| Work Ports (A & B) | G 3/8" BSPP |
| Power Beyond Port (N) | G 1/2" BSPP (plugged as standard) |
| Actuation | Manual lever, spring-return to centre |
| Seal Material | NBR (Buna-N) — standard; FPM/Viton available |
| Hydraulic Fluid | Mineral-based oil |
| Fluid Temperature Range (NBR) | -20°C to +80°C |
| Fluid Temperature Range (FPM) | -20°C to +100°C |
| Ambient Temperature Range | -40°C to +60°C (mechanical actuation) |
| Fluid Contamination Tolerance | ISO 4406: -/19/16 (NAS Class 10) |
| Viscosity Range | 15–75 mm²/s (operating); 12–400 mm²/s (limits) |
| Mounting Bolt Centres | 167 mm (W) × 80 mm (D) |
| Body Dimensions (E × F) | 203 mm × 167 mm |
| Weight | 6.9 kg |
| Body Finish | Phosphated; steel parts zinc plated |
Compatible Options & Accessories
- Power Beyond Sleeve (C2) — required to open the N port for downstream valve connection
- Individual Load Check Valves — available on this 4-spool body only (not available on 5 or 6-spool); prevents cross-circuit back-feeding
- Tandem Circuit Body — available on 4-spool; routes flow sequentially rather than in parallel
- Regenerative Spool (Spool Us) — 4-position regenerative circuit for faster cylinder extension
- Alternative Actuation — pneumatic, electro-pneumatic, hydraulic, electro-hydraulic, solenoid, and flexible cable remote control options available on request
- FPM (Viton) Seals — for elevated temperature applications up to 100°C
Important: Improper selection, installation, or operation by persons without appropriate technical and mechanical training can result in damage to equipment, serious personal injury, or death. Ensure correct product selection before installation and always follow safe hydraulic system practices.
For technical assistance, custom configurations, or bulk pricing please contact our team.
📞 (07) 5563 1982 | ✉ sales@hydraulic.online | Mon–Fri 8am–5pm AEST
