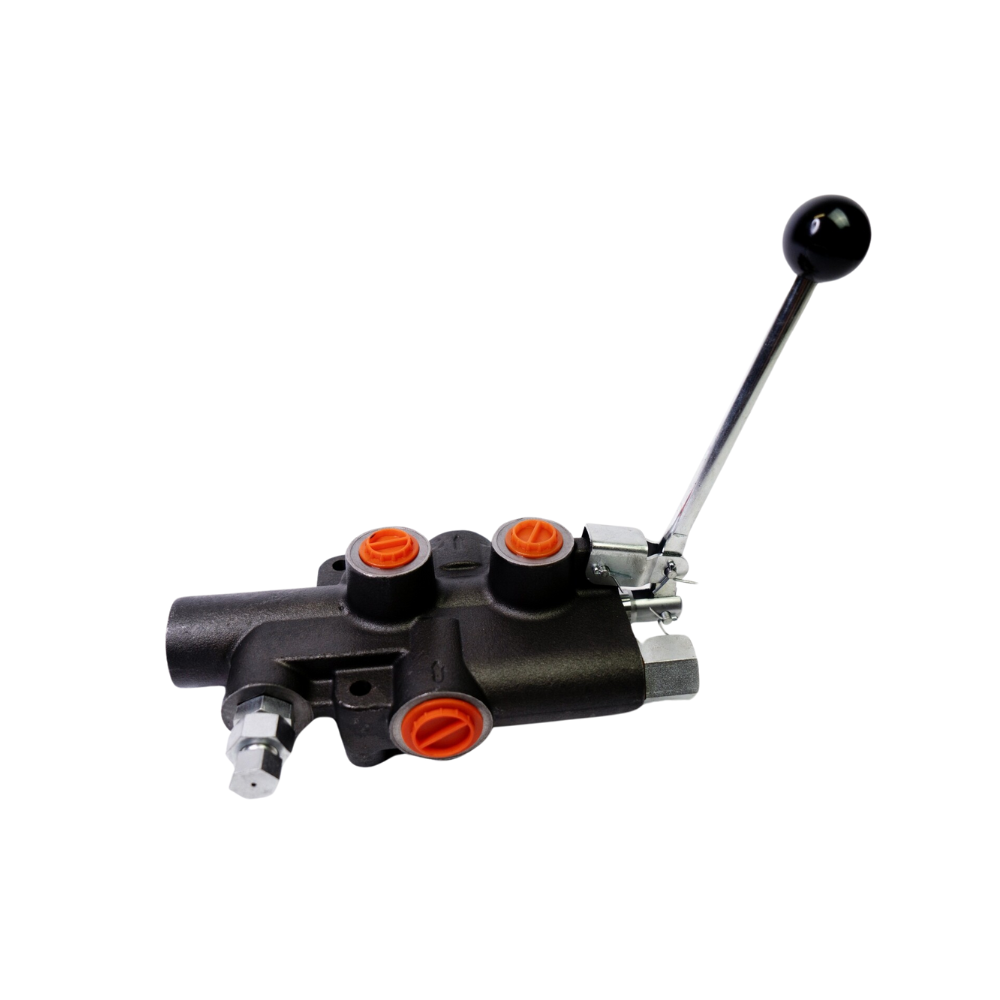

Badestnost P81/A2 Log Splitter Control Valve with "Auto Kick Out" on return.

Manufactured by Badestnost, this is a durable, heavy-duty designed monoblock control valve specifically engineered for wood splitting applications

This high-performance unit features a spring-to-centre mechanism from position 2 to position 0, and a detent in position 1 with a pressure release functionality known as "kick out".

What the above means is: you hold the lever to split the timber, then push the lever fully back into the detent position. The valve stays engaged while the ram retracts, and once it hits the preset pressure, the spool is automatically centred back to the neutral position

Performance Ratings

• Nominal flow rating: 80 Lt/min
• Operating pressure (max) at port P: 250 bar (3600 psi)
• Operating pressure (max) at work ports A&B: 315 bar (4600 psi)
• Maximum back pressure: 10 bar (150 psi)

Technical Specifications

• Inlet P and outlet T port threads: G1/2
• Working ports A and B threads: G3/4
• Main pressure relief valve: Fitted and factory set at 150 bar (2175 psi)
• Detent pressure release (kick out): Adjustable from 70 bar (1015 psi) to 140 bar (2030 psi)
• Default kick out factory setting: 70 bar (1015 psi)
• Fluid temperature operating range (with NBR seals): -20°C to 80°C

Operation & Diagnostic Steps

To set up the valve correctly, connect the B Port to the rod end of the cylinder. Connect the A port to the base port of the ram.

If you need to adjust the main pressure relief, remove the acorn nut and turn the adjusting screw.

Turning the adjusting screw clockwise will increase the pressure, while turning it counterclockwise will decrease the pressure

Technician’s Advice
For optimal operation and longevity, ensure your hydraulic fluid remains clean. The permissible degree of fluid contamination for this valve is 19/16 - ISO 4406[cite: 28].

When the spool is moved into the detent position, oil is directed to work port B[cite: 154]. When the system pressure matches the preset kick-out pressure, the spool is released from the detent and safely moves to the neutral position[cite: 154].
