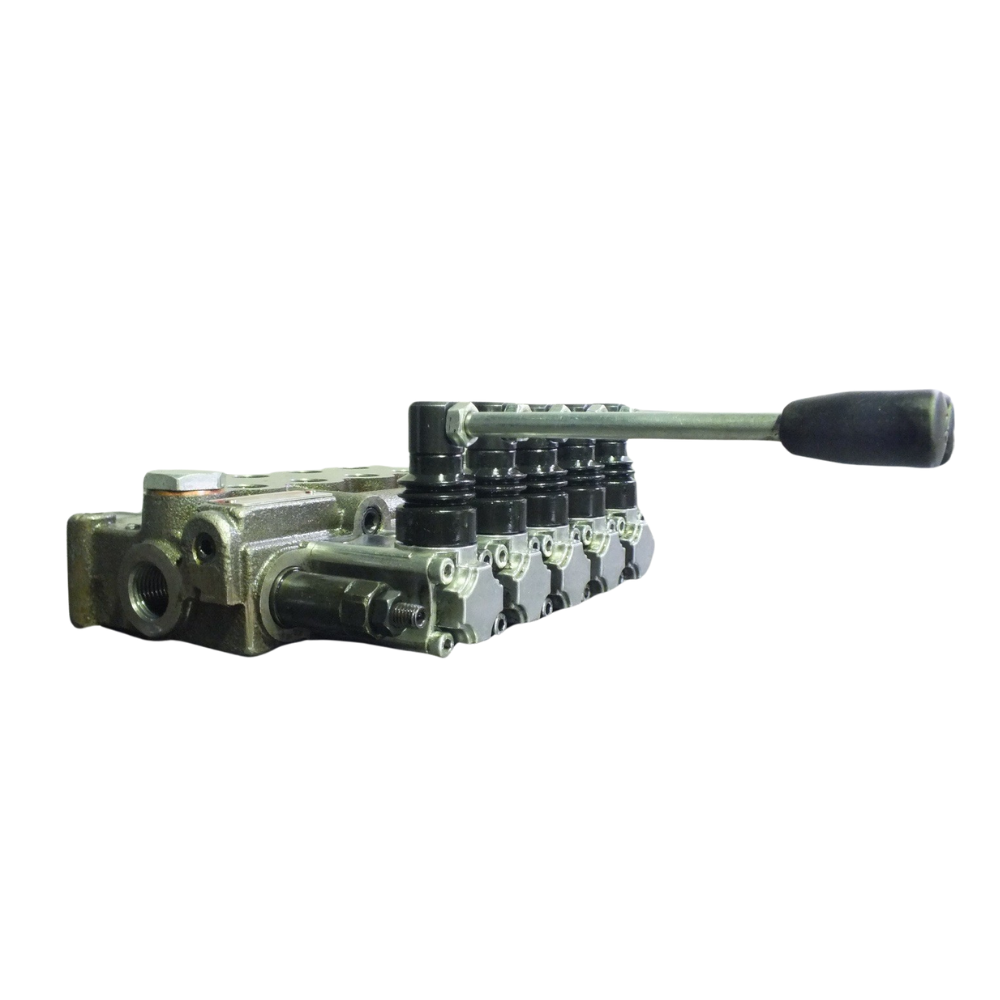

This is a brand new high-quality valve, it is designed for Tilt Tray Trucks, Cranes. Skip Bin Trucks, Front end Loaders, Backhoes or any application where you need to control 5 individual cylinders
Specifications
Manufacturer: Youli made in Taiwan
Model: MB3-5S
Construction = Monoblock
Material of Construction = Steel
No of Spools = 5
Material of Construction = Case Hardened Steel
O-rings made of NBR (Buna-N®)
Max Flow Rate = 45 liters/min (12 Gallons per Minute)
Max Working Pressure = 315 Bar (4500 PSI)
Spool Type = Cylinder. Motor Spools are also available $0 each. # You must message us!
Spool Movement = Lever action, Spring Return to Center. Detent Kits are also available at $27.
Built-in Relief Valve = Adjustable (factory set at 1800 PSI)
Ports Sizes
Pressure Port 3/8" BSPP
Cylinder Ports 3/8" BSPP
Tank Port 1/2" BSPP
Operating temperature range: -20 °C to + 80°C
Dimentions = L x W x H = 250 x 200 x 60 mm
Weight 10 KG
Many types of adaptor threads, hydraulic hose, and field fit hose fittings are available please see our other listings.
This is a High-Quality Valve and has many outstanding features, including.
the built-in adjustable relief valve
high performance,
high efficiency,
small volume,
mass flow,
leak resistance.
In addition to compact size, these control valves have fixed and large pull rods to control direction,
Various control options, manual, automatic, and or remote control methods are also available.
Motor Spool
Detent kit no spring return
Detent kit with spring return
Pneumatic spool control,
Hydraulic Control
Electric-solenoid control
Joystick cable control.
Features
Compact construction.
Low-pressure drop.
Long service life.
High efficiency.
Choice of various ports and circuit valves.
Spring return.
The high-accuracy spool is hardened for long-term accuracy.
Sub-plate mounting.
Handle shift operation.

Please send us a message for more information.
