Name: OILPATH Hydraulic Flow Control Valve 1-4 Spool 120L/M 315bar
Brand: OILPATH Australia
SKU: OP20
Price: 1102.0 AUD
Availability: InStock

OILPATH Hydraulic Flow Control Valves 120 Lt/min 1 to 4 spools

Store/Valves for Controlling and Directing Oil Flow and Pressure/Monoblock Directional Control Valves

Product Details

Brand: OILPATH

Weight: 15.00 kg

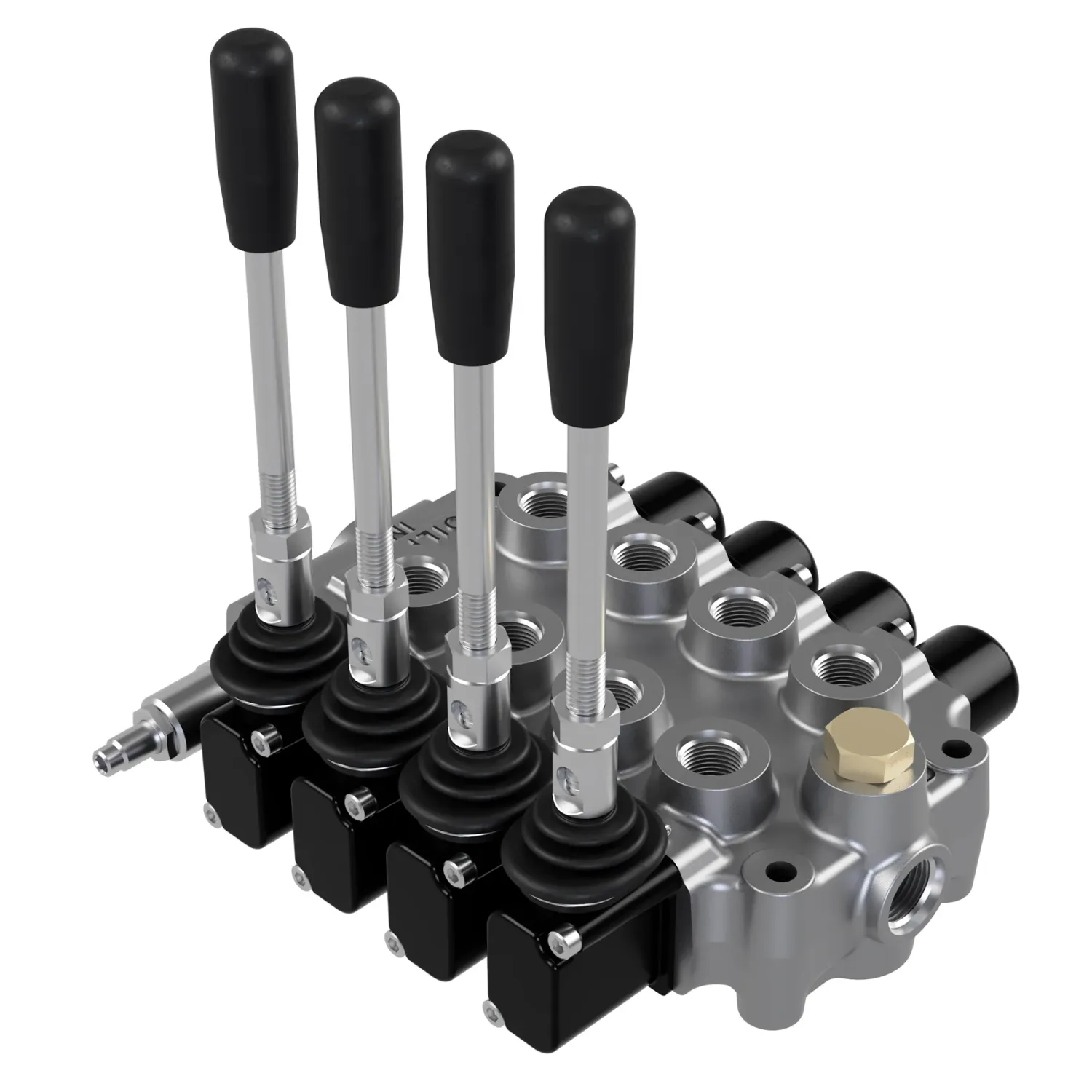

OILPATH Australia One to Four (1-4) Spools, Spring Centred Manually Actuated Hydraulic Flow Control Valves,
Steel Monoblock type.

Designed to Flow up to 120 Litres per Minute,
Oil Pressure rated to 315 bar (4,600 psi)
Designed and Made In Australia since 1975 !

Type: 1 to 4 spool Monoblock Hydraulic Flow control Valve
Double Acting Spools
7/8" UNO (UNF) ports on P, A, and B,
1" BSPP on T

Max Oil Flow 120 Lt/Min
Max Operating Pressure 315 bar (4,600 psi)

Take Command of Your Hydraulic Flow:

These high-performance Aussie made OILPATH Hydraulic Flow Control Valves are the key to precise flow management in your hydraulic system.

Features Designed and Built for Tough Aussie Conditions:

Monoblock Steel Design: Compact and robust construction for demanding applications.

One, Two, Three, or Four, Double Acting Spools: Will Control your System's Oil flow in both directions for maximum versatility.

7/8" UNO Pressure, A and B work ports, and 1" inch BSPP Tank Return Port : for easy integration with existing hydraulic hoses, pipes, and adaptors.

Compact Design: Ideal for Larger Hydraulic Oil Flows that require manually actuated Applications.

Fully Enclosed Handle Assembly: Oilpath's Valve Handles are Fully Enclosed to reduce the chance of corrosion affecting the handle mechanism.

Stronger corrosion-resistant parts: Lever Box and Spring End Cover are made from Impact resistant glass-filled nylon, for better knock protection and corrosion resistance than than Aluminium.

Precision Control at Your Fingertips: Fine-tune the flow rate by adjusting the movement of the lever to perfectly match you or your operator's needs.

Consistent performance: Delivers steady flows even under pressure changes.

Smooth operation: Built-in Adjustable Pressure relief Valve (set to 140 bar or 2,000 psi) ensures safe flow and eliminates System pressure spikes.

Spare Parts and Seal Kits: always available and in Stock

Why Choose OILPATH?

Australian-made: Since 1975 Engineered and Manufactured for our harsh Aussie conditions.

Reliable performance: Built with high-quality materials for long service life.

Simple to use: Easy installation and adjustment for any skill level.

Multiple Options: Various Spool Detent Kits, Relief Valve Options and pressures, Pneumatic Actuators, and Electric Limit Switches.

Applications:

Construction equipment
Agricultural machinery
Material handling
Industrial automation and more!

Don't settle for inconsistent flow. Upgrade to the OILPATH Directional flow control valves and experience the difference!

Order yours today!

Dont see Exactly what you are looking for?
Call Us on 07 5563 1982 or on 1300 1 HOSES or
by Email click here to email us

Specifications:

Valve Type: Cast Steel Monoblock with Heat Treated Alloy Steel Spool, lever actuated spring return
Double Acting A and B Port design.
Ports: 7/8" P, A, B, Ports, 1" inch BSPP Tank

Maximum Flow: 120 Litres Per Minute.

Maximum Pressure: 315 bar (4,600 psi)

Maximum Tank Port Pressure: 25 Bar (370 psi)

Disclaimer: Improper use can cause serious injury or damage. Ensure qualified personnel handle installation and operation.
