Joystick Control levers are mounted onto a monoblock valve that has two (2) or more spools.

With a Joystick control Lever, you will be able to have full control of two spools (or 2 functions) with only one lever.

A Joystick control lever when mounted on a monoblock valve makes it naturally much easier to control the flow of oil to two hydraulic functions such as to two hydraulic drive motors you might find on skid steer wheel loaders or track drive machines.

Please be aware: We can supply this valve from 2 up to 6 functions, however, Joysticks can only be mounted onto a pair of spools located AT EACH END of the monoblock valve. PLEASE SEE PHOTOS.

## HOW TO CHOOSE CORRECTLY##

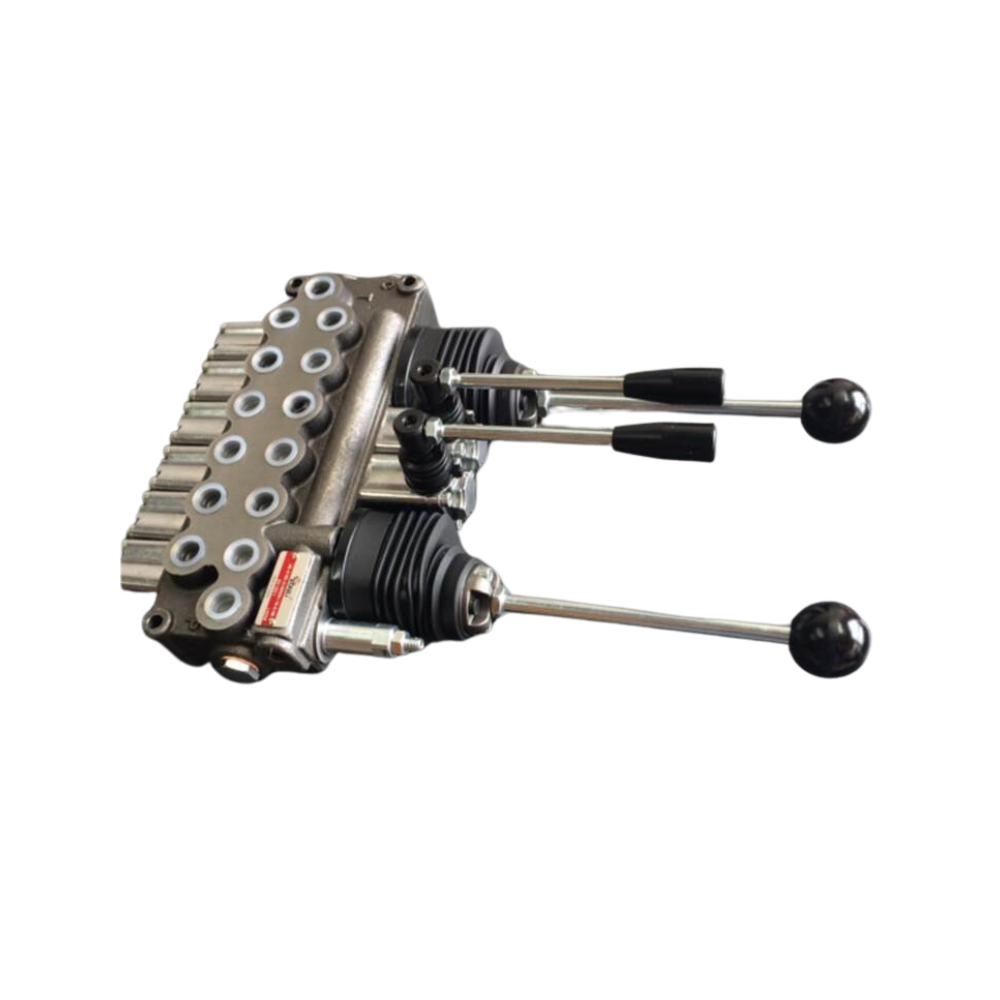

To show the correct price for your required valve, choose the number of functions (levers). Then Choose Joysticks required. The main photo is simply for reference, it is a 6 lever, 2 Joystick in the options. If in doubt call us.

These direct mount attachments are also known as Hydraulic Pilot Levers or Dual Axis Direct Mount Joystick

Made in Taiwan by Youli. Oil Flows up to 80 Liters per minute, max pressure 4,700 psi .

By default, any standard lever action is Spring Return to Center.

Please email or call us for pricing to suit your application. Motor or Cylinder spools etc available
