1-1/4" Hydraulic Oil Return Filter flows up to 300 liters per minute available with either 10 or 25 micron filter media.

Hydraulic equipment is generally used and operated in some of the harshest environments around and if damaged they are expensive to replace. The Long term reliability of hydraulic equipment is greatly enhanced if the Hydraulic Oil is continuously filtered.

This Filter assembly is a Quality item and is manufactured using the latest Filtration materials and technology by FaiFiltri Italy.
These Filters are installed in the low-pressure tank return line and generally just before the oil returns to the tank.

You have the option of either a 10 or 25 Micron filter in both small and large sizes.

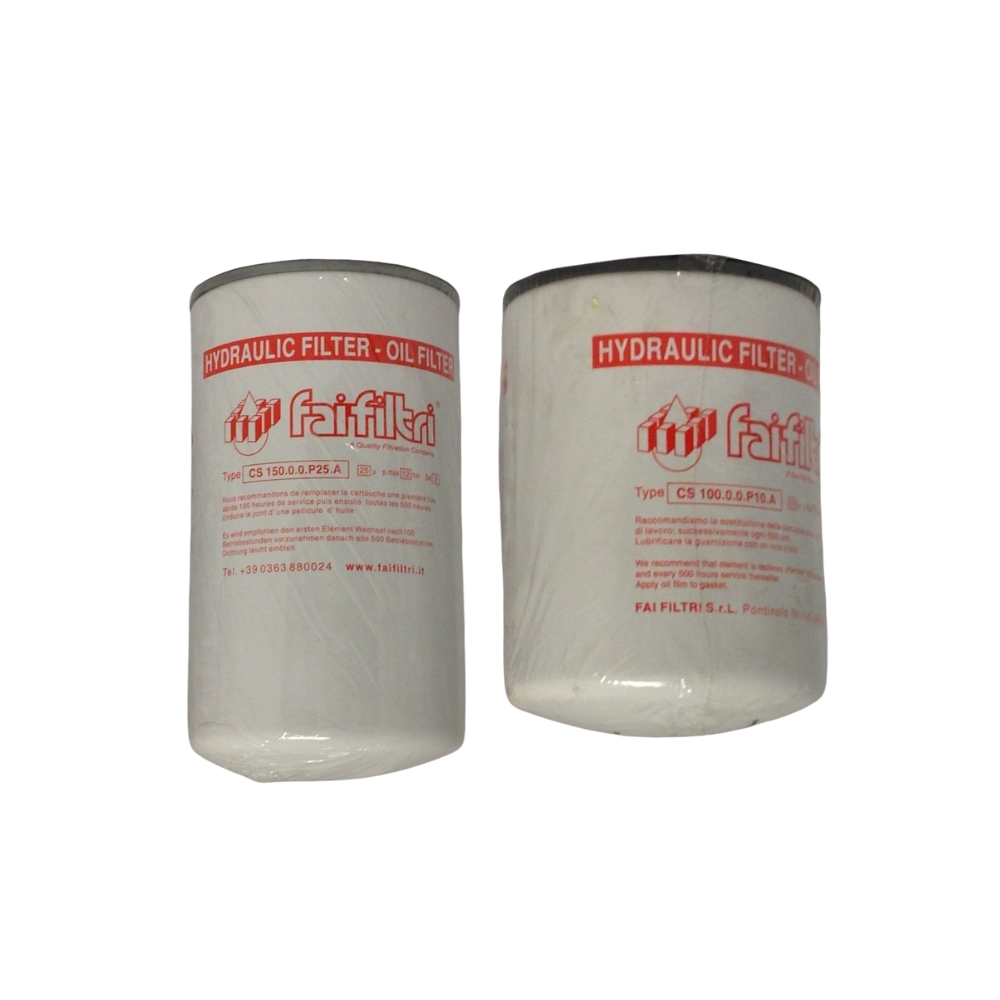

Please note the photo with two filters is to show the surface area difference between the small and large filters.
Spin On metal Canister with 10-micron or 25-micron (paper filter media)
10 AND 25 Micron Small = 126 mm diameter x 175 mm long
10 AND 25 Micron Large = 126 mm diameter x 226 mm long

Specifications
Max Oil Flow Rate 10 micron Small 200 liters / Minute ( 48US GPM)
Max Oil Flow Rate 10 microns Large and 25 microns Small and Large 300 liters / Minute ( 72 US GPM)
Max Operating Pressure 12 Bar (174 PSI)
Max Differential pressure 4 Bar (58 PSI)
Burst Pressure 25 Bar (363 PSI)
Filter head internal Bypass Pressure 1.7 Bar (25 PSI)
Filter media = inorganic, impregnated resin-bonded micro fibers supported upstream and downstream.
Operating Temperature -25 to +110 degrees C
Filtered Media = Suitable with All Mineral Oils, Fuels, Glycol/Water solutions, and Most Synthetic oils.
