Hydraulic Oil Return Filter Assembly 126 mm (5" inch) diameter filter with Aluminium Filter head with 1 -1/4" BSPP Ports flows to 300 Lt/Min

This Spin-on type hydraulic oil Filter assembly is a Quality item and is manufactured using the latest Filtration materials and technology by FaiFiltri Italy.

These Filters are usually installed in the low-pressure tank return line: and generally just before the Hydraulic Oil returns to the tank.

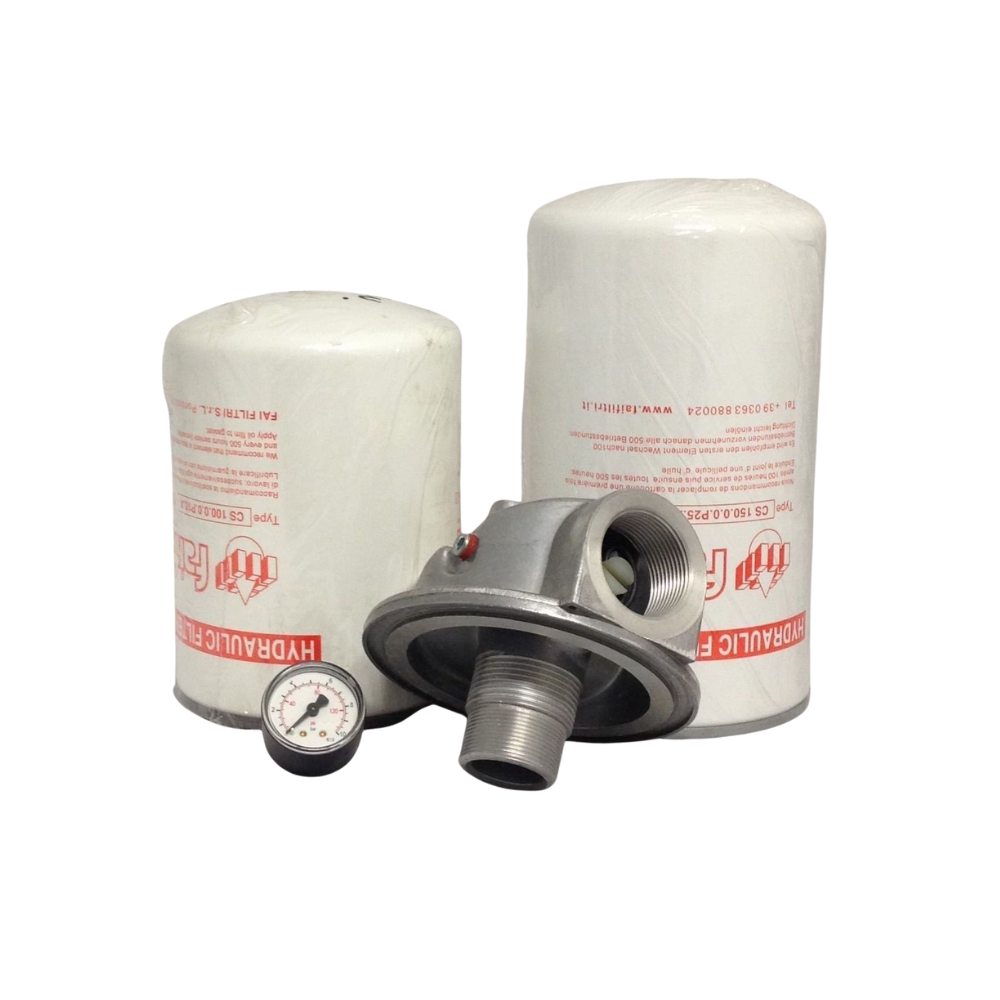

Please note the photo with two filters is to show the surface area difference between the small and large micron filters.

Spin On metal Canister with 10-micron or 25-micron (paper filter media)

10 AND 25 Micron Small = 126 mm diameter x 175 mm long

10 AND 25 Micron Large = 126 mm diameter x 226 mm long

Aluminium Alloy Filter Head complete with "Clogged filter" internal bypass set at 1.7 Bar (25 PSI) and Buna "N" O ring seal,

The filter head has two 1/8" BSPT ports available to mount an optional "clogging indicator"

Filter Head Inlet and Outlet ports are 1-1/4" BSPP.

On the top of the Filter Head are two M6 threaded holes 38 mm apart for mounting the filter assembly to a bracket or machine framework.

Specifications

• Max Oil Flow Rate 10 micron Small 200 liters / Minute ( 48US GPM)
• Max Oil Flow Rate 25 microns Small and 10 microns Large = 300 liters / Minute ( 72 US GPM)
• Max Oil Flow Rate 25 microns Small and Large 300 liters / Minute ( 72 US GPM)
• Max Operating Pressure 12 Bar (174 PSI)
• Max Differential pressure 4 Bar (58 PSI)
• Burst Pressure 25 Bar (363 PSI)
• Filter head internal Bypass Pressure 1.7 Bar (25 PSI)
• Filter media = inorganic, impregnated resin-bonded microfibers supported upstream and downstream.
• Operating Temperature -25 to +110 degrees C
• Filtered Media = Suitable with All Mineral Oils, Fuels, Glycol/Water solutions, and Most Synthetic oils.
