Suits Most Hydraulic Equipment.

Hydraulic equipment is generally used and operated in some of the harshest environments around and if damaged they are Expensive to Replace. The Long term reliability of hydraulic equipment is greatly enhanced if the Hydraulic Oil is continuously filtered.
These Filter cartridges are Quality items manufactured using the latest Filtration materials and technology by FaiFiltri Italy.
These Filters are usually installed in the low-pressure tank return line and generally just before the oil returns to the tank.
What you'll get

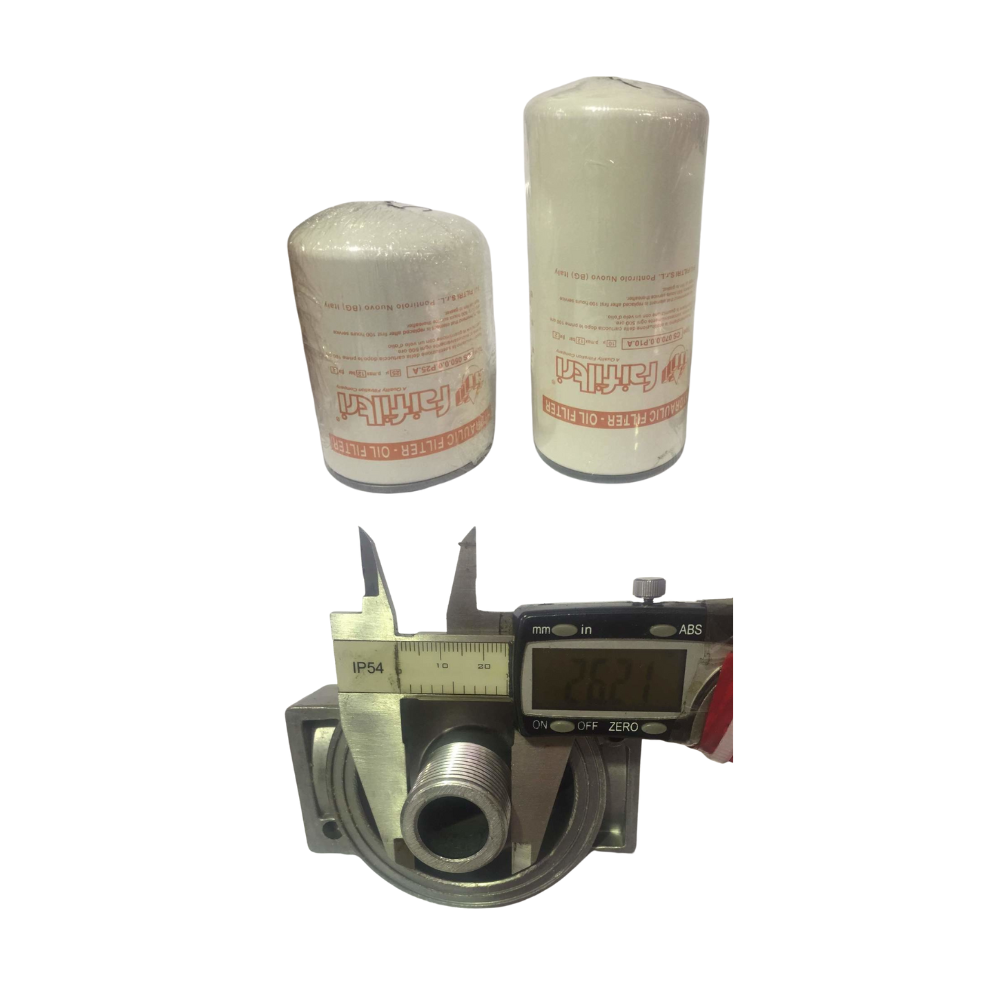

CS 500 Spin On metal Canister with 10 or 25 microns (paper filter media) 98 mm diameter x 148 mm long
CS 700 Spin On metal Canister with 10 or 25 microns (paper filter media) 98 mm diameter x 210mm long
Filter media = inorganic, impregnated resin-bonded microfibers supported upstream and downstream
CS 5000 10um = 70 LPM.
CS 5000 25um = 100 LPM.
CS 7000 10um = 120 LPM
CS 7000 25um = 120 LPM.
Operating Temperature -25 to +110 degrees C
Filtered Media = Suitable with All Mineral Oils, Fuels, Glycol/Water solutions, and Most Synthetic oils.
Call us with any questions you may have or for a different filter port size or micron .

Email: sales@hydraulic.online
Phone: 07 5563 1982
Hours: 8 am to 4 pm Monday - Friday, excluding public holidays
If you have any questions please don’t hesitate to contact us
Best regards,
Hydraulic.Online
Improper Selection, Installation, Implementation, And/Or Operation By Anyone Other Than Persons With Appropriate Technical And Mechanical Training Can Result In Damage To Equipment Or Property, Serious Personal Injury, Or Death. Proper Precautions And Safety Procedures Should Be Implemented Prior To The Installation And Operation Of Equipment.
