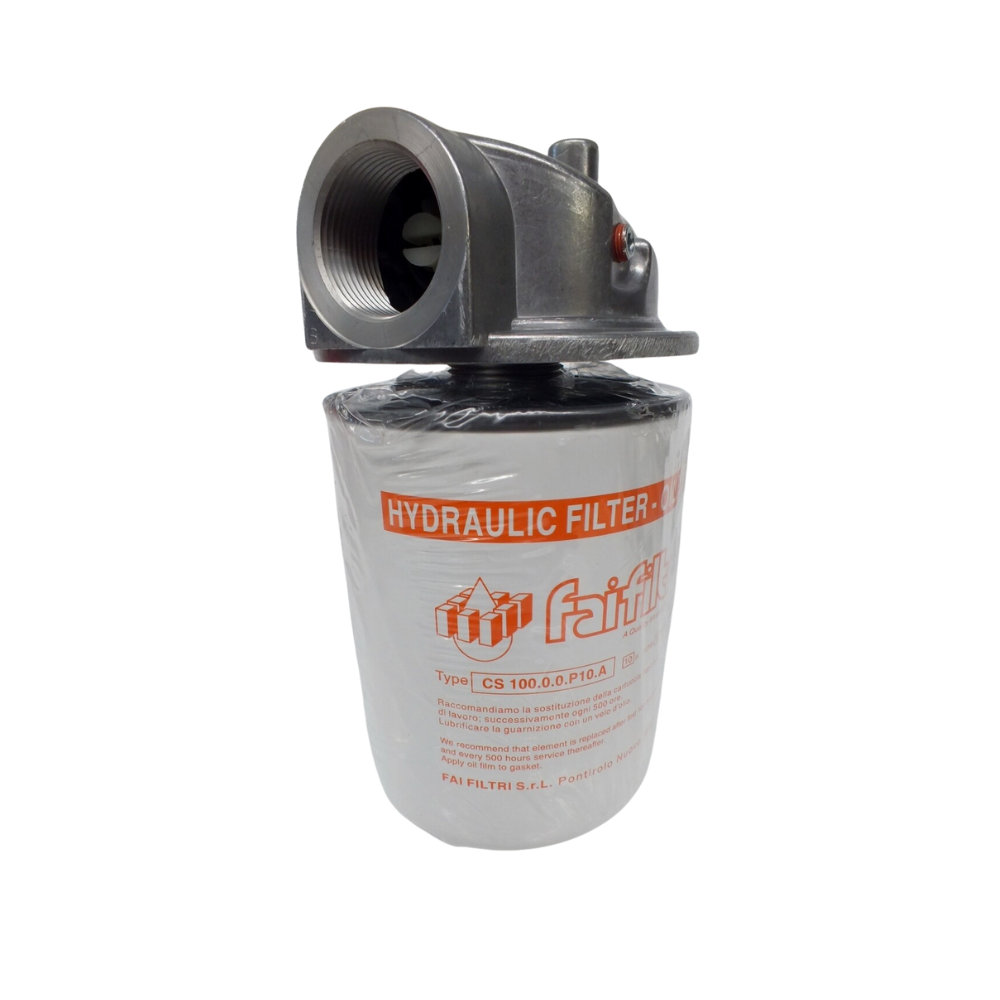

Hydraulic Oil Spin on 10-micron Return Filter Assembly 3/4" BSP Ports 120 LPM
The Long term reliability of hydraulic equipment is greatly enhanced if the Hydraulic Oil is continuously filtered.
This Filter assembly is a Quality item and is manufactured using the latest Filtration materials and technology by FaiFiltri Italy.
These Filters are usually installed in the low-pressure tank return line and generally just before the oil returns to the tank.

What you'll get
1 x Spin On metal Canister with 10 microns (paper filter media) 98 mm diameter x 200 mm long
1 x Aluminium Alloy Filter Head complete with "Clogged filter"
internal bypass set at 1.7 Bar (25 PSI) and Buna "N" O ring seal,
The filter head has two 1/8" BSPT ports available to mount an optional "clogging indicator"
(Clogging Indicators are Available at an additional $30 each)
Filter Head Inlet and Outlet ports are 3/4" BSPP.

On the top of the Filter Head are two M6 threaded holes 38 mm apart for
mounting the filter assembly to a bracket or machine framework.
Dimensions assembled. 240 mm high 100 mm wide 100 mm deep.

Max Oil Flow Rate 120 liters / Minute ( 30 US GPM)
(Larger flows and sizes available)
Max Operating Pressure 12 Bar (174 PSI)
Max Differential pressure 4 Bar (58 PSI)
Burst Pressure 25 Bar (363 PSI)
Filter head internal Bypass Pressure 1.7 Bar (25 PSI)
Filter media = inorganic, impregnated resin-bonded microfibers supported upstream and downstream.
Operating Temperature -25 to +110 degrees C
Filtered Media = Suitable with All Mineral Oils, Fuels, Glycol/Water solutions, and Most Synthetic oils.
Contact us with any questions you may have or for a different filter port size or micron.
