Hydraulic Inline One Way Check Valve Sizes 1/8" - 2" BSPP

Store/Valves for Controlling and Directing Oil Flow and Pressure

Product Details

Weight: 0.35 kg

Inline One way Hydraulic Check Valve available in many sizes from 1/4" to 2" BSPP pressures from 250 to 400 bar with various check valve cracking pressures from 0.5 to 6 bar.

Oil flows from: 15 Lt/min for 1/4" Check Valve to 450 Lt/min for 2" Check Valve.

Suitable for use in Marine, Automotive and Industrial hydraulic applications.

Check valves, also known as non-return valves or one-way valves: are important components across various industries to regulate the flow of fluids or gases in a single direction. These valves are crucial in preventing back or reverse flow, which can cause equipment damage, process disruptions, or safety hazards.

In automotive and aerospace applications, check valves regulate the flow of fuel, oil, or hydraulic fluids to prevent backflow, ensuring that fluids flow in the intended direction. They are commonly used in fuel systems, braking systems, and hydraulic systems in vehicles and aircraft, protecting vital components from damage and ensuring smooth operations.

Check Valves and Safety

Check valves are especially critical in situations involving heavy-duty vehicles, such as work trucks with elevated work platforms or emergency vehicles. These valves help maintain hydraulic system pressure during downtime or emergency operations, preventing backflow or back pressure that could damage emergency pumps.

Emergency Pumps: On work trucks, emergency pumps serve as backups to the main hydraulic pumps. If the main pumps fail, these emergency pumps are activated to perform critical functions, like lowering the work platform. A check valve ensures that the hydraulic fluid flows only in one direction, protecting the emergency pump from backflow and potential damage. Additionally, check valves help prevent contamination by blocking foreign particles from entering the hydraulic system, ensuring pumps and other components operate reliably during emergency situations.

Hydraulic Line Rupture Protection: If a hydraulic line ruptures, check valves installed on the hydraulic lift cylinder of elevated work platforms prevent the platform from suddenly dropping, thus reducing the risk of injury to personnel or damage to surrounding objects.
This safety feature is crucial for maintaining stability and preventing accidents.

As mentioned above inline hydraulic check valves allow the free flow of oil in one direction only: and totally block and prevent oil flow in the other or reverse direction.

Standard supply is with a 0.5 BAR / (7 psi) check valve spring cracking pressure: however 3, 4.5 & 6 bar check valve spring cracking pressures are also available.

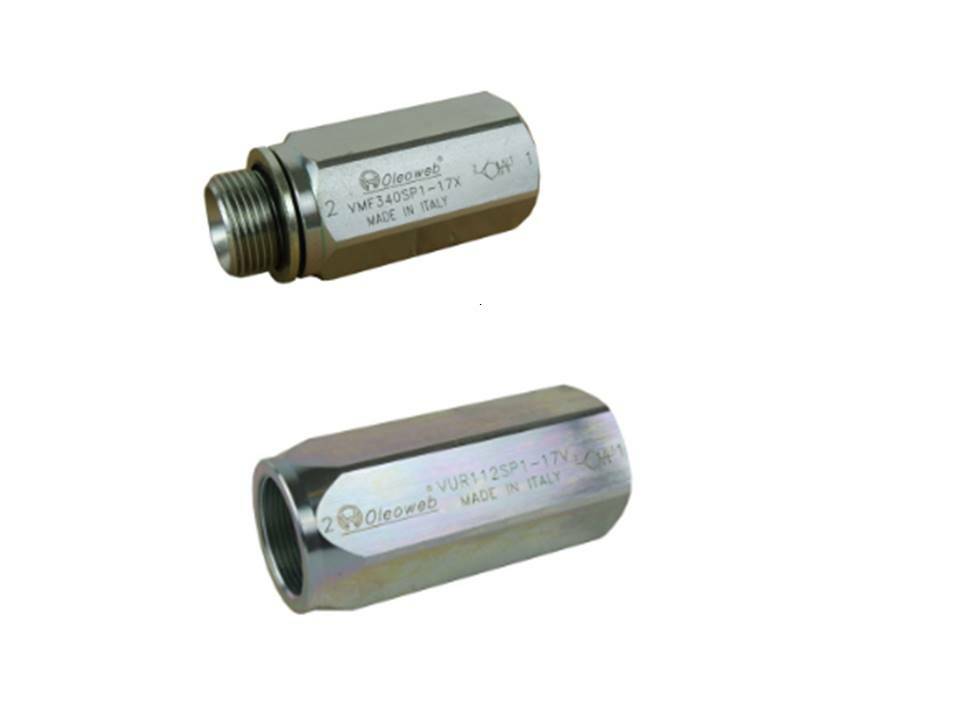

These check valves all have BSPP Female threads with sizes 3/8", 1/2", and 3/4" also available with one Male and One Female Thread
Please see chart below for More Information

Part No	Ports BSPP	Max Flow	Max Pressure	Cracking Pressure	Material
VUR180	1/8” BSPP	5 Lt/min	400 bar	0.5 bar	Steel
VUR140	1/4” BSPP	15 Lt/min	400 bar	0.5 bar	Steel
VUR380	3/8” BSPP	30 Lt/min	400 bar	0.5 bar	Steel
VUR120	1/2” BSPP	50 Lt/min	400 bar	0.5 bar	Steel
VUR340	3/4” BSPP	90 Lt/min	400 bar	0.5 bar	Steel
VUR100	1” BSPP	150 Lt/min	350 bar	0.5 bar	Steel
VUR114	1.1/4” BSPP	200 Lt/min	350 bar	0.5 bar	Steel
VUR112	1.1/2” BSPP	300 Lt/min	350 bar	0.5 bar	Steel
VUR200	2” BSPP	430 Lt/min	250 bar	0.5 bar	Steel
VMF380SP1	3/8” BSPP	30 Lt/min	400 bar	0.5 bar	Steel
VMF120SP1	1/2” BSPP	50 Lt/min	400 bar	0.5 bar	Steel
VMF340SP1	3/4” BSPP	90 Lt/min	400 bar	0.5 bar	Steel

***DISCLAIMER***

IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
