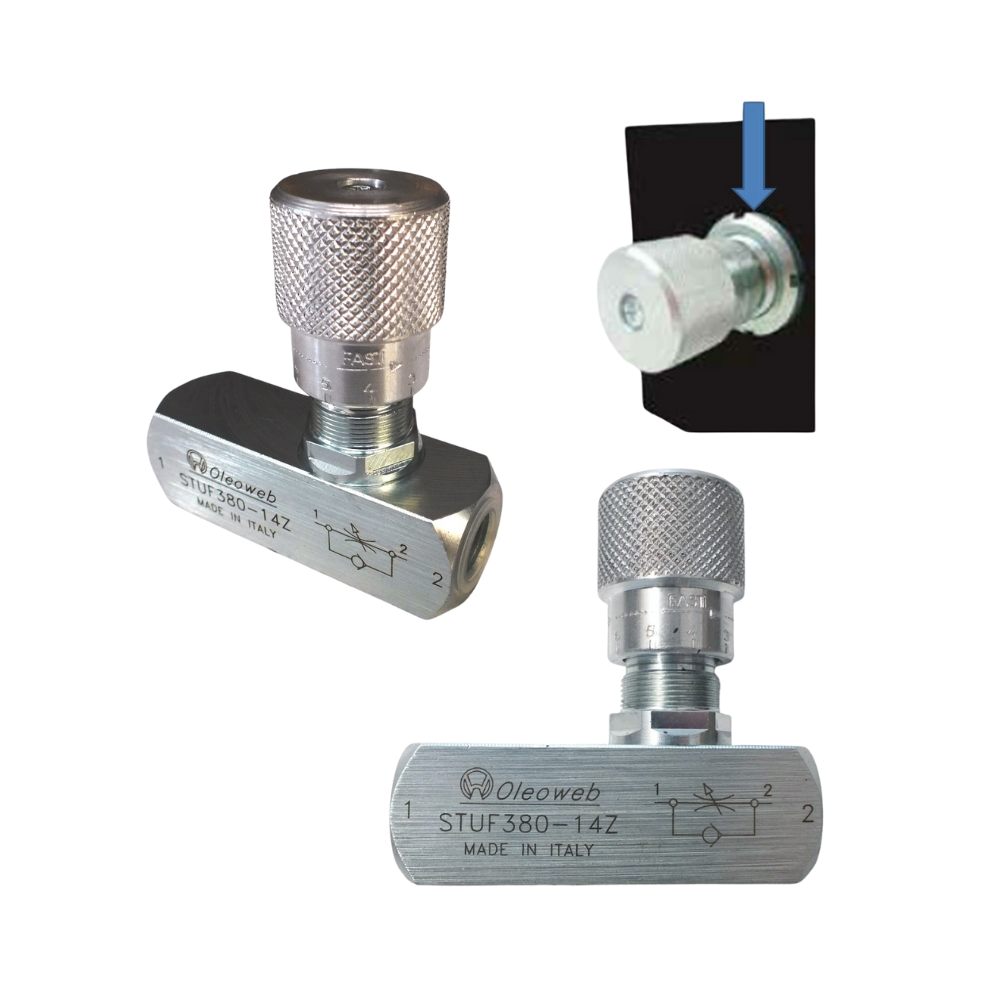

Hydraulic Flow Control Valve Reverse Check 6000 PSI
Product Details
Brand: Oleoweb
Weight: 2.00 kg
A hydraulic Flow Control Valve with Reverse Check has the ability to easily adjust the speed of the oil flow in one direction but still allows oil flow in the reverse direction to free flow.
Commonly used when extending single acting cylinders and power packs, install this valve after the pump and you will be able to safely control the lowering speed of a load such as a
dump truck (tipper body) or Lift especially usefull for lowering heavy items such as ramps with having to revert to expensive Counterbalance valves
The connection of the pressure line from the pump should be connected to port number "2"
Various sizes available for controlling oil flows from
15 Lt/Min for 1/4" valve to 150 Lt/min for 1" inch valve and 300 Lt/min for the 1-1/2" valve
15 Lt/Min for 1/4" valve to 150 Lt/min for 1" inch valve and 300 Lt/min for the 1-1/2" valve
Made in Italy by Oleoweb.

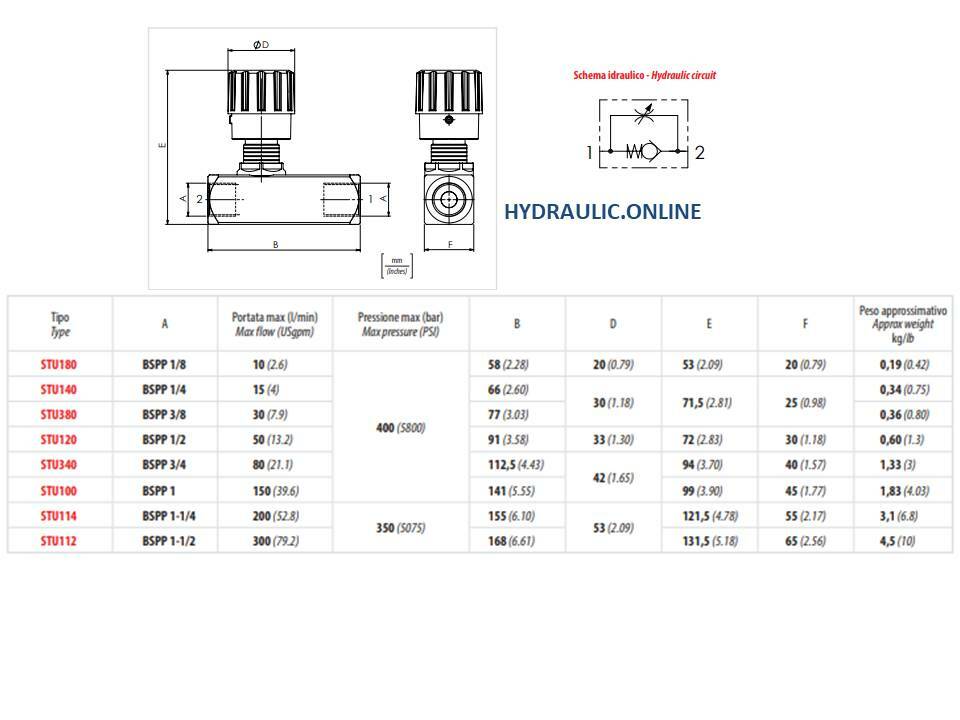

Available Sizes and Flows and Pressures
- 1/4" Flows 15 Lt/min max pressure 400 bar
- 3/8" Flows 30 Lt/min max pressure 400 bar
- 1/2" Flows 50 Lt/min max pressure 400 bar
- 3/4" Flows 80 Lt/min max pressure 400 bar
- 1" Flows 150 Lt/min max pressure 400 bar
- 1-1/4" Flows 200 Lt/min max pressure 350 bar
- 1-1/2" Flows 300 Lt/min max pressure 350 bar
Please see price options
Buy with Confidence from a long established Hydraulic Service Center get a 12 month warranty and an Australian Tax Invoice.
The Speed of Hydraulic motors and or cylinders can be controlled using this valve also very usefull when inducing a load when flow and pressure testing pumps and motors.
This valve is also available with throttle / speed control in one direction only,
with free flow in opposite direction.
Features
- Throttle and shut-off the flow of Oil or other liquids in one direction, free flow in other.
- Designed for in-line assembly with female BSP threaded connections
- Graduated turning knob and coded spindle to accurately control flow
- Set-screw located on side of turning knob to lock valve in position
- Panel mounting nuts available on request
- Maximum working pressure: up to 400 bar / 6000 PSI
350 bar(5,100 psi) for 1-1/4" and 1-1/2" sizes
Materials of Construction.
- Body and spindle made of Steel (1.0715), zinc/iron-plated (Fe/Zn Fe Co 8 C) and free of hexavalent chromium CrVI
- Turning knob made of Polyamide (PA)
- O-rings made of NBR (Buna-N®)
Technical Data
Maximum working pressure:
400 bar / 6000 PSI
Operating temperature range:
-20 °C to +100 °C / -4 °F to +212 °F
Please email us with any questions at sales@mhfgc.com.au
Or call us 07 5563 1982 or 1300 1 HOSES
