Hydraulic Oil Flow Control. Throttle Valve BSPP Ports 400 Bar

Name: Hydraulic Oil Flow Control Throttle Valve 400bar BSPP Ports
SKU: STBF 140 to 112
Price: 81.0 AUD
Availability: InStock

Store/Valves for Controlling and Directing Oil Flow and Pressure

SKU STBF 140 to 112

AU$81.00

Best Value

STBF

1/4" BSPP 15 Lt/min

3/8" BSPP 30 Lt/min (+AU$10.00)

1/2" BSPP 50 Lt/min (+AU$24.00)

3/4" BSPP 80 Lt/min (+AU$42.00)

1" BSPP ports Flow 150 Lt/min (+AU$140.00)

1-1/4 " BSPP ports Flow 200 Lt/min (+AU$222.00)

1-1/2" BSPP ports Flow 300 Lt/min (+AU$272.00)

PANEL NUT

Panel Nut to suit (+AU$20.20)

NO PANEL NUT

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

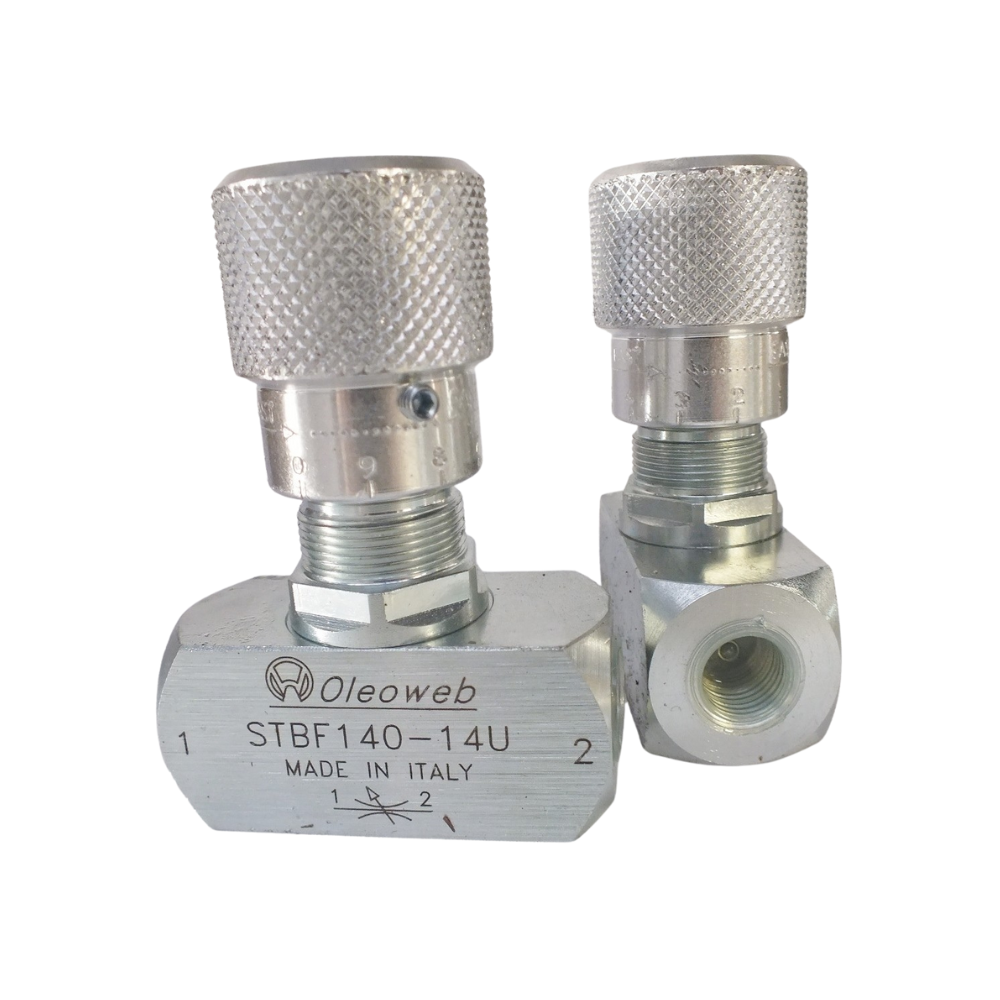

Hydraulic Oil Flow Control. Throttle Valve BSPP Ports 400 Bar

Store/Valves for Controlling and Directing Oil Flow and Pressure

Product Details

Weight: 0.50 kg

Hydraulic Oil Flow Control, Throttle Shutoff Valve. 400Bar 6,000 psi Sizes 1/4" to 1-1/2" BSPP ports, Oil flows 15 to 300 Lt/min.

Hydraulic Oil Flow (Speed) Control / Throttle Valves for In-Line Assembly with BSPP Ports

Good for controlling oil flows.

These are quality valves made in Italy.

They are commonly used for the Throttle and or to shut-off the flow of hydraulic oil or other liquids in both directions in hydraulic circuits. The Speed of Hydraulic cylinders can be controlled using this valve.

This valve is also available with throttle / speed control in one direction only, with free flow in opposite direction. See other listings. Please ask a question or call 07 5563 1982 for pricing.

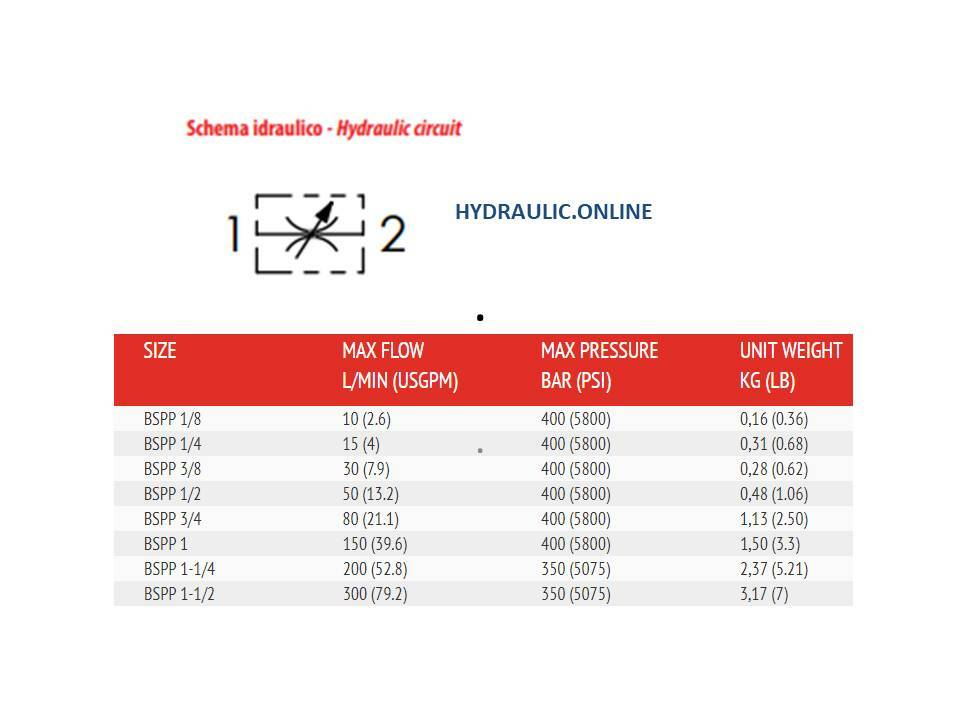

Available sizes and Flows

1/4" BSPP ports Flow 15 Lt/min
3/8" BSPP ports Flow 30 Lt/min
1/2" BSPP ports Flow 50 Lt/min
3/4" BSPP ports Flow 80 Lt/min
1" BSPP ports Flow 150 Lt/min
1-1/4" BSPP ports Flow 150 Lt/min
1-1/2" BSPP ports Flow 150 Lt/min

Features

Throttle and shut-off the flow of Oil or other liquids in both directions.
Designed for in-line assembly with female BSP threaded connections
Graduated turning knob and coded spindle to accurately control flow
Set-screw located on side of turning knob to lock valve in position

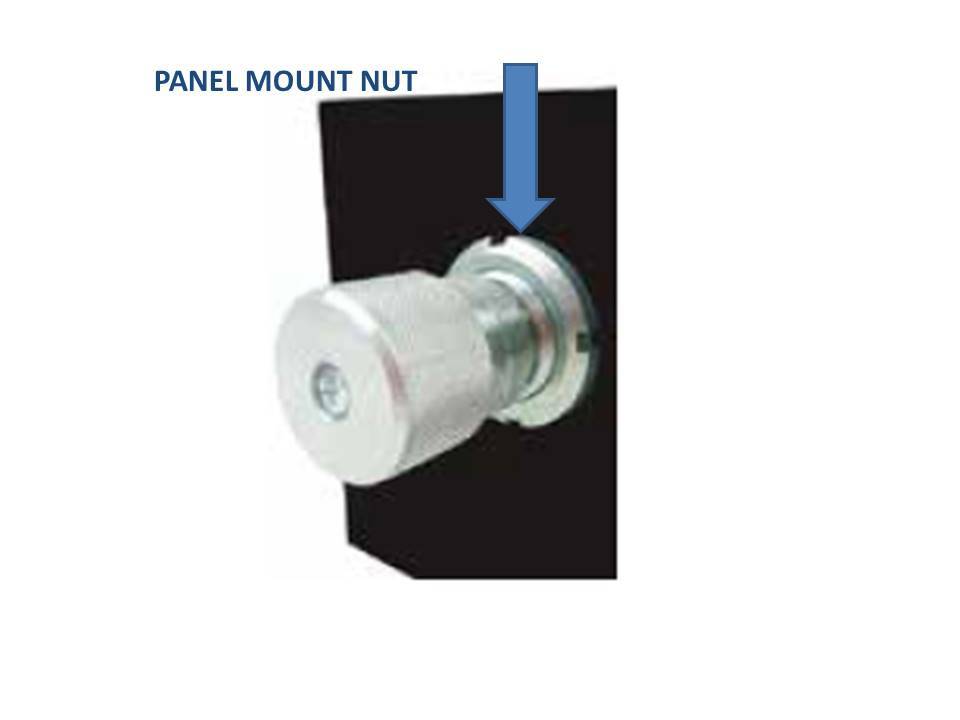

Panel mounting nuts available on request
Maximum working pressure: up to 400 bar / 6000 PSI

Materials of Construction.

Body and spindle made of Steel (1.0715), zinc/iron-plated (Fe/Zn Fe Co 8 C) and free of hexavalent chromium CrVI
Turning knob made of Polyamide (PA)
O-rings made of NBR (Buna-N®)

Technical Data

Maximum working pressure:
400 bar / 6000 PSI
Operating temperature range:
-20 °C to +100 °C / -4 °F to +212 °F
