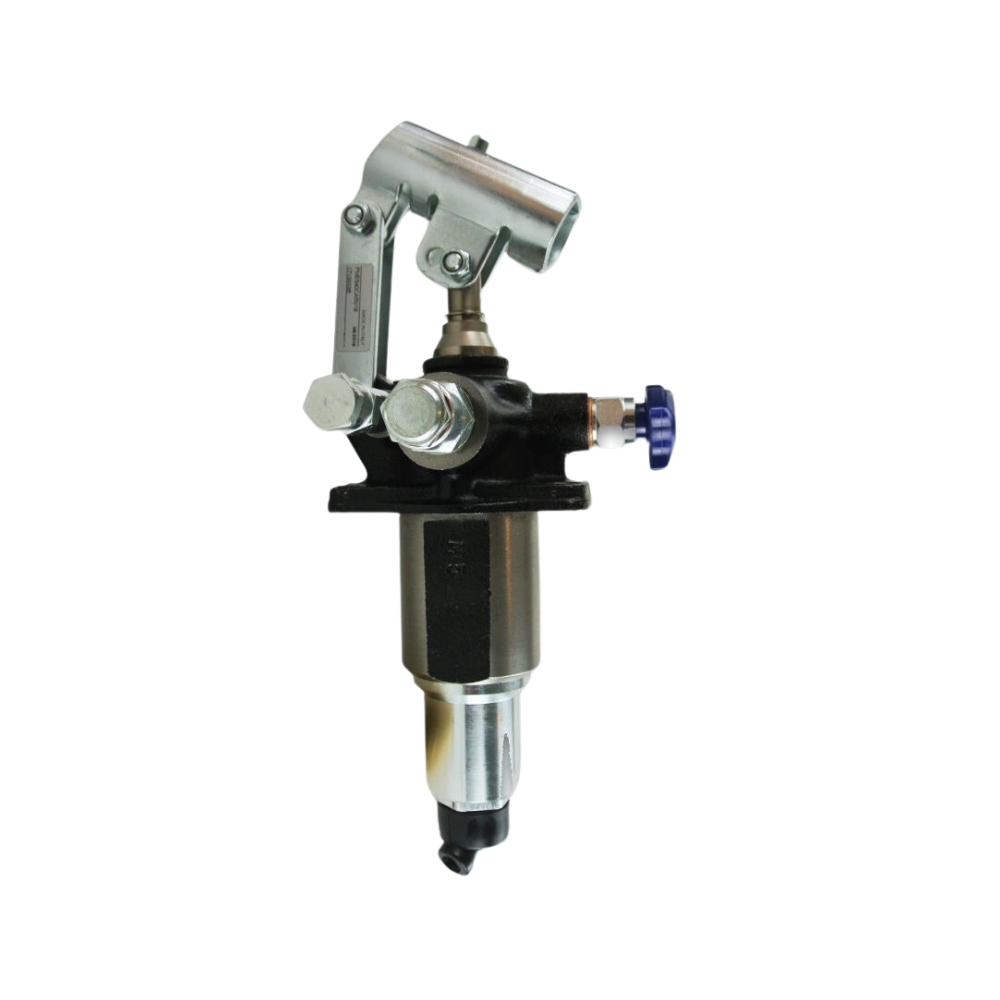

Hydraulic Hand Pump Hi-Lo Single Acting — Fast Pumping, Italian Made (HV Hydraulic)
SKU PM2V5/80A-BYB-PM-S
AU$1 299.00
Use Coupon EOFY26
was AU$1 690.00 Save 23%
Add Oil Tank
HV Hydraulic Italy | Two-speed Hi-Lo | 500 Bar | 3/8" BSPP | Vertical or horizontal mount | Tank size options available
In stock: 9 available
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Hydraulic Hand Pump Hi-Lo Single Acting — Fast Pumping, Italian Made (HV Hydraulic)
Product Details
Brand: HV Hydraulic Italy
Weight: 10.00 kg
HV Hydraulic s.r.l. — Italy | ISO 9001 Certified
Hydraulic Hand Pump — Hi-Lo Single Acting
Italian-made two-speed hand pump with automatic stage switching. Fast "Hi Flow" extension under no load, maximum 500 Bar Pressure under "Lo Flow" and high loads — no manual changeover required. Vertical or horizontal mount.
How the Hi-Lo Two-Speed System Works
Stage 1 — High Volume / Low Pressure
80.6 cc per stroke at up to 20 Bar. Your cylinder extends rapidly while there is little or no load on it, saving time and effort.
80.6 cc per stroke at up to 20 Bar. Your cylinder extends rapidly while there is little or no load on it, saving time and effort.
Automatic Changeover
Once the pump senses resistance, it switches automatically to Stage 2 — no manual intervention, no levers to flip.
Once the pump senses resistance, it switches automatically to Stage 2 — no manual intervention, no levers to flip.
Stage 2 — Low Volume / High Pressure
5.0 cc per stroke at up to 500 Bar / 7,250 PSI. Lift heavy loads with minimal handle effort using the 600 mm lever.
5.0 cc per stroke at up to 500 Bar / 7,250 PSI. Lift heavy loads with minimal handle effort using the 600 mm lever.
Single Acting Operation: This pump powers your cylinder in one direction (typically extension/raise). The return stroke is achieved by gravity or a spring. If powered retraction is required, pair this pump with a double acting directional control valve, or see our separate double acting pump listings.
Mounting Flexibility — Vertical or Horizontal
The pump and tank assembly can be installed in either orientation to suit your application:
Vertical Mount — The 600 mm lever is pulled up and pushed down.
Horizontal Mount — The 600 mm lever is pulled out and pushed in.
The oil filler plug and breather are relocated to suit the chosen mounting orientation.
Typical Applications
✓ Tipping trailers (car-towed)
✓ Horse trailer ramps
✓ Agricultural and farming equipment
✓ Workshop presses and lifting frames
✓ Any application requiring a reliable manually-operated hydraulic power source
Technical Specifications
ModelPM2V5/80A-BYB-PM-S
Manufacturer HV Hydraulic s.r.l., Italy (ISO 9001)
Body Cast iron
Piston Treatment Niploy coated
External Parts White zinc plated
Standard Colour Black
Lever 600 mm | White zinc plated | Ø27 connection
Stage 1 — Displacement 80.588 cm³ / stroke
Stage 1 — Max Pressure 20 Bar
Stage 2 — Displacement 5.036 cm³ / stroke
Stage 2 — Max Pressure 500 Bar / 7,250 PSI
Pressure Relief Valve Included | Standard setting 400 Bar | Adjustable 50–500 Bar
Outlet Port 3/8" BSPP Male
Pressure Gauge Port 1/4" G prearrangement (included)
Pump Body (A × B × C) 354 mm × 165 mm × 65 mm
Angles D / E 30° / 32°
Pump Head Mass 6.2 kg
Tank Mounting Kit Included
Mounting Orientation Vertical or Horizontal
Tank Size Options
The pump head is priced and sold separately. An oil tank is required for operation and is available as a cost-plus add-on.
Select your preferred tank size from the Options Above.
| Part # | Tank Size | A mm | B mm | C mm | D mm | Mass (kg) | Suction Pipe |
|---|---|---|---|---|---|---|---|
| 6500.0140 | 1 Litre | 100 | 150 | 120 | 120 | 2.2 | Ø10×85 mm |
| 6500.0141 | 2 Litre | 100 | 150 | 185 | 120 | 3.0 | Ø10×114 mm |
| 6500.0142 | 3 Litre | 100 | 150 | 255 | 120 | 3.7 | Ø10×180 mm |
| 6500.0143 | 5 Litre | 175 | 175 | 200 | 195 | 5.3 | Ø10×156 mm |
| 6500.0144 | 7 Litre | 175 | 175 | 275 | 195 | 6.6 | Ø10×215 mm |
| 6500.0145 | 10 Litre | 175 | 175 | 380 | 195 | 8.3 | Ø10×325 mm |
Not sure which tank size suits your application? Contact our team — we're happy to advise.
📄 Manufacturer Spec Sheet: Download PM2V 5-80 Technical Data Sheet (HV Hydraulic s.r.l.)
⚠ Safety Notice: Improper selection, installation, implementation, or operation by persons without appropriate technical and mechanical training can result in damage to equipment or property, serious personal injury, or death. Proper precautions and safety procedures must be implemented prior to installation and operation of this equipment.
Technician's Advice
When selecting a Hi-Lo hand pump, match the stage displacements to your application — not just the maximum pressure rating. Stage 1 (high-volume / low-pressure) determines how quickly your cylinder extends under no load. Stage 2 (low-volume / high-pressure) determines the maximum force you can generate. For most tipping and lifting applications, the PM2V 5-80 offers an excellent balance of fast travel and high final force.
The pump and tank assembly must be mounted to a structure that is strong enough to support the combined weight of the pump (6.2 kg) and your chosen tank (2.2 to 8.3 kg), plus the dynamic forces applied during operation. The 600 mm lever can transmit up to 30 kg of alternating force — pulling up and pushing down in vertical mount, or pulling out and pushing in when horizontal. The mounting structure and fasteners must be rated to handle these repeated alternating loads safely.
The pressure relief valve is factory set to 400 Bar. It is adjustable from 50 to 500 Bar. Do not exceed the rated maximum of 500 Bar. Always set the relief valve before connecting to any cylinder or load, and verify the setting with a calibrated gauge at the 1/4" G pressure gauge prearrangement port.
Ensure the filler plug and breather are correctly positioned for your chosen mounting orientation — vertical or horizontal — before filling with oil and commissioning. Incorrect orientation of the breather will result in oil spillage or inadequate venting.
If you are unsure which tank size or configuration suits your application, contact us directly. We are a functioning hydraulic service centre with over 20 years of hands-on experience — we are here to help you get it right the first time.
Warranty & Service
All PM2V Hi-Lo hand pumps supplied by us carry a 12-month warranty. Seal kits are available separately. We are an active hydraulic service centre — not just a reseller.
If you have questions about compatibility, installation, or identifying the correct tank size for your application, call us or send us a photo of your existing setup and we will advise accordingly.
Shipping & Freight Information
We ship hydraulic components across Australia from warehouses in Queensland, Victoria, South Australia, and Western Australia. Because we sell solid steel components — pumps, tanks, cylinders, fittings, and hose assemblies — freight costs reflect real weight and real distance. We do not hide freight costs in inflated product prices. What you see is what you pay.
The pump head alone weighs 6.2 kg. Combined with a tank (2.2 to 8.3 kg), total assembly weight ranges from approximately 8.4 to 14.5 kg. Freight costs vary by product weight, dimensions, and your delivery location. We have negotiated the best available carrier rates for our volume and absorb a portion of freight cost on every order.
Estimated delivery timeframes:
✓ Standard parcels: 2–7 business days
✓ Heavy freight: 3–8 business days
✓ Orders placed before 12 Midday AEST ship same business day (where stock is available)
