Hydraulic Flow Control Valve Reverse Check BSPP

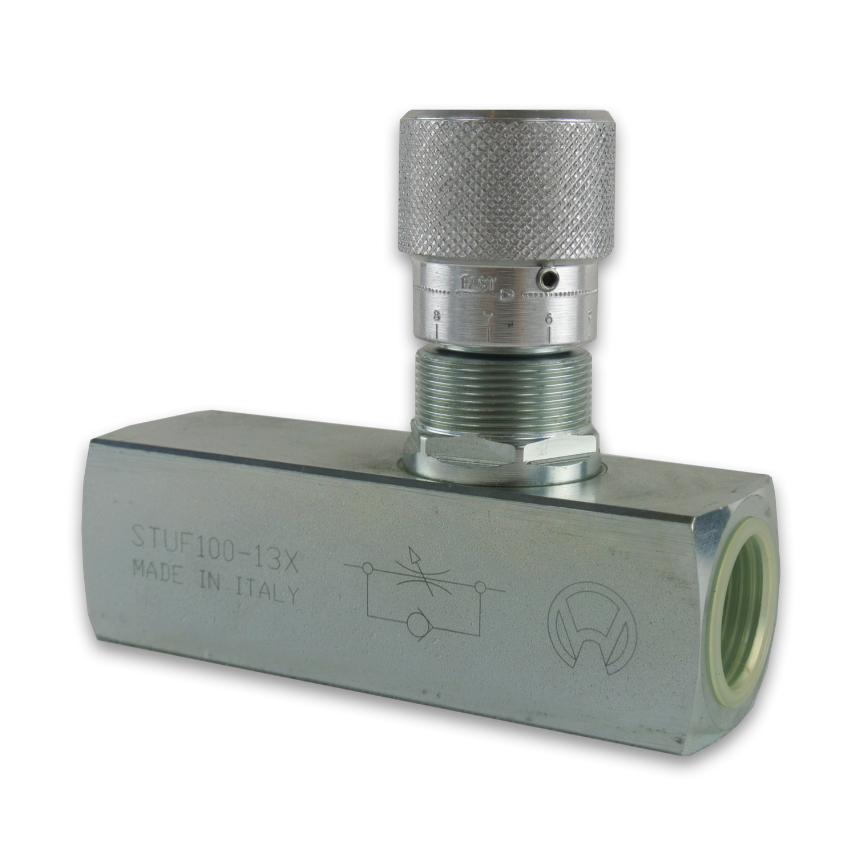

Name: Hydraulic Needle Flow Control Valve with Reverse Check BSPP
SKU: THSTU
Price: 82.0 AUD
Availability: InStock

Store/Valves for Controlling and Directing Oil Flow and Pressure

SKU THSTU

AU$82.00

🔥 EOFY SALE!

Port size and Max Oil flow

1/4" BSPP Ports -15 Lt/min

3/8" BSPP Ports 30 Lt/min (+AU$6.00)

1/2" BSPP Ports - 50 Lt/min (+AU$21.00)

3/4" BSPP Ports - 80 Lt/min (+AU$76.50)

1" BSPP Ports - 150 Lt/min (+AU$151.65)

1-1/4" BSPP Ports - 200 Lt/min (+AU$324.50)

1-1/2" BSPP Ports - 300 Lt/min (+AU$448.70)

PANEL NUT

PANEL NUT TO SUIT (+AU$20.00)

NO PANEL NUT

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Share this product with your friends

Share Share Pin it

Hydraulic Flow Control Valve Reverse Check BSPP

Store/Valves for Controlling and Directing Oil Flow and Pressure

Product Details

Weight: 0.50 kg

Needle Flow Control Valves with Reverse Flow Check Valve. 1/4" to 1-1/2" BSPP ports, Oil flows from 15 to 300 Lt/min.

Face this valve in one direction, and oil flow can be adjusted to the required speed flow, any oil going in reverse direction will have full flow.

Commonly used when extending single acting cylinders using cheap low flow DC power packs install this valve after the pump and you will be able to safely control the lowering of a load. Made by Oleoweb.

Buy with Confidence from a long established Hydraulic Service Center get a 12 month warranty and an Australian Tax Invoice.

The Speed of Hydraulic motors and or cylinders can be controlled using this valve.

This valve is also available with throttle / speed control in one direction only,

with free flow in opposite direction. Please ask a question or call 0755 631982

Features

Throttle and shut-off the flow of Oil or other liquids in one direction, free flow in other.
Designed for in-line assembly with female BSP threaded connections
Graduated turning knob and coded spindle to accurately control flow
Set-screw located on side of turning knob to lock valve in position
Panel mounting nuts available on request
Maximum working pressure: up to 400 bar / 6000 PSI

Materials of Construction.

Body and spindle made of Steel (1.0715), zinc/iron-plated (Fe/Zn Fe Co 8 C) and free of hexavalent chromium CrVI
Turning knob made of Polyamide (PA)
O-rings made of NBR (Buna-N®)

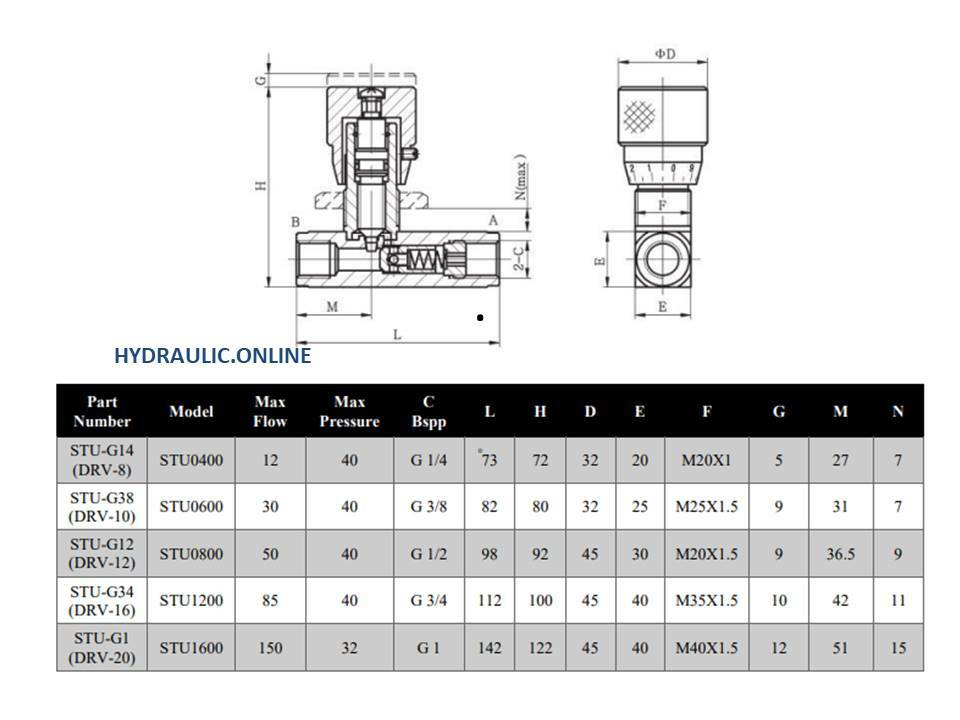

Technical Data

Maximum working pressure:
400 bar / 6000 PSI (sizes 1/4" to 1" )
350 bar / 5,100 psi (sizes (1-14" to 1-1/2")
Operating temperature range:
-20 °C to +100 °C / -4 °F to +212 °F

07/03//25 DM $
