3 way Priority flow control valve flow to second function, ITALIAN

Store/Hydraulic Valves/Flow Control/Priority Flow Control Valves

SKU VPP

AU$586.80

MODEL VPP

50 LPM , 3 x 3/8" Bspp ports

90 LPM 3 x 1/2" Bspp ports (+AU$15.00)

150 LPM 3 x 3/4" Bspp ports (+AU$481.50)

190 LPM 3 x 1" Bspp ports (+AU$481.50)

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

3 way Priority flow control valve flow to second function, ITALIAN

Store/Hydraulic Valves/Flow Control/Priority Flow Control Valves

Product Details

Weight: 5.04 kg

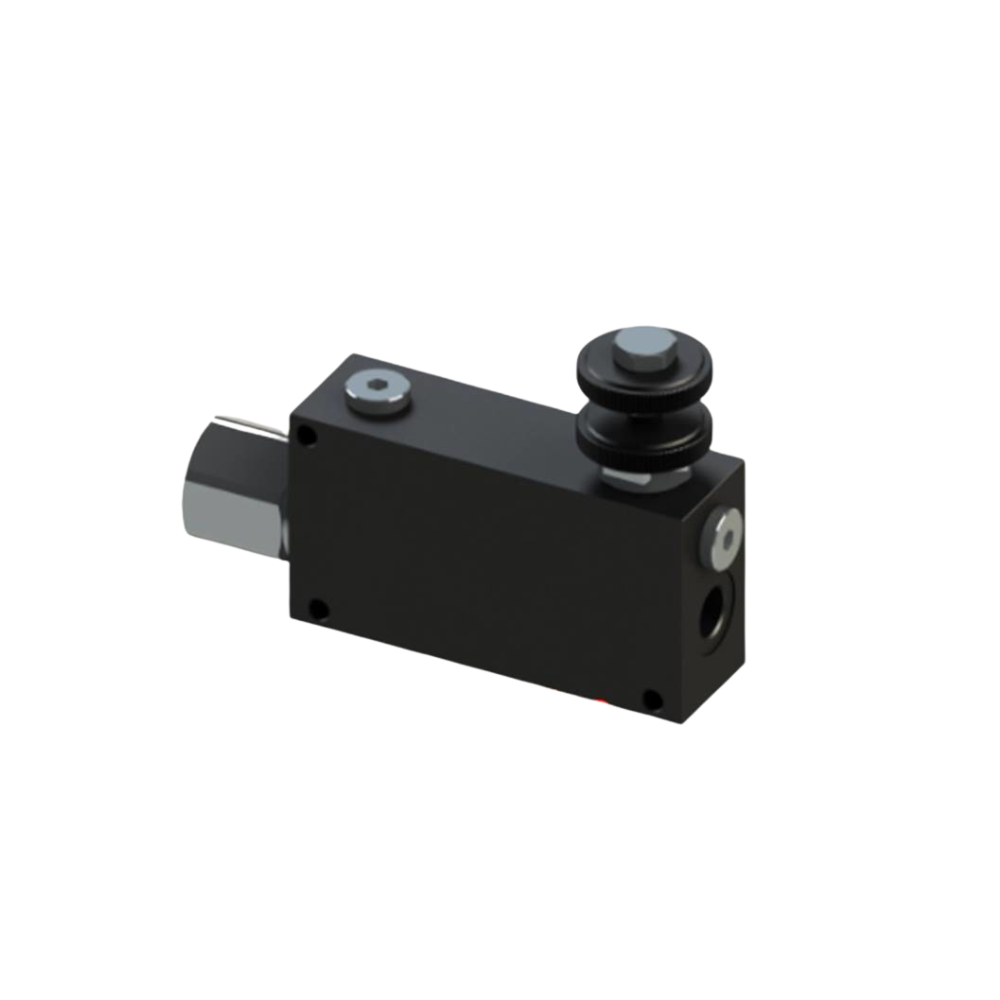

Italian made Hydraulic Pressure Compensated Adjustable Flow Divider Valve. Comes is various flows & port sizes. (please see options from drop down menu)

This pressure compensated adjustable flow control valve is used to Split One flow into Two Flows, it is adjustable. Valve keeps a constant flow, the exceeding flow goes to either tank or second function. This model is suitable to send pressure to a second line function. We have a slightly cheaper model also, that is designed for exhaust port to flow only back to tank. See other listings

Flow out of the controlled "Flow Port" can be varied between 0 and ... lit/minute depending on model. (Please select from drop down menu. )

Any remaining flow will be bypassed to the " E, Excess Flow" port

This "Excess Flow" can be used to power another circuit or it can just return to tank.

Once the "R", Regulated Flow has been adjusted and set it will remain nearly constant whether pressure changes on either the regulated or Excess flow ports.

These valves can also be used as a restrictive flow control by plugging the "Excess Flow" port.

Please be aware that if during operation the "Regulated flow" port is blocked the valve will compensate in such a way as to shut off flow to the "Exhaust port", please ensure that your pump is protected with a relief valve should this happen.

It should be noted that whenever these valves are used to bypass or restrict flow heat will be generated.

Please ensure that if oil temperature exceeds a constant 65 degrees Celsius coolers may need to be installed.

It has a 250 Bar (3750 PSI) maximum operating pressure

Once set, it maintains constant speed regardless of load variation.

Material of Construction = High pressure alloy

Also available, adaptors hose and fittings to assist in your installation please see our other listings.

or call 07 5563 1982 or send us a question

Please be aware that if during operation the "Controlled flow" port is blocked the valve will compensate in such a way as to shut off flow to the "Excess port", please ensure that your pump is protected with a relief valve should this happen.

It should be noted that whenever these valves are used to bypass or restrict flow some heat will be generated.

Please ensure that if oil temperature exceeds a constant 65 degrees Celsius coolers may need to be installed.

It has a 250 BAR (3700 PSI) maximum operating pressure

The 50 LPM valve has 3 x 3/8" Bspp ports.

The 90 LPM valve has 3 x 1/2" Bspp ports.

The 150 LPM valve has 3 x 3/4" Bspp ports.

The 190 LPM valve has 3 x 1" Bspp ports.

Once set, it maintains constant speed regardless of load variation.

Many types of adaptors threads, hydraulic hose and field fit hose fittings available please see our other listings.

This a High Quality Valve and has many outstanding features, including.

built in adjustable relief valve
high performance,
high efficiency,
mass flow,
leak resistance.
Features
Compact construction.
Long service life.
High efficiency.
