Hydraulic Adjustable Priority Flow Control Valve 30 to 114 Lt/min

Name: Hydraulic Priority Flow Control / Divider Valve 30-114 LPM
SKU: FC51G
Price: 308.0 AUD
Availability: InStock

Store/Valves for Controlling and Directing Oil Flow and Pressure/Flow Control Valves

SKU FC51G

AU$308.00

New product!

was ~~AU$424.80~~ Save 27%

Port Size and Max Flow Rate in Lt/min

Please choose

Add Relief Valve

Please choose

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

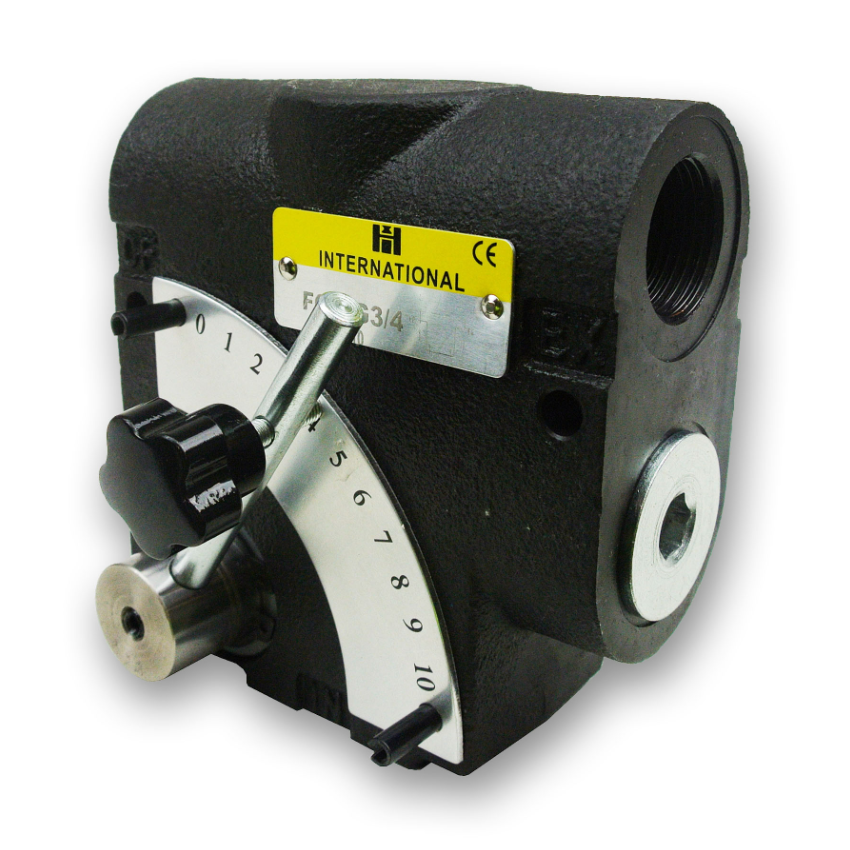

Hydraulic Adjustable Priority Flow Control Valve 30 to 114 Lt/min

Store/Valves for Controlling and Directing Oil Flow and Pressure/Flow Control Valves

Product Details

Weight: 4.50 kg

Adjustable Priority Flow Control Valve with OR without built in Relief valve 3/8" to 3/4" BSPP Ports, Flows 30 to 114 Lt/min .

Used this valve to Split One flow into Two variable adjustable flows.

Flow adjustment is made by moving a handle through a 90 degree arc whilst in operation .

Pressure rated to 200 Bar (3,000 PSI) with different flows from 30 to 114 Lt/min depending on Valve Port Sizes.

Available in with or without a relief valve & in different flow rates. Also available, adaptors hose and fittings to assist in your installation please see our other listings or call 07 55 631982 or send us a question.

Flow out of the controlled "Flow Port" can be varied between 0 and maximum design Flow.

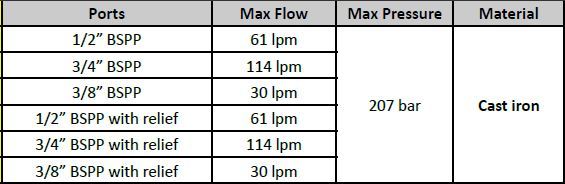

0-30 Lt/min for 3/8" BSPP Ports
0-61 Lt/min for 1/2" BSPP Ports
0- 114 Lt/min for 3/4" BSPP Ports

Any remaining flow will be bypassed to the "Excess Flow" port. This "Excess Flow" can be used to power another circuit or it can just return to tank.

Once the "Controlled Flow" has been adjusted and set it will remain nearly constant whether pressure changes on either the Controlled or Excess flow ports. These valves can also be used as a restrictive flow control by plugging the "Excess Flow" port. but # MUST have relief valve#

Please be aware that if during operation the "Controlled flow" port is blocked the valve will compensate in such a way as to shut off flow to the "Excess port", please ensure that your pump is protected with a relief valve should this happen.

It should be noted that whenever these valves are used to bypass or restrict flow heat will be generated. Please ensure that if oil temperature exceeds a constant 65 degrees Celsius coolers may need to be installed.

Flow control valves, help with pressure compensation. This valve is a pressure compensated adjustable flow control valve. By rotating the handle, the flow out the “CF,” or controlled flow port, can be varied from approximately 0 to the maximum controlled flow allowed. Any remaining flow is bypassed to the “EF” or excess flow port.

This excess flow can be used to power another circuit or can be returned to tank. Once the controlled flow is set it will remain nearly constant with variations in pressure on either the controlled or excess flow ports.

It has a 200 BAR (3,000 PSI) maximum operating pressure & if fitted with (optional) a safety relief valve, pressure it is factory set to 2,500 psi (adjustable from 750-3,000 psi)

Once set, it maintains constant speed regardless of load variation.

Specifications

Material of Construction = Steel
O-rings made of NBR (Buna-N®)
Max Flow Rate = 30 to 114 (depending on model and port size)
Max Working Pressure = 200 Bar (3,000 PSI)
Built in Relief Valve = Adjustable (factory set at 2500 PSI) (optional)
Operating temperature range: -20 °C to + 120°C
Dimensions = L x W x H = 15 x 10 x 15 cm
Weight 3.5 KG

Please call 07 5563 1982 or 1300 1 HOSES

Please send us any questions by emailing to sales@mhfgc.com.au

Many types of adaptors threads, hydraulic hose and field fit hose fittings available please see our other listings.

This a High Quality Valve and has many outstanding features, including.

Optional built in adjustable relief valve
Adjustable Variable split flows
high performance,
high efficiency,
leak resistance.

Features
Compact construction.
Long service life.
High efficiency.

IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
