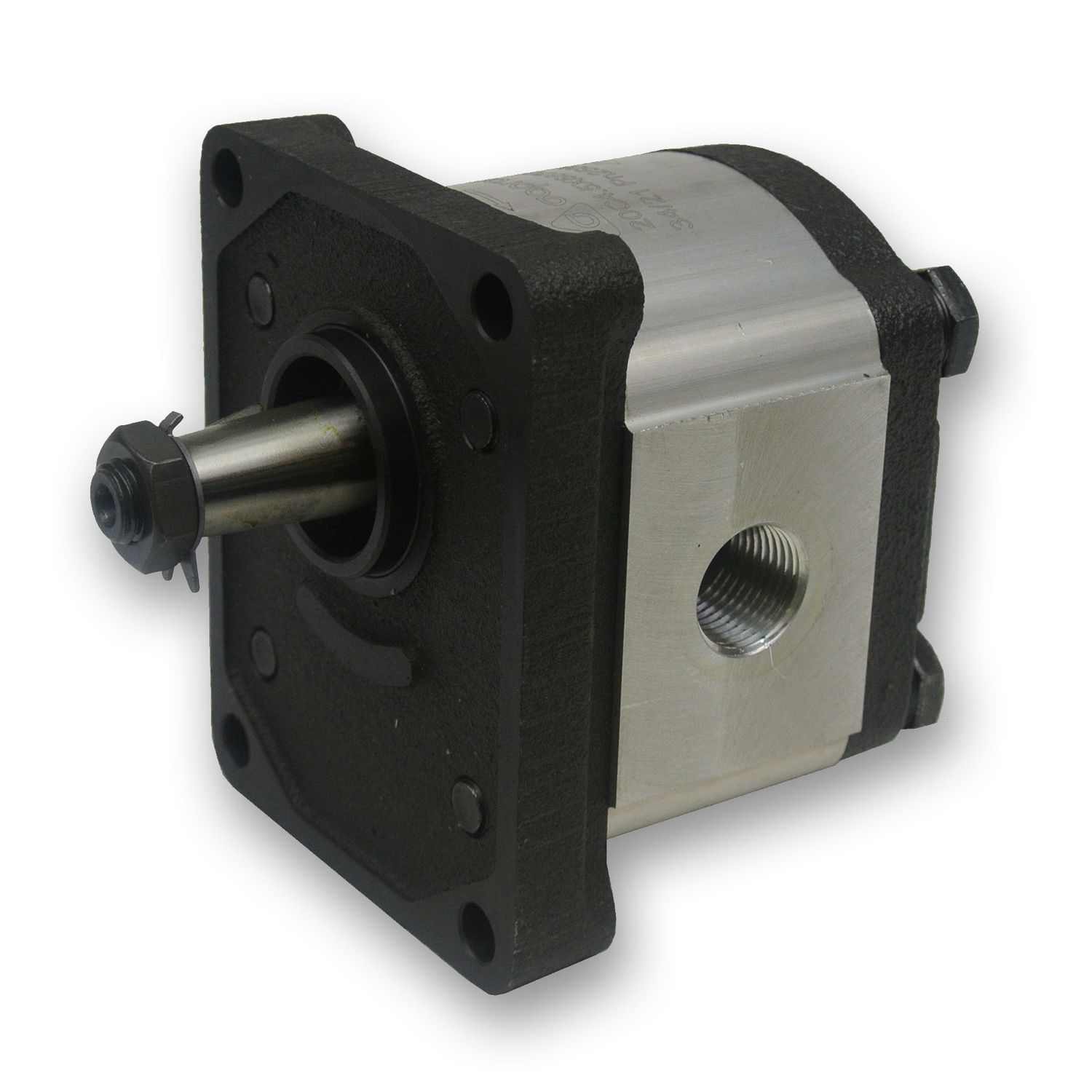

Caproni Group 2 Gear Pump 4.5 to 36cc - 4 Bolt DIN Mount, 1:8 Tapered Shaft, BSPP or Diamond Flange Ports

Name: Caproni Group 2 Gear Pump 4 Bolt DIN Mount 1:8 Taper Shaft
Brand: Caproni
SKU: 20C-SERIES
Price: 432.4 AUD
Availability: InStock

Store/Pumps, Gear, Piston, Vane, PTO Units and Gear Flow Dividers/Gear Pumps - Group 0 to Group 3/Group 2 Gear Pumps 15 to 99 Lt/min Power to 30 kW

SKU 20C4.5X687G

AU$432.40

On Sale

was ~~AU$546.00~~ Save 21%

Pump Displacement

Please choose

Port Type

Please choose

Group 2 Gear Pump - 4.5 to 36 cm3/rev - Up to 250 bar - 4 Bolt DIN Mount with 1:8 Tapered Shaft - BSPP or Diamond Flange Ports - 12-Month Warranty

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Caproni Group 2 Gear Pump 4.5 to 36cc - 4 Bolt DIN Mount, 1:8 Tapered Shaft, BSPP or Diamond Flange Ports

Store/Pumps, Gear, Piston, Vane, PTO Units and Gear Flow Dividers/Gear Pumps - Group 0 to Group 3/Group 2 Gear Pumps 15 to 99 Lt/min Power to 30 kW

Product Details

Brand: Caproni

Weight: 3.30 kg

The Caproni group 2 gear pump is the European built value line in the size that suits most Australian work. Twelve displacements from 4.5 to 36 cm3 per revolution, on either the European 4 bolt DIN mount with a 1:8 taper or the American SAE A 2 bolt mount with a keyed or splined shaft, in BSPP threaded, square flange or UN O-ring porting. This page is the clockwise 4 bolt DIN build. The factory builds the clockwise pumps on the DIN and SAE A mounts and the anti-clockwise pumps on the KHD, IHC and German mounts - every build is on its own page, all linked below.

Pick your options below and the exact factory part number appears on screen. Every choice in the dropdowns is a real catalogued part number with a firm price - nothing here is a guess.

Applications

Tipping trailers, truck bodies and hoist circuits
Log splitters and firewood processors
PTO driven pumps on tractors and trucks
Electric and engine driven power packs
Replacement pumps on European built machinery
Crane and tailgate circuits

Ways to buy this gear pump

Off the shelf: every combination in the dropdowns below is a real part number we can order today

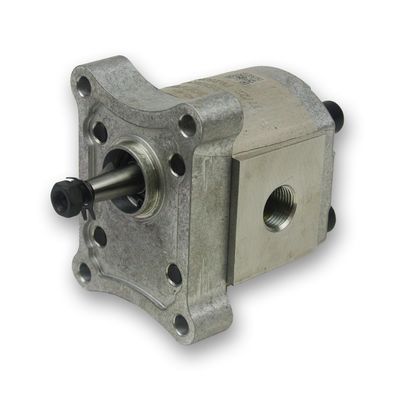

Seal kits and shaft seals: full reseal kits for this frame are on the seal kit listing linked further down - starting part number GR205-SK
Anti-clockwise (left hand rotation): KHD 2 bolt, IHC 2 bolt and German 4 bolt mounts, nine displacements from 4.5 to 25cc, flange ports - each mount is on its own page, linked below.
Tandem and multiple pumps, port adaptors and non standard shafts: all available from the factory. Call 1300 146 737 or use the enquiry form and we will code and price it
Identifying an old pump? These part numbers have been sold in Australia under the Boden or GRH names as well - the codes are the same. Send us a photo of the body and we will confirm it

Other builds in this range

This page is the clockwise 4 bolt DIN build. The same Caproni group 2 pump in the other factory mount, shaft and rotation configurations:

Caproni Group 2 - SAE A Mount, 5/8 Inch Keyed Shaft Caproni Group 2 - SAE A Mount, 5/8 Inch 9 Tooth Splined Shaft Caproni Group 2 - SAE A Mount, 17mm 10 Tooth Splined Shaft Caproni Group 2 - SAE A Mount, 3/4 Inch 11 Tooth Splined Shaft (UNO Ports)Caproni Group 2 - SAE A Mount, 3/4 Inch Keyed Shaft (UNO Ports)Caproni Group 2 - KHD 2 Bolt Mount, 1:5 Tapered Shaft Caproni Group 2 - KHD 2 Bolt Mount, 16.5mm 9 Tooth Splined Shaft Caproni Group 2 - IHC 2 Bolt Mount, 1:5 Tapered Shaft Caproni Group 2 - German 4 Bolt Mount, 1:5 Tapered Shaft Caproni Group 2 - German 4 Bolt Mount, 16.5mm 9 Tooth Splined Shaft

Pick your pump

Displacement	Ports	Part Number	Weight
4.50 cc/rev	BSPP Ports	20C4.5X687G	3.30 kg
4.50 cc/rev	Diamond Flange Ports	20C4.5X006	3.30 kg
6.30 cc/rev	BSPP Ports	20C6.3X687G	3.40 kg
6.30 cc/rev	Diamond Flange Ports	20C6.3X006	3.40 kg
8.20 cc/rev	BSPP Ports	20C8.2X687G	3.40 kg
8.20 cc/rev	Diamond Flange Ports	20C8.2X006	3.40 kg
11.3 cc/rev	BSPP Ports	20C11X016G	3.70 kg
11.3 cc/rev	Diamond Flange Ports	20C11X006	3.70 kg
14.0 cc/rev	BSPP Ports	20C14X016G	4.20 kg
14.0 cc/rev	Diamond Flange Ports	20C14X006	4.20 kg
16.0 cc/rev	BSPP Ports	20C16X016G	4.20 kg
16.0 cc/rev	Diamond Flange Ports	20C16X006	4.20 kg
19.0 cc/rev	BSPP Ports	20C19X016G	4.30 kg
19.0 cc/rev	Diamond Flange Ports	20C19X006	4.30 kg
22.0 cc/rev	BSPP Ports	20C22X016G	4.50 kg
22.0 cc/rev	Diamond Flange Ports	20C22X006	4.50 kg
25.0 cc/rev	BSPP Ports	20C25X016HG	4.90 kg
25.0 cc/rev	Diamond Flange Ports	20C25X006H	4.90 kg
28.0 cc/rev	BSPP Ports	20C28X016HG	5.00 kg
28.0 cc/rev	Diamond Flange Ports	20C28X006H	5.00 kg
32.0 cc/rev	BSPP Ports	20C32X016HG	5.30 kg
32.0 cc/rev	Diamond Flange Ports	20C32X006H	5.30 kg
36.0 cc/rev	BSPP Ports	20C36X016HG	5.40 kg
36.0 cc/rev	Diamond Flange Ports	20C36X006H	5.40 kg

Standard Supply Configuration

Bare pump - no fittings, adaptors, couplings or bell housing fitted
Mounting flange and drive shaft exactly as selected in the dropdowns above
Port sizes per the performance table for your displacement
Nitrile (NBR) seals to 22cc; HNBR seals as standard on the 25 to 36cc frames - viton is a factory option
Standard blank rear cover unless a relief cover has been quoted separately
Rotation as stated in the title - a gear pump cannot be reversed in the field

How to Order - Part Number Breakdown

Every part number on this listing decodes the same way. Worked example:

20C 11 X016G

Position	What it means
20C	Series - Caproni group 2 pump. C = clockwise rotation, A = anti-clockwise
11	Displacement in cc - 4.5, 6.3, 8.2, 11.3, 14, 16, 19, 22, 25, 28, 32, 36
X016G	Mount, shaft and port series - X687G and X016G = 4 bolt DIN 1:8 taper with BSPP ports. X006 = 4 bolt DIN 1:8 taper with square flange ports. X030G = SAE A 5/8 inch keyed, BSPP. X085G = SAE A 5/8 inch 9 tooth spline, BSPP. X104 = SAE A 5/8 inch 9 tooth spline, flange. X554G = SAE A 17.04mm 10 tooth spline, BSPP. X550H = SAE A 3/4 inch 11 tooth spline, UN O-ring. X853H = SAE A 3/4 inch keyed, UN O-ring
H	An H in the series block marks the 25 to 36cc frames, which are built with HNBR seals as standard

The 25cc and larger frames are built with HNBR (hydrogenated nitrile) seals as standard because they run hotter - that is what the H in the part number is telling you. Change the C to an A for an anti-clockwise pump - those are the KHD, IHC and German 4 bolt builds the factory makes left hand, each on its own page, linked below.

Specifications

Parameter	Value
Brand / Origin	Caproni - made in Europe
Type	External gear pump, Group 2 frame
Displacement range	4.50 to 36.0 cm3/rev
Mount and shaft options	4 bolt DIN mount with 1:8 tapered shaft, BSPP or diamond flange ports - all other mounts, shafts and rotations are on their own pages, linked below
Rotation	Clockwise, viewed from the shaft end
Seals	Nitrile (NBR) standard, viton available to order
Fluid	Mineral hydraulic oil, 20 to 100 cSt at working temperature
Filtration	25 micron or better recommended, 10 micron on continuous duty
Warranty	12 months

General Performance Data

Published factory figures. Maximum continuous pressure and speed both fall as displacement rises - always read the row for the exact part number you are buying.

4 Bolt DIN Mount - 1:8 Tapered Shaft - BSPP Ports

Part #	CC	Suction Port	Pressure Port	Max Cont. Speed (RPM)	Max Cont. Pressure (Bar)	Weight (KG)
20C4.5X687G	4.50	1/2"	1/2"	3,500	250	3.30
20C6.3X687G	6.30	1/2"	1/2"	3,500	250	3.40
20C8.2X687G	8.20	1/2"	1/2"	3,500	250	3.40
20C11X016G	11.30	3/4"	1/2"	3,500	250	3.60
20C14X016G	14.00	3/4"	1/2"	3,500	250	3.70
20C16X016G	16.00	3/4"	1/2"	2,500	250	3.80
20C19X016G	19.00	3/4"	1/2"	2,500	200	3.90
20C22X016G	22.00	3/4"	1/2"	2,000	180	4.10
20C25X016HG	25.00	3/4"	1/2"	2,500	160	4.50
20C28X016HG	28.00	1"	3/4"	2,500	130	4.60
20C32X016HG	32.00	1"	3/4"	2,000	120	4.90
20C36X016HG	36.00	1"	3/4"	2,000	100	5.00

4 Bolt DIN Mount - 1:8 Tapered Shaft - Diamond Flange Ports

Part #	CC	Suction Port	Pressure Port	Max Cont. Speed (RPM)	Max Cont. Pressure (Bar)	Weight (KG)
20C4.5X006	4.50	1/2"	1/2"	3,500	250	3.30
20C6.3X006	6.30	1/2"	1/2"	3,500	250	3.40
20C8.2X006	8.20	1/2"	1/2"	3,500	250	3.40
20C11X006	11.30	3/4"	1/2"	3,500	250	3.60
20C14X006	14.00	3/4"	1/2"	3,500	250	3.70
20C16X006	16.00	3/4"	1/2"	2,500	250	3.80
20C19X006	19.00	3/4"	1/2"	2,500	200	3.90
20C22X006	22.00	3/4"	1/2"	2,000	180	4.10
20C25X006H	25.00	3/4"	1/2"	2,500	160	4.50
20C28X006H	28.00	1"	3/4"	2,500	130	4.60
20C32X006H	32.00	1"	3/4"	2,000	120	4.90
20C36X006H	36.00	1"	3/4"	2,000	100	5.00

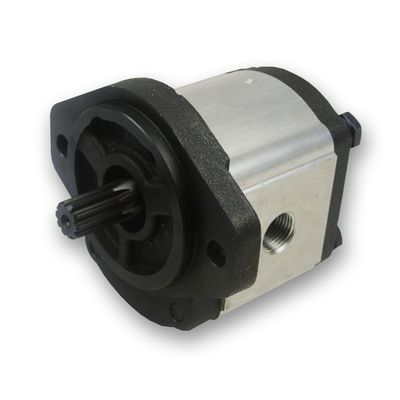

SAE A 2 Bolt Mount - 17.04mm 10 Tooth Splined Shaft - BSPP Ports

Part #	CC	Suction Port	Pressure Port	Max Cont. Speed (RPM)	Max Cont. Pressure (Bar)	Weight (KG)
20C8.2X554G	8.20	1/2"	1/2"	3,500	250	3.50
20C11X554G	11.30	3/4"	1/2"	3,500	250	3.70
20C14X554G	14.00	3/4"	1/2"	3,500	250	3.80
20C16X554G	16.00	3/4"	1/2"	2,500	250	3.90
20C19X554G	19.00	3/4"	1/2"	2,500	200	4.00
20C22X554G	22.00	3/4"	1/2"	2,000	180	4.20
20C25X554HG	25.00	3/4"	1/2"	2,500	160	4.60
20C28X554HG	28.00	1"	3/4"	2,500	130	4.70
20C32X554HG	32.00	1"	3/4"	2,000	120	5.00

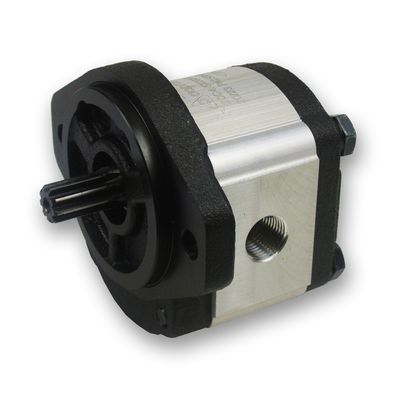

SAE A 2 Bolt Mount - 5/8 inch 9 Tooth Splined Shaft - BSPP Ports

Part #	CC	Suction Port	Pressure Port	Max Cont. Speed (RPM)	Max Cont. Pressure (Bar)	Weight (KG)
20C4.5X085G	4.50	1/2"	1/2"	3,500	250	3.40
20C6.3X085G	6.30	1/2"	1/2"	3,500	250	3.50
20C8.2X085G	8.20	1/2"	1/2"	3,500	250	3.50
20C11X085G	11.30	3/4"	1/2"	3,500	250	3.70
20C14X085G	14.00	3/4"	1/2"	3,500	250	3.80
20C16X085G	16.00	3/4"	1/2"	2,500	250	3.90
20C19X085G	19.00	3/4"	1/2"	2,500	200	4.00
20C22X085G	22.00	3/4"	1/2"	2,000	180	4.20
20C25X085HG	25.00	3/4"	1/2"	2,500	160	4.60
20C28X085HG	28.00	1"	3/4"	2,500	130	4.70
20C32X085HG	32.00	1"	3/4"	2,000	120	5.00
20C36X085HG	36.00	1"	3/4"	2,000	100	5.10

SAE A 2 Bolt Mount - 5/8 inch 9 Tooth Splined Shaft - Flange Ports

Part #	CC	Suction Port	Pressure Port	Max Cont. Speed (RPM)	Max Cont. Pressure (Bar)
20C4.5X104	4.50	G206	G205	3,500	250
20C6.3X104	6.30	G206	G205	3,500	250
20C8.2X104	8.20	G206	G205	3,500	250
20C11X104	11.00	G206	G205	3,500	250
20C14X104	14.00	G206	G205	3,500	250
20C16X104	16.00	G206	G205	2,500	250
20C19X104	19.00	G206	G205	2,500	200
20C22X104	22.00	G206	G205	2,000	180
20C25X104H	25.00	G206	G205	2,500	160

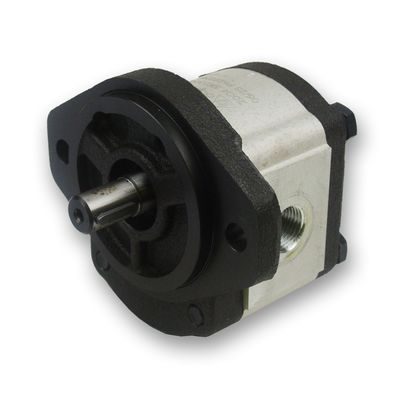

SAE A 2 Bolt Mount - 5/8 inch Keyed Shaft - BSPP Ports

Part #	CC	Suction Port	Pressure Port	Max Cont. Speed (RPM)	Max Cont. Pressure (Bar)	Weight (KG)
20C4.5X030G	4.50	1/2"	1/2"	3,500	250	3.40
20C6.3X030G	6.30	1/2"	1/2"	3,500	250	3.50
20C8.2X030G	8.20	1/2"	1/2"	3,500	250	3.50
20C11X030G	11.30	3/4"	1/2"	3,500	250	3.70
20C14X030G	14.00	3/4"	1/2"	3,500	250	3.80
20C16X030G	16.00	3/4"	1/2"	2,500	250	3.90
20C19X030G	19.00	3/4"	1/2"	2,500	200	4.00
20C22X030G	22.00	3/4"	1/2"	2,000	180	4.20
20C25X030HG	25.00	3/4"	1/2"	2,500	160	4.60
20C28X030HG	28.00	1"	3/4"	2,500	130	4.70
20C32X030HG	32.00	1"	3/4"	2,000	120	5.00
20C36X030HG	36.00	1"	3/4"	2,000	100	5.10

SAE A 2 Bolt Mount - 3/4 inch 11 Tooth Splined Shaft - UN O-Ring Ports

Part #	CC	Suction Port	Pressure Port	Max Cont. Speed (RPM)	Max Cont. Pressure (Bar)	Weight (KG)
20C14X550HDU	14.00	1.1/16"	7/8"	3,500	250	4.20
20C16X550HDU	16.00	1.1/16"	7/8"	3,500	250	4.20
20C19X550HDU	19.00	1.1/16"	7/8"	3,500	230	4.30
20C22X550HDU	22.00	1.1/16"	7/8"	3,500	200	4.50
20C25X550HDU	25.00	1.1/16"	7/8"	3,500	200	4.90
20C28X550HDU	28.00	1.5/16"	1.1/16"	2,500	170	5.00
20C32X550HDU	32.00	1.5/16"	1.1/16"	2,500	150	5.30
20C36X550HDU	36.00	1.5/16"	1.1/16"	2,500	120	5.40

SAE A 2 Bolt Mount - 3/4 inch Keyed Shaft - UN O-Ring Ports

Part #	CC	Suction Port	Pressure Port	Max Cont. Speed (RPM)	Max Cont. Pressure (Bar)	Weight (KG)
20C14X853HDU	14.00	1.1/16"	7/8"	3,500	250	4.20
20C16X853HDU	16.00	1.1/16"	7/8"	3,500	250	4.20
20C19X853HDU	19.00	1.1/16"	7/8"	3,500	230	4.30
20C22X853HDU	22.00	1.1/16"	7/8"	3,500	200	4.50
20C25X853HDU	25.00	1.1/16"	7/8"	3,500	200	4.90
20C28X853HDU	28.00	1.5/16"	1.1/16"	2,500	170	5.00
20C32X853HDU	32.00	1.5/16"	1.1/16"	2,500	150	5.30
20C36X853HDU	36.00	1.5/16"	1.1/16"	2,500	120	5.40

How to choose

Work out the flow you need first. Litres per minute = displacement in cc x rpm divided by 1000, then take off 5 to 10 percent for slip. A 1,450 rpm electric motor on a 16.8cc pump gives roughly 23 L/min.
Then check the pressure. Continuous pressure falls as displacement rises on every gear pump frame. Read the performance table for the exact displacement you are choosing, not the headline figure.
Match the mount and shaft to the machine. 4 bolt DIN with a 1:8 taper is the European standard. SAE 2 bolt with a keyed or splined shaft is the American standard and is what most Australian bell housings, gearboxes and couplings expect.
Confirm rotation from the shaft end. Gear pumps cannot be reversed in the field. Look at the shaft coming towards you and note which way it turns.
Check the power available. kW = flow in L/min x pressure in bar divided by 600, then divide by about 0.85 for efficiency. There is no point specifying a pump the engine or motor cannot turn.
Not sure? Call 1300 146 737 with your drive speed, the flow you want, the pressure and a photo of the old pump. We do this every day.

Official Datasheets

Full factory technical data for the whole Caproni gear pump range - dimensions, performance tables, shaft and flange drawings, order code charts and seal kit references.

📄 Download the Caproni Gear Pump Range Datasheet (PDF)

Technicians Advice

Read the pressure column, not the headline. Continuous pressure on this frame falls from 250 bar at 4.5cc to 100 bar at 36cc, and maximum speed falls from 3,500 to 2,000 rpm. The performance tables below are per displacement for exactly that reason.
Seals change with size. The 25cc and larger frames come with HNBR seals as standard because they run hotter. If you are ordering a seal kit for one of those, say so - a plain nitrile kit will not last in it.
Size the relief for full pump flow. A 36cc pump at 1,450 rpm is about 50 litres a minute. The relief has to pass all of it at the set pressure or the pressure will climb straight past the setting.
Match the mount properly. 4 bolt DIN with a 1:8 taper is the European standard and needs a taper hub. SAE A 2 bolt with a keyed or splined shaft is the American standard and is what most Australian gearboxes, bell housings and couplings expect. They are not interchangeable.
UN O-ring ports are not BSPP. The 3/4 inch shaft pumps come with UN O-ring boss ports. Do not wind a BSPP fitting into them - you will damage the port and it will still leak.
Cavitation looks like wear. Frosted, pitted gear faces and a rattling pump mean air, not age. Fix the suction before you fit a new pump or you will buy two.

Warranty and Service

12-month warranty on every pump. If you are identifying an existing pump, photograph every number cast or stamped on the body and the shaft end and send it through with your enquiry - gear pump part numbers are long and one letter changes the shaft or the rotation.

Complete your setup

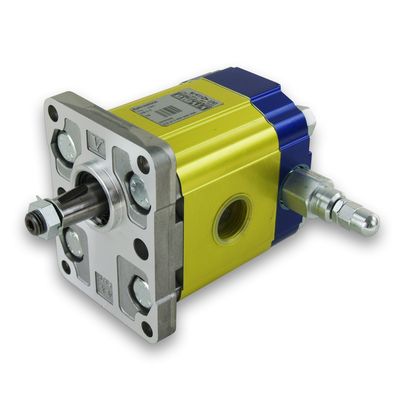

Want the pump to protect its own circuit? A rear cover with an integrated relief valve is available for this frame in three pressure bands - no separate relief valve or manifold needed.

Add an Integrated Relief Valve Rear Cover

Seal kits, the other frame sizes in this range, the same group from our other brand, and the gear motor that shares this frame:

Buy the Seal Kit for This Pump Caproni Group 1 Gear Pump Caproni Group 3 Gear Pump Compare - Vivoil Group 2 Gear Pump Matching Gear Motor - Same Group Browse All Gear Pumps

Fitting out a fleet or buying several? Call us and we will work out freight and lead time on the whole lot.
