Hose Tail One Piece BSP Tapered Male Straight - Gates
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Hydraulic Hose Fittings Straight, 90° & 45°/BSP One Piece Hose Tails - Gates
Product Details
Brand: Gates
Weight: 0.10 kg

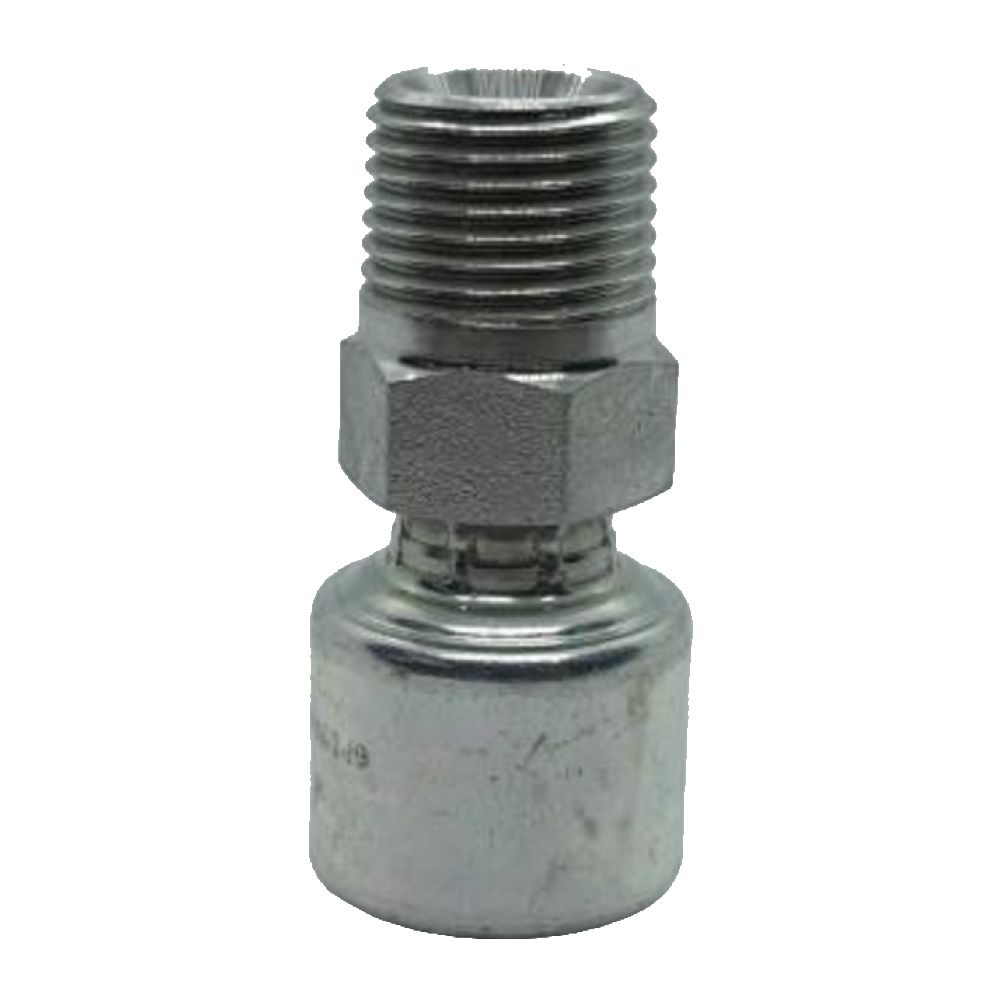

Gates One Piece Bsp Tapered Male Hydraulic Hose Tail
Genuine Gates one piece BSP tapered male hydraulic hose fitting, engineered for SAE 100R1 (1 wire) and 100R2 (2 wire) braided hydraulic hose. This MegaCrimp® one piece coupling crimps directly onto the hose with no separate ferrule required – a tapered thread seal on a BSPT tapered male connection for a certified, leak-free seal every time.
Built for excavators, tractors, skid steers, loaders, agricultural and construction machinery and everyday hydraulic repairs. Precision CNC-formed, zinc-plated carbon steel for corrosion resistance and crimped to genuine Gates specifications.
Why buy from Hydraulic.Online?
- 100% genuine Gates MegaCrimp one piece coupling – not an import copy
- Suits 1 & 2 wire braided hydraulic hose (SAE 100R1/R2, EN853)
- No ferrule required – faster, stronger one piece crimp
- Full size range – select your hose & thread size above
- Bulk discounts applied automatically – buy more, save more
- Fast dispatch Australia-wide from our Australian warehouse
Need help matching the right Gates BSP tapered male fitting, ferrule or hose? Contact the Hydraulic.Online team before you buy. Crimp dimensions available as a downloadable Gates crimp chart on request.
Specifications
| Size | Our SKU | Gates Part No | Gates Code | Barcode | L (mm) | Cut-off (mm) | Hex (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| (04) 1/4" x (02) 1/8" | HTO-BTM-0402-GA | 4G-2FP | G25110-0402 | 72053171631 | 44.2 | 18.3 | — | 0.12 |
| (04) 1/4" x (04) 1/4" | HTO-BTM-0404-GA | 4G-4FP | G25110-0404 | 72053322842 | 50.3 | 24.4 | — | 0.13 |
| (04) 1/4" x (06) 3/8" | HTO-BTM-0406-GA | 4G-6FP | G25110-0406 | 72053173017 | 50.3 | 24.4 | — | 0.14 |
| (06) 3/8" x (06) 3/8" | HTO-BTM-0606-GA | 6G-6FP | G25110-0606 | — | — | — | — | — |
| (06) 3/8" x (08) 1/2" | HTO-BTM-0608-GA | 6G-8FP | G25110-0608 | 72053173024 | 56.9 | 29 | — | 0.21 |
| (08) 1/2" x (06) 3/8" | HTO-BTM-0806-GA | 8G-6FP | G25110-0806 | 72053407747 | 62.5 | 24.9 | — | 0.25 |
| (08) 1/2" x (08) 1/2" | HTO-BTM-0808-GA | 8G-8FP | G25110-0808 | 72053322866 | 66.8 | 29.5 | — | 0.30 |
| (08) 1/2" x (12) 3/4" | HTO-BTM-0812-GA | 8G-12MP | G25100-0812 | 72053322675 | — | — | — | — |
| (10) 5/8" x (10) 5/8" | HTO-BTM-1010-GA | 10G-10MBSPT | G25795-1010 | 770075614098 | — | — | — | — |
| (12) 3/4" x (12) 3/4" | HTO-BTM-1212-GA | 12G-12FP | G25110-1212 | 72053322873 | 81.8 | 31 | — | 0.55 |
| (16) 1" x (16) 1" | HTO-BTM-1616-GA | 16G-16FPX | G25111-1616 | 72053172973 | 104.1 | 47.5 | — | 1.10 |
