Hose Tail One Piece Metric Heavy Female Straight - Gates
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Medium Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°/Metric One Piece Hose Tails - Gates
SKU HTO-MHF-0414-GA
AU$15.77
Bulk pricing available for quantities of 5 units or more
Size
Please choose
In stock
1
Buy more, save more
| Quantity | Price per item | Discount |
| 5 items | AU$14.98 | 5% off |
| 10 items | AU$14.19 | 10% off |
| 25 items | AU$13.80 | 12% off |
| 50 items | AU$13.40 | 15% off |
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Hose Tail One Piece Metric Heavy Female Straight - Gates
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Medium Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°/Metric One Piece Hose Tails - Gates
Product Details
Brand: Gates
Weight: 0.10 kg

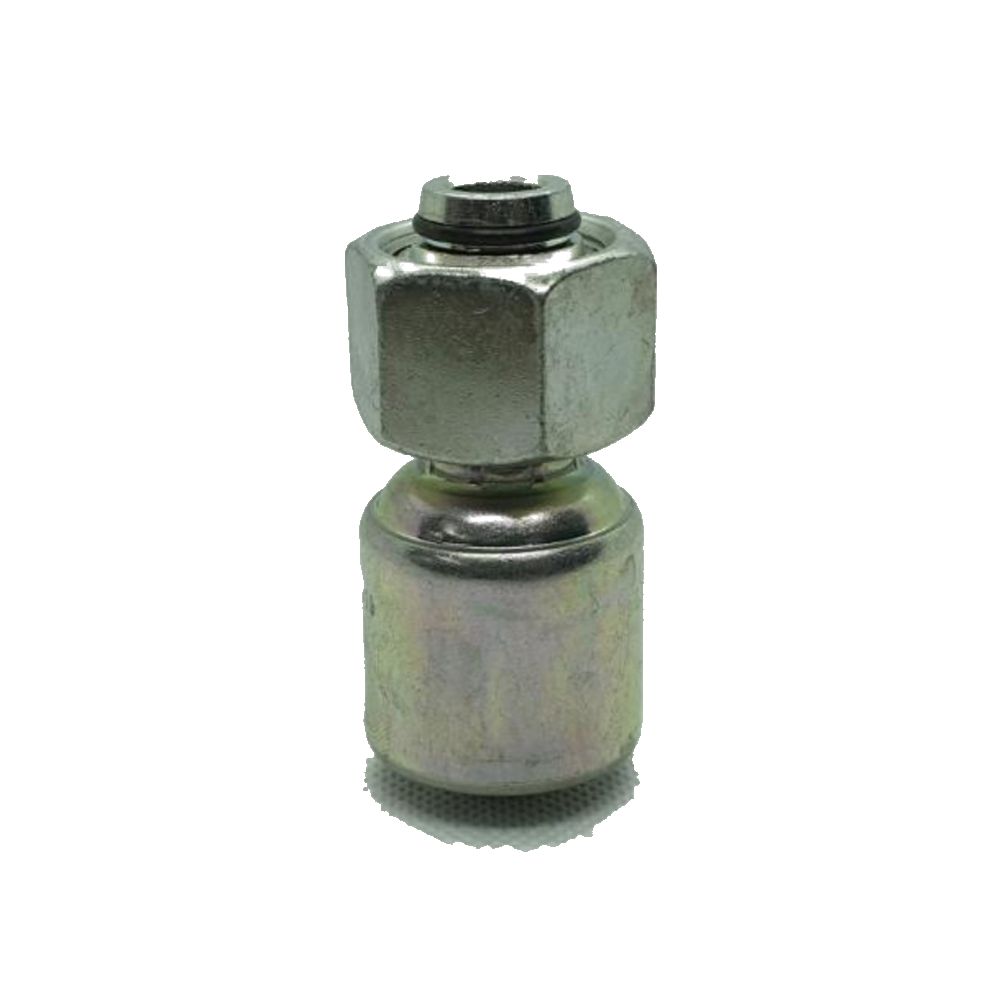

Gates One Piece Metric Din Heavy Female Swivel Hydraulic Hose Tail
Genuine Gates one piece metric DIN heavy female swivel hydraulic hose fitting for SAE 100R1 (1 wire) & 100R2 (2 wire) braided hydraulic hose. MegaCrimp® one piece design crimps straight onto the hose – no ferrule required – with a 24° DIN cone seat for a certified, leak-free seal.
Ideal for European and Asian machinery – excavators, tractors, loaders and construction equipment. Precision CNC-formed, zinc-plated carbon steel, crimped to genuine Gates specifications.
Why buy from Hydraulic.Online?
- 100% genuine Gates MegaCrimp one piece coupling
- Suits 1 & 2 wire braided hose
- No ferrule required
- Full size range – select above
- Bulk discounts auto-applied
- Fast dispatch Australia-wide
Need help choosing? Contact Hydraulic.Online. Gates crimp chart available to download.
Gates Part Numbers & Specifications
| Size | Our SKU | Gates Part No | Gates Code | Barcode | L (mm) | Cut-off (mm) | Hex (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| (04) 1/4" x M14 | HTO-MHF-0414-GA | — | — | — | — | — | — | — |
| (04) 1/4" x M16 | HTO-MHF-0416-GA | 4G-8FDHORX | G25720-0408 | 72053173123 | — | — | — | 0.15 |
| (04) 1/4" x M18 | HTO-MHF-0418-GA | 4G-10FDHORX | G25720-0410 | 72053206135 | — | — | — | 0.18 |
| (04) 1/4" x M20 | HTO-MHF-0420-GA | 4G-12FDHORX | G25720-0412 | 72053940053 | — | — | — | 0.20 |
| (06) 3/8" x M18 | HTO-MHF-0618-GA | 6G-10FDHORX | G25720-0610 | 72053676228 | — | — | — | 0.20 |
| (06) 3/8" x M20 | HTO-MHF-0620-GA | 6G-12FDHORX | G25720-0612 | 72053173130 | — | — | — | 0.25 |
| (06) 3/8" x M22 | HTO-MHF-0622-GA | 6G-14FDHORX | G25720-0614 | 72053206159 | — | — | — | 0.28 |
| (08) 1/2" x M20 | HTO-MHF-0820-GA | 8G-12FDHORX | G25720-0812 | 72053531145 | — | — | — | 0.31 |
| (08) 1/2" x M22 | HTO-MHF-0822-GA | 8G-14FDHORX | G25720-0814 | 72053844757 | — | — | — | 0.33 |
| (08) 1/2" x M24 | HTO-MHF-0824-GA | 8G-16FDHORX | G25720-0816 | 72053172324 | — | — | — | 0.40 |
| (10) 5/8" x M24 | HTO-MHF-1024-GA | 10G-16FDHORX | G25720-1016 | 770075614074 | — | — | — | 0.45 |
| (10) 5/8" x M30 | HTO-MHF-1030-GA | 10G-20FDHORX | G25720-1020 | 72053206166 | — | — | — | 0.57 |
| (12) 3/4" x M30 | HTO-MHF-1230-GA | 12G-20FDHORX | G25720-1220 | 72053206234 | — | — | — | 0.75 |
| (12) 3/4" x M36 | HTO-MHF-1236-GA | 12G-25FDHORX | G25720-1225 | 72053206241 | — | — | — | 1.06 |
| (16) 1" x M36 | HTO-MHF-1636-GA | 16G-25FDHORX | G25720-1625 | 72053571875 | — | — | — | 1.35 |
| (16) 1" x M42 | HTO-MHF-1642-GA | 16G-30FDHORX | G25720-1630 | 72053438161 | — | — | — | 1.44 |
